WR-ADPT BNC to BNC

EXTENDED
WR-ADPT BNC to BNC

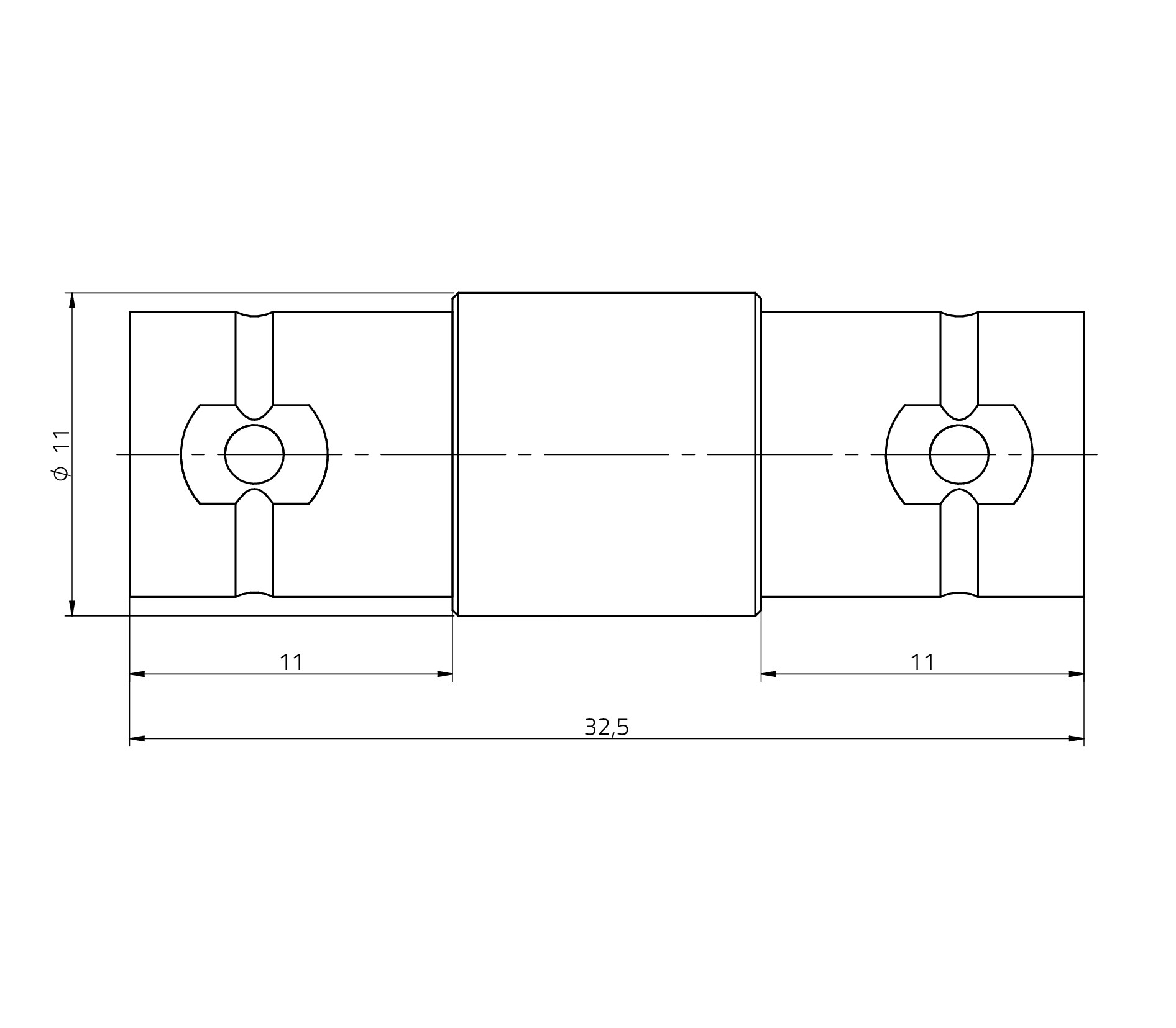

SizeDimen­sions
EXT.BNC Straight Jack | BNC Straight Jack

Characteristics

  • Interface: MIL-STD-348
  • Mating Cycle: 200 Cycles
  • Impedance: 50Ω
  • Plating: Nickel and Gold
  • Mating: Bayonet lock

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • High power machinery
  • Outdoor or humidity environment

Products

BNC Straight Jack | BNC Straight Jack
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Gender 1
Connector Type 2
Gender 2
f
Operating Temperature
Samples
WR-ADPT BNC to BNC
64407107111000
BNC, Jack, BNC
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Connector Type 1BNC
Gender 1Jack
Connector Type 2BNC
Gender 2Jack
Frequency RangeDC~4 GHz
Operating Temperature -40 °C up to +85 °C

Mates with

WR-BNC BNC PCB Connectors
