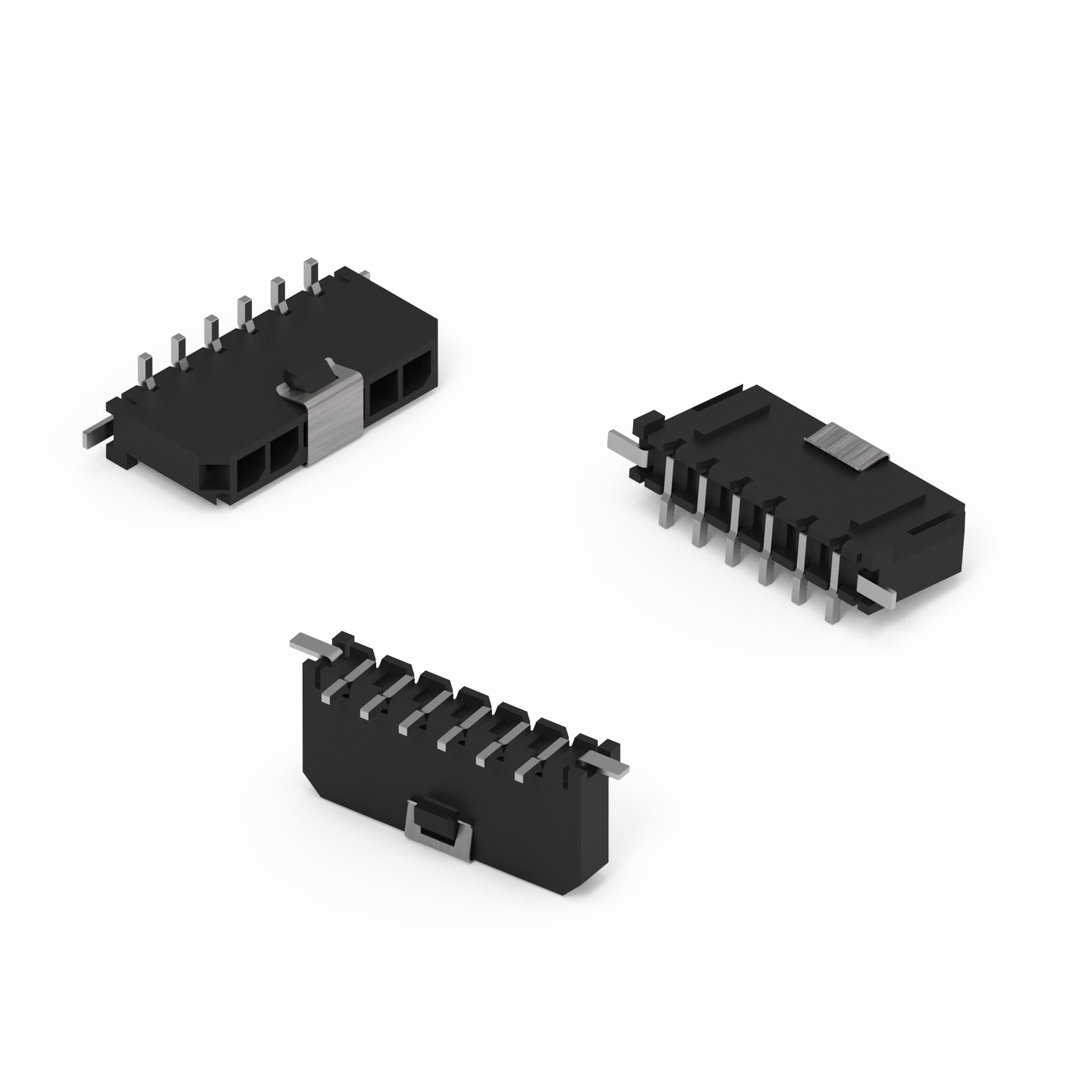

WR-MPC3 3.00mm Male Header Single Row Vertical with SMT Solder Tabs - SMT - Reel - Selective Gold

General Informations
Pitch	3 mm
Rows	Single
Type	Vertical
Operating Temperature	-40 °C up to +105 °C
Durability	75 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tape and Reel with Cap

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Selective Gold

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Samples
662302131824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662302131824_3D (rev1).pdf \| 79.2 KB IGS 662302131824_IGS (rev1).igs \| 1.3 MB STP 662302131824_STP (rev1).stp \| 318.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3	Male	Vertical	Single	SMT	5	250	10	Selective Gold	Tape and Reel with Cap
662304131824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662304131824_3D (rev1).pdf \| 94.3 KB IGS 662304131824_IGS (rev1).igs \| 1.6 MB STP 662304131824_STP (rev1).stp \| 387.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3	Male	Vertical	Single	SMT	5	250	10	Selective Gold	Tape and Reel with Cap
662306131824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662306131824_3D (rev1).pdf \| 110.1 KB IGS 662306131824_IGS (rev1).igs \| 1.9 MB STP 662306131824_STP (rev1).stp \| 453.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	3	Male	Vertical	Single	SMT	5	250	10	Selective Gold	Tape and Reel with Cap
662308131824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662308131824_3D (rev1).pdf \| 124.3 KB IGS 662308131824_IGES (rev1).iges \| 2.2 MB STP 662308131824_STP (rev1).stp \| 1008.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	3	Male	Vertical	Single	SMT	5	250	10	Selective Gold	Tape and Reel with Cap
662310131824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662310131824_3D (rev1).pdf \| 139 KB IGS 662310131824_IGES (rev1).iges \| 2.5 MB STP 662310131824_STP (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3	Male	Vertical	Single	SMT	5	250	10	Selective Gold	Tape and Reel with Cap

Order Code	Datasheet
662302131824	SPEC
662304131824	SPEC
662306131824	SPEC
662308131824	SPEC
662310131824	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Single Row
