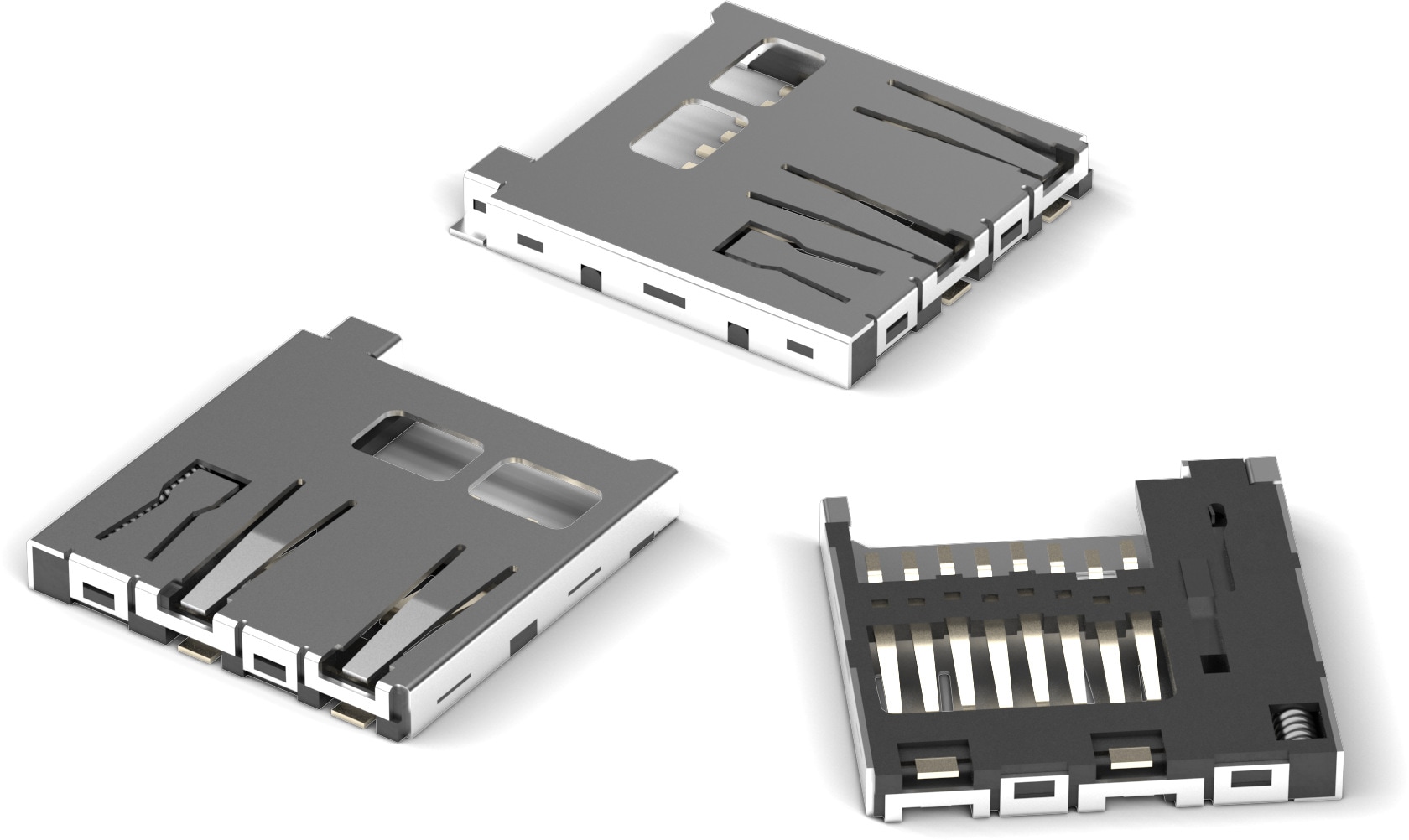

WR-CRD SD Card Connectors

Size	Dimensions	Mount
EXT.Micro SD		SMT
SD		SMT
SD 4.0		SMT

Characteristics

Available in two form factors: SD and MicroSD
Available in three entry types: Push-Pull, Hinge and Push-Push
SD 4.0 available in SD form factor for higher transfer speed

Applications

Single-board computers
Surveillance systems
Industrial data logging
Consumer Electronics
Drones

Products

All

Micro SD

SD

SD 4.0

Filter article data

show article in 3 product lines

article in 3 product lines

Order Code	Datasheet	Downloads	Status	Pins	Gender	Type	Variant	Mount	Operating Temperature	Durability	Design Kit	SamplesAvailability & Sample
693072010801	SPEC8, Receptacle, Hinge	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 693072010801 (rev1).pdf \| 247.6 KB IGS 693072010801 (rev1).iges \| 3 MB STP 693072010801 (rev1).stp \| 663.1 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	GenderReceptacle	TypeHinge	–	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit 612690 614001	–Check availability
693071010811	SPEC8, Receptacle, Push & Push	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 3D_693071010811 (rev1).pdf \| 1.2 MB IGS Download_IGS_693071010811 (rev1).igs \| 4.9 MB STP Download_STP_693071010811 (rev1).stp \| 2.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	GenderReceptacle	TypePush & Push	Variantwith Card Detection	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit 612690 614001	–Check availability
693071030811	SPEC8, Receptacle, Push & Push	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D Download_3D_693071030811 (rev1).pdf \| 1.5 MB IGS Download_IGES_693071030811 (rev1).iges \| 12.8 MB STP Download_STEP_693071030811 (rev1).stp \| 2.7 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	GenderReceptacle	TypePush & Push	Variantwith Card Detection	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit –	–Check availability
693070010811	SPEC8, Receptacle, Push & Pull	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 693070010811_3D (rev1).pdf \| 111.2 KB IGS 693070010811 (rev1).igs \| 1.9 MB STP 693070010811 (rev1).stp \| 440.8 KB Download all 6 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Pins8	GenderReceptacle	TypePush & Pull	–	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit –	–Check availability
693063010911	SPEC9, Socket, Push & Pull	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 693063010911_1 (rev1).pdf \| 364.8 KB IGS 693063010911 (rev1).iges \| 5.4 MB STP 693063010911 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	GenderSocket	TypePush & Pull	Variantwith Card Detection	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit 612690 614001	–Check availability
693061010911	SPEC9, Receptacle, Push & Push	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 693061010911_1 (rev1).pdf \| 1 MB IGS 693061010911 (rev1).iges \| 5.5 MB STP 693061010911 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	GenderReceptacle	TypePush & Push	Variantwith Card Detection	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit 612690 614001	–Check availability
693071020811	SPEC9, Socket, Push & Push	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D Download_3D_693071020811 (rev1).pdf \| 1.5 MB IGS Download_IGES_693071020811 (rev1).iges \| 12.7 MB STP Download_STEP_693071020811 (rev1).stp \| 2.7 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	GenderSocket	TypePush & Push	Variantwith Card Detection	MountSMT	Operating Temperature -40 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit –	–Check availability
693071040911	SPEC9, Receptacle, Push & Push	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 693071040911_3D (rev1).pdf \| 1.2 MB IGS 693071040911 (rev1).igs \| 5.9 MB STP 693071040911 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Pins9	GenderReceptacle	TypePush & Push	–	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit –	–Check availability
693063020911	SPEC11, Receptacle, Push & Pull	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 693063020911_1 (rev1).pdf \| 373.1 KB IGS 693063020911 (rev1).iges \| 5.3 MB STP 693063020911 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	GenderReceptacle	TypePush & Pull	Variantwith Card Detection	MountSMT	Operating Temperature -25 °C up to +85 °C	Durability10 000 Mating cycles	Design Kit 612690 614001	–Check availability
693161011911	SPEC19, Receptacle, Push & Pull	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev25b).IntLib \| 5.7 MB CDS Cadence_WR-CRD (rev25c).zip \| 33.1 MB EAG Eagle_WR-CRD (rev25b).lbr \| 175.4 KB CAD files ZIP 3D 3D_693161011911 (rev1).pdf \| 2.5 MB IGS Download_IGES_693161011911 (rev1).iges \| 9.6 MB STP Download_STP_693161011911 (rev1).stp \| 2.4 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	GenderReceptacle	TypePush & Pull	Variantwith Card Detection	MountSMT	Operating Temperature -20 °C up to +60 °C	Durability10 000 Mating cycles	Design Kit 612690	–Check availability
