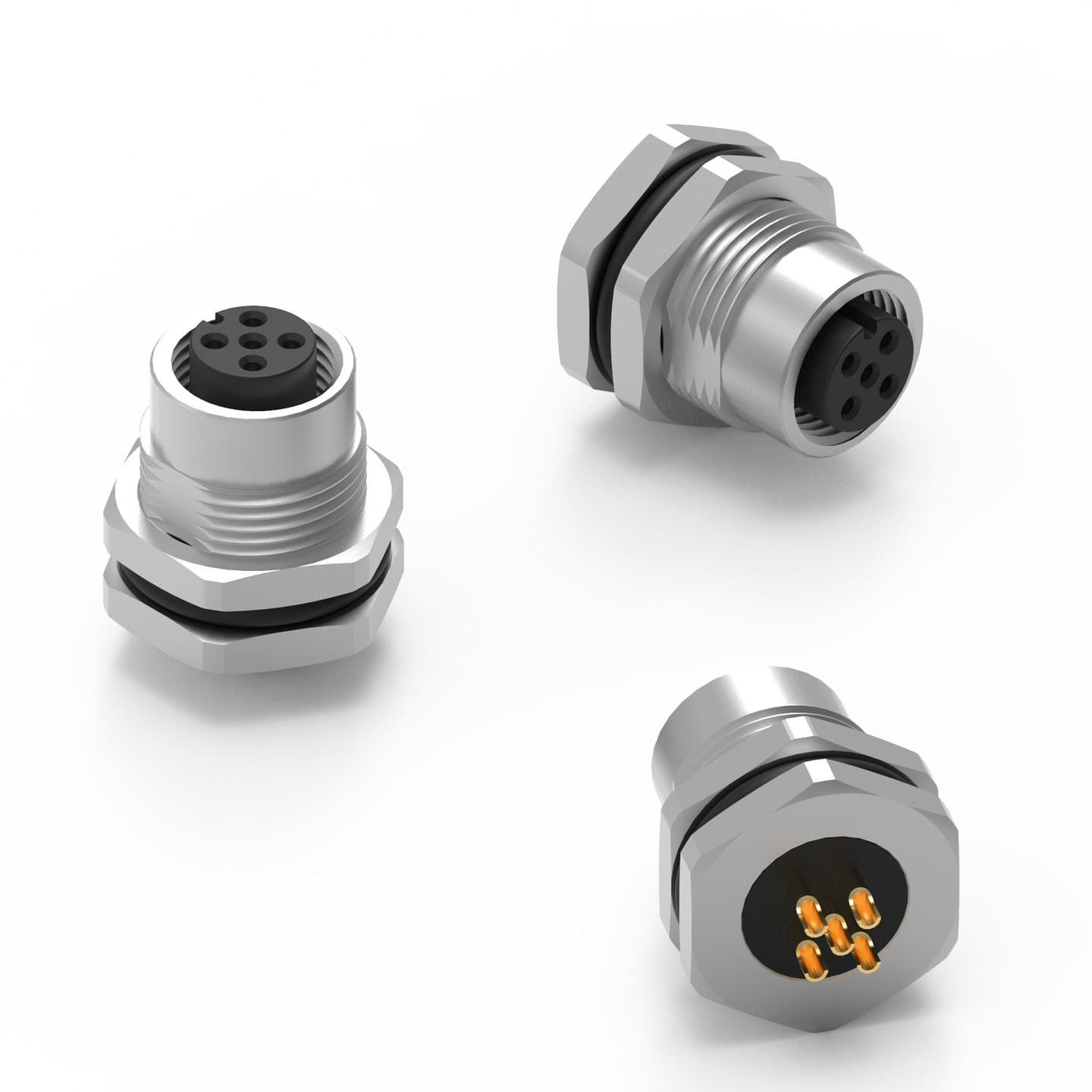

WR-CIRCM12 Screw Mating Panel Connector Solder Bucket Female Metal Front Nut PG9

General Information
Durability	100 Mating cycles
Ingress Protection Code	IP68
Operating Temperature	-40 °C up to +90 °C
Gender	Female

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold

Electrical Properties
I_R	2 A; 5 A
Working Voltage	30 V; 60 V; 250 V
Withstanding Voltage	650 V (AC); 1000 V (AC); 1400 V (AC)
Contact Resistance Initial	10 mΩ
R_ISO	100 MΩ

Products

Order Code	Datasheet	Downloads	Polarity	Gender	I_R (A)	Working Voltage (V)	Withstanding Voltage (V (AC))	Packaging	Design Kit	Samples
643160100605	SPEC	3 files CAD files ZIP 3D 3D_643160100605 (rev1).pdf \| 1.4 MB IGS IGS_643160100605 (rev1).igs \| 3.7 MB STP STP_643160100605 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	5	Female	5	60	1000	Tray	–
643160100604	SPEC	3 files CAD files ZIP 3D 3D_643160100604 (rev1).pdf \| 1.4 MB IGS IGS_643160100604 (rev1).igs \| 3.7 MB STP STP_643160100604 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	4	Female	5	250	1400	Tray	–
643160100608	SPEC	3 files CAD files ZIP 3D 3D_643160100608 (rev1).pdf \| 1.4 MB IGS IGS_643160100608 (rev1).igs \| 3.8 MB STP STP_643160100608 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	8	Female	2	30	650	Tray	612690

Order Code	Datasheet
643160100605	SPEC
643160100604	SPEC
643160100608	SPEC

Samples

Order Code	Datasheet	Downloads	Polarity	Gender	I_R (A)	Working Voltage (V)	Withstanding Voltage (V (AC))	Packaging	Design Kit	Samples

Mates with

WR-CIRCM12 Screw Mating Cable Assembly Straight Metal Coupling Nut

WR-CIRCM12 Screw Mating Cable Assembly Male Angled Metal Coupling Nut

WR-CIRCM12 Screw Mating Cable Assembly Straight Metal Coupling Nut Shielded

WR-CIRCM12 Screw Mating Field Attachable Solder Bucket Male Metal Coupling Nut

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
