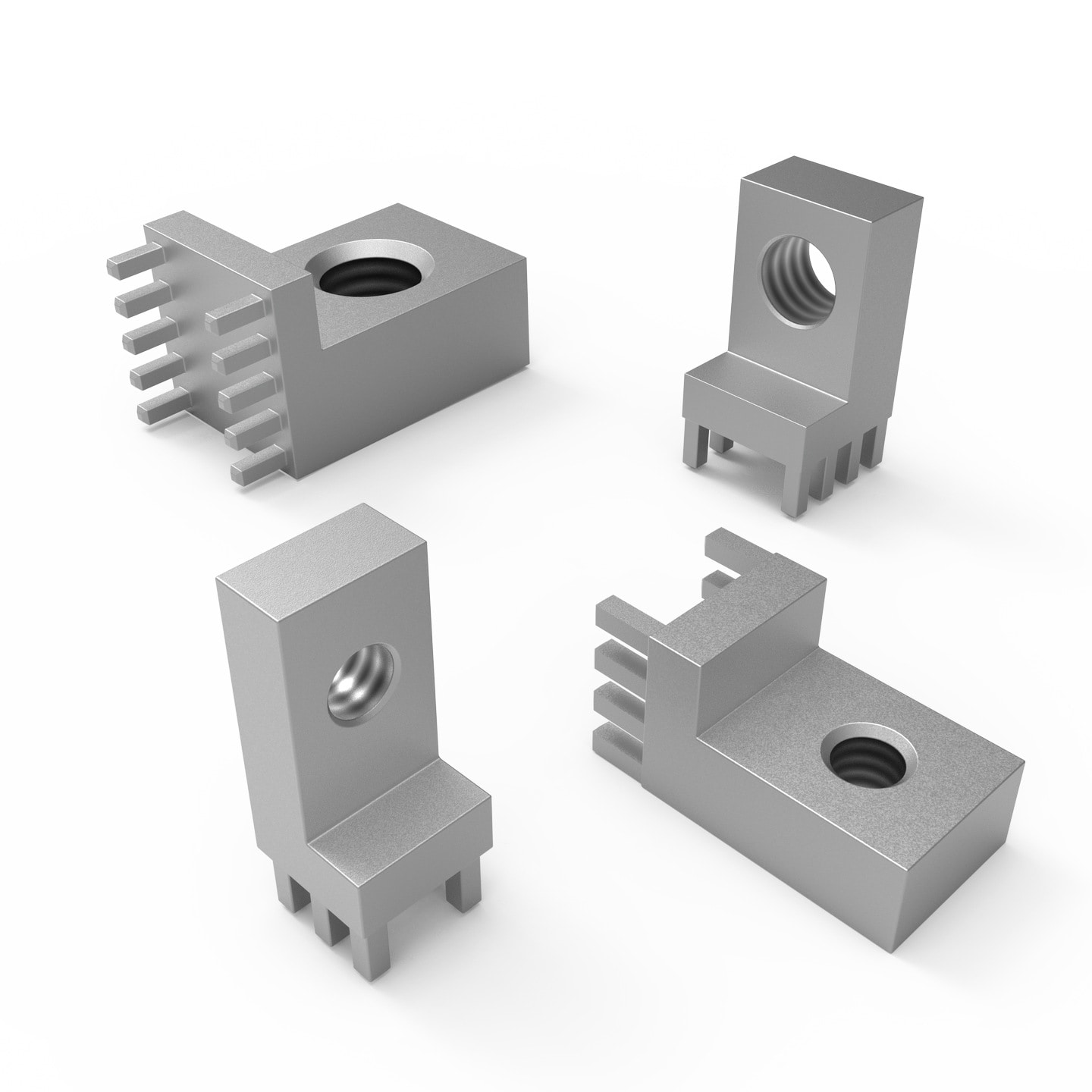

WP-RATR REDCUBE PRESS-FIT right angled, two-rows

Applications

High current Wire-to-Board & Board-to-Board connections
Angled electrical connection of cable or PCBs
Angled mechanical assembling of PCBs on housings
Suitable for rough environmental conditions

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Brass
Surface	Tin
Execution	Press-Fit

Packaging Properties
Packaging	Bulk; Tray

Application Notes

Press-Fit Technology
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	W(mm)	H(mm)	I_R(A)	T_i	Ø ID(mm)	T_l(mm)	Pins	I_R(A)	Design Kit
7461101		Downloads5 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP STP 7461101 (rev1).stp \| 130 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width7 mm	Height14 mm	Rated Current100 A	Inner ThreadM3	–	Thread Length4 mm	Pins6	Rated Current100 A	Design Kit –
7461062		Downloads5 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP STP 7461062 (rev1).stp \| 130 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width7 mm	Height14 mm	Rated Current100 A	–	Inner Diameter3.2 mm	–	Pins6	Rated Current100 A	Design Kit –
7461063	9 mm, 14 mm, 160 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D Download_3D_7461063 (rev1).pdf \| 41.5 KB IGS Download_IGS_7461063 (rev1).igs \| 419.2 KB STP 7461063 (rev1).stp \| 166 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width9 mm	Height14 mm	Rated Current160 A	Inner ThreadM4	–	Thread Length5 mm	Pins8	Rated Current160 A	Design Kit –
7461102	9 mm, 14 mm, 160 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D Download_3D_7461102 (rev1).pdf \| 54.6 KB IGS Download_IGS_7461102 (rev1).igs \| 418.1 KB STP 7461102 (rev1).stp \| 91.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width9 mm	Height14 mm	Rated Current160 A	–	Inner Diameter4.2 mm	–	Pins8	Rated Current160 A	Design Kit 746701
7461103	9 mm, 14 mm, 160 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D Download_3D_7461103 (rev1).pdf \| 42.8 KB IGS Download_IGS_7461103 (rev1).igs \| 417.9 KB STP 7461103 (rev1).stp \| 114.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width9 mm	Height14 mm	Rated Current160 A	Inner ThreadM5	–	Thread Length5 mm	Pins8	Rated Current160 A	Design Kit –
7461104	9 mm, 14 mm, 160 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D Download_3D_7461104 (rev1).pdf \| 44.1 KB IGS Download_IGS_7461104 (rev1).igs \| 418.7 KB STP 7461104 (rev1).stp \| 91.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width9 mm	Height14 mm	Rated Current160 A	–	Inner Diameter5.2 mm	–	Pins8	Rated Current160 A	Design Kit –
7461106	13 mm, 20 mm, 240 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D 7461106_3D (rev1).pdf \| 48.2 KB IGS 7461106 (rev1).igs \| 554.4 KB STP 7461106 (rev1).stp \| 143.3 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width13 mm	Height20 mm	Rated Current240 A	Inner ThreadM6	–	Thread Length8 mm	Pins10	Rated Current240 A	Design Kit –
7461107	13 mm, 20 mm, 240 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D 7461107_3D (rev1).pdf \| 46.2 KB IGS 7461107 (rev1).igs \| 503.5 KB STP 7461107 (rev1).stp \| 111.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width13 mm	Height20 mm	Rated Current240 A	–	Inner Diameter6.2 mm	–	Pins10	Rated Current240 A	Design Kit –
7461108	13 mm, 20 mm, 240 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D 7461108_3D (rev1).pdf \| 48.6 KB IGS 7461108 (rev1).igs \| 503.2 KB STP 7461108 (rev1).stp \| 140 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width13 mm	Height20 mm	Rated Current240 A	Inner ThreadM8	–	Thread Length8 mm	Pins10	Rated Current240 A	Design Kit –
7461064	13 mm, 20 mm, 240 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-RATR (rev25a).IntLib \| 277 KB CDS Cadence_WP-RATR (rev22a).zip \| 1.6 MB EAG Eagle_WP-RATR (rev26a).lbr \| 72.7 KB KIC KiCad_WP-RATR (rev26a).zip \| 358.7 KB CAD files ZIP 3D 7461064_3D (rev1).pdf \| 45 KB IGS 7461064 (rev1).igs \| 509.4 KB STP 7461064 (rev1).stp \| 111.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width13 mm	Height20 mm	Rated Current240 A	–	Inner Diameter8.2 mm	–	Pins10	Rated Current240 A	Design Kit –

REDCUBE Terminals - 4power!

REDCUBE terminals are the most reliable high-power contacts on the PCB level. Low contact resistance guarantees minimum self-heating. Four different designs cover all leading processing technologies and offer a wide range of applications.

Characteristic:

Flexibility in processing and connection technologies
Highest current ratings up to 500 A
Board-to-Board and Wire-to-Board solutions
Extremely low self-heating
Robust mechanical connection

REDCUBE PRESS-FIT

Applications, Performance & Press-Fit Process

Applications

The current rating of REDCUBE PRESS-FIT is impressive. With the same ampacity, REDCUBE PRESS-FIT has the lowest heat development compared to other parts that supply power for PCBs.

High current Wire-to-Board & Board-to-Board
Mounting of copper bars
Angled assembling of cable, PCB and housing
Mounting of IGBT modules

Remarkable Performance

With the lowest Failure-In-Time value, REDCUBE PRESS-FIT is the most reliable technology on PCB. The FIT value is up to 30 times better than that of a SMD solder joint. REDCUBE PRESS-FIT is suitable for two-side mounting and allows very compact design of modules.

Simple & quick processing
No cold solder joints
High process safety
Low self heating
Two-sided mounting of PCBs

PRESS-FIT Process

Pressing the pins into the PCB, a high friction between pin and plated through-hole generates a homogeneous cold-welding between materials. No other technology transfers power up to 500 A at this low heat development.

Homogeneous material transition between pin and through-hole plating
Contact resistance less than 200 μΩ
Gastight electrical and mechanical connection
Extremely strong mechanical connection

Mates with

WA-CLUG Tubular Cable Lugs

Assortments

Articles from this product series can be found in the following assortments:

Design Kit REDCUBE

Videos

#askLorandt explains: REDCUBE PRESS-FIT Process

Videos

Würth Elektronik Webinar: REDCUBE - Everything about high currents on the printed circuit board

Videos

Würth Elektronik Webinar: REDCUBE HighPower Terminals for ampacity of 50-500 A
