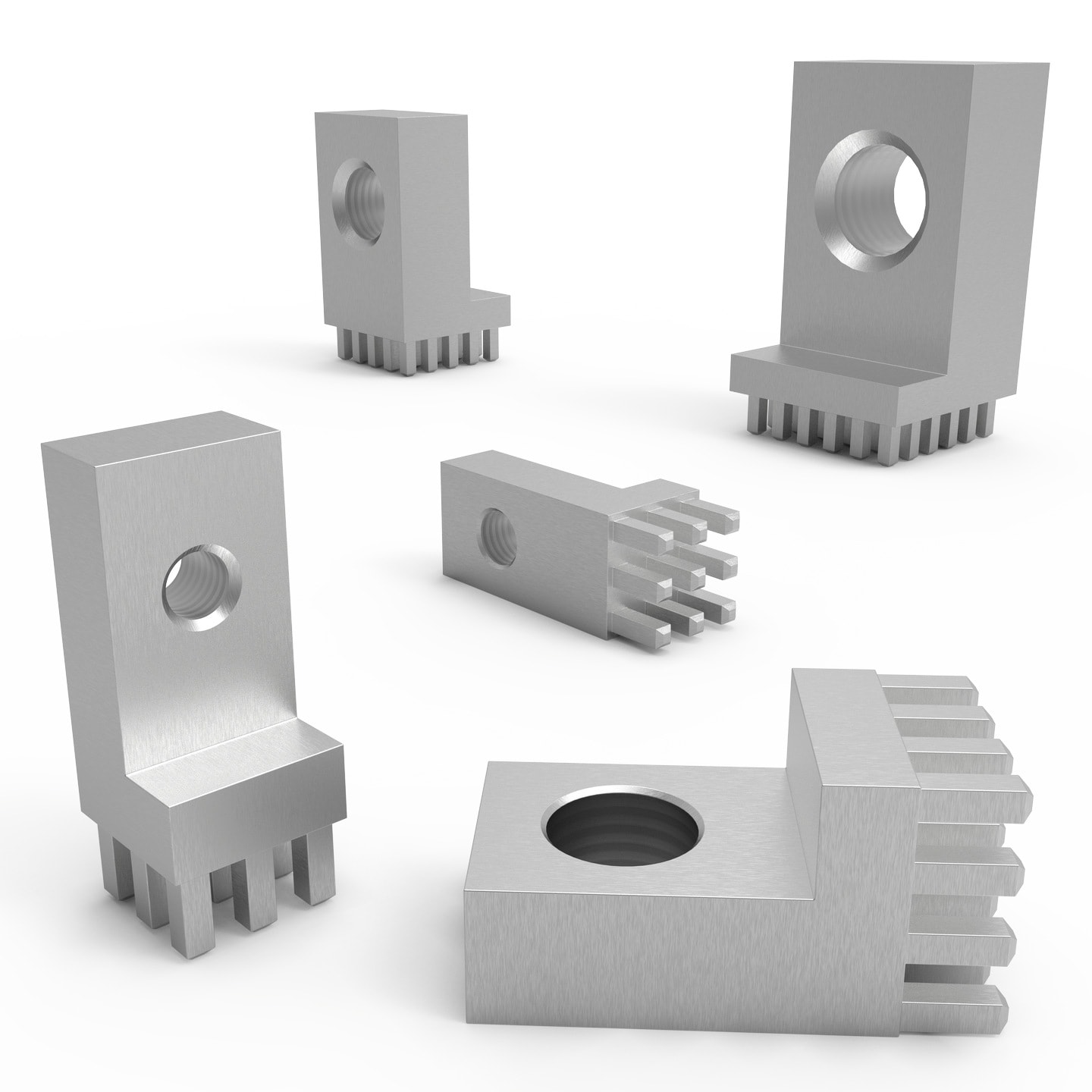

WP-RAFU REDCUBE PRESS-FIT right angled, full plain

Applications

High current Wire-to-Board & Board-to-Board connections
Angled electrical connection of cable or PCBs
Angled mechanical assembling of PCBs on housings
Suitable for rough environmental conditions

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Brass
Surface	Tin
Execution	Press-Fit

Packaging Properties
Packaging	Bulk; Tray

Application Notes

Press-Fit Technology
PDF

Products

	Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	I_R (A)	T_i	Ø ID (mm)	T_l (mm)	Pins (pcs)	I_R (A)	Design Kit	Samples
	7461066	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP STP 7461066 (rev1).stp \| 183.9 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	14	130	M3	–	4	9	130	–
	7461110	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP STP 7461110 (rev1).stp \| 183.9 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	14	130	–	3.2	–	9	130	–
	7461111	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D Download_3D_PeRAFU_7461111 (rev1).pdf \| 57.1 KB IGS Download_IGS_PeRAFU_7461111 (rev1).igs \| 767.9 KB STP 7461111 (rev1).stp \| 215.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	14	180	M4	–	5	16	180	–
	7461067	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D Download_3D_PeRAFU_7461067 (rev1).pdf \| 58.5 KB IGS Download_IGS_PeRAFU_7461067 (rev1).igs \| 768.2 KB STP 7461067 (rev1).stp \| 172 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	14	180	–	4.2	–	16	180	–
	7461112	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D Download_3D_PeRAFU_7461112 (rev1).pdf \| 57.7 KB IGS Download_IGS_PeRAFU_7461112 (rev1).igs \| 768.6 KB STP 7461112 (rev1).stp \| 309.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	14	180	M5	–	5	16	180	–
	7461113	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D Download_3D_PeRAFU_7461113 (rev1).pdf \| 59.9 KB IGS Download_IGS_PeRAFU_7461113 (rev1).igs \| 768.2 KB STP 7461113 (rev1).stp \| 172 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	14	180	–	5.2	–	16	180	–
	7461114	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D 3D_7461114 (rev1).pdf \| 74.6 KB IGS IGS_7461114 (rev1).igs \| 1.1 MB STP 7461114 (rev1).stp \| 470.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	20	250	M6	–	8	25	250	746701
	7461068	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D 3D_7461068 (rev1).pdf \| 76.8 KB IGS IGS_7461068 (rev1).igs \| 1.1 MB STP 7461068 (rev1).stp \| 470.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	20	250	M8	–	8	25	250	–
	7461115	SPEC	6 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP 3D 3D_7461115 (rev1).pdf \| 76.5 KB IGS IGS_7461115 (rev1).igs \| 1.1 MB STP 7461115 (rev1).stp \| 470.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	20	250	–	6.2	–	25	250	–
	7461117	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-RAFU (rev23a).IntLib \| 771 KB CDS Cadence_WP-RAFU (rev23a).zip \| 1009.1 KB EAG Eagle_WP-RAFU (rev23a).lbr \| 139.5 KB CAD files ZIP STP 7461117 (rev1).stp \| 670.2 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	25	350	M10	–	10	36	350	–

	Order Code	Datasheet
	7461066	SPEC
	7461110	SPEC
	7461111	SPEC
	7461067	SPEC
	7461112	SPEC
	7461113	SPEC
	7461114	SPEC
	7461068	SPEC
	7461115	SPEC
	7461117	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	I_R (A)	T_i	Ø ID (mm)	T_l (mm)	Pins (pcs)	I_R (A)	Design Kit	Samples

Press-Fit Technology

REDCUBE Terminals are the most reliable high-power contact on PCB level. Low contact resistance guarantees minimum self-heating.

Mates with

WA-CLUG Tubular Cable Lugs

Assortments

Articles from this product series can be found in the following assortments:

Design Kit REDCUBE
