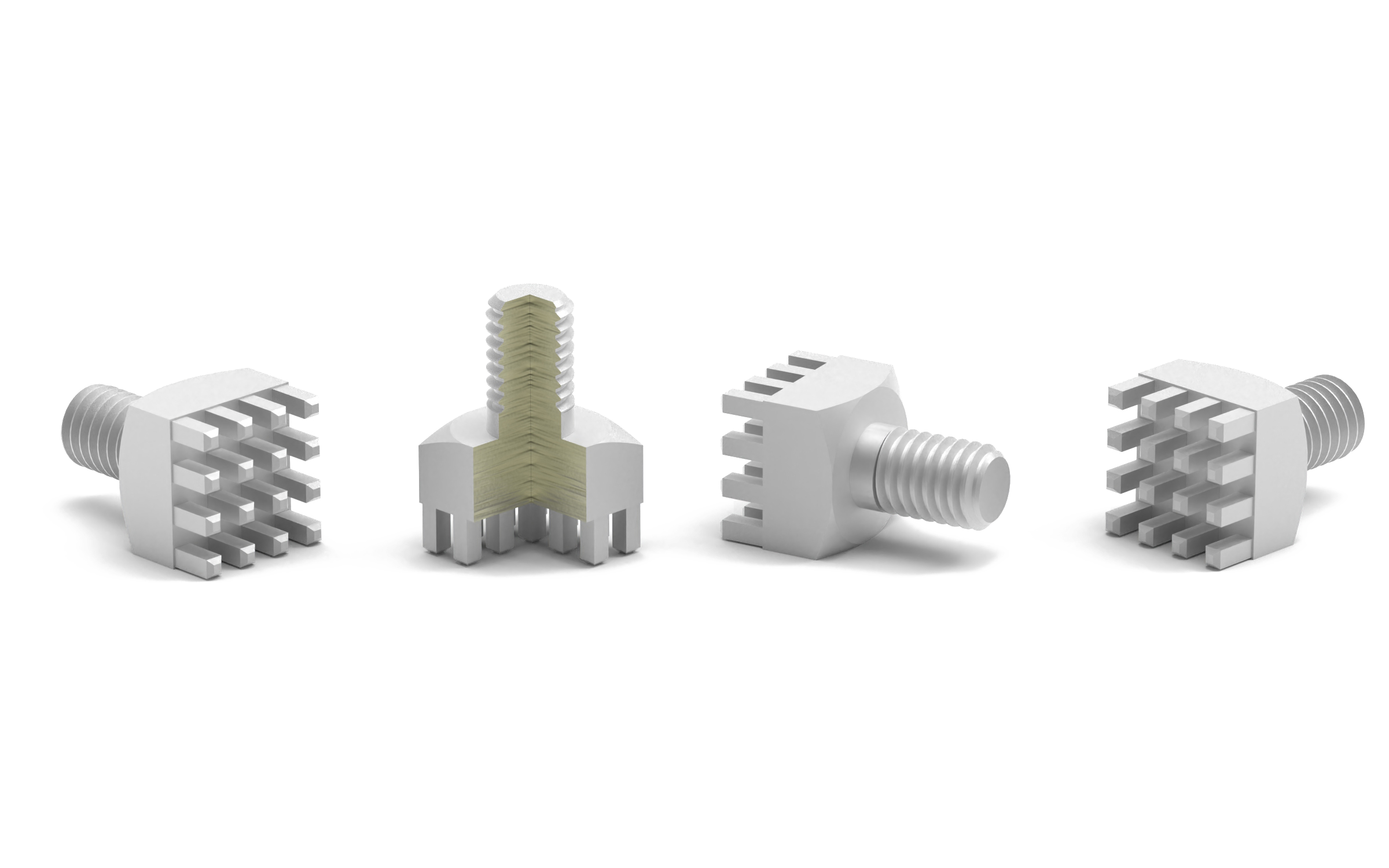

WP-PFEFUA REDCUBE PRESS-FIT with External Thread

Applications

High current Wire-to-Board connections up to 250 A
Mounting of copper bars on PCBs
Installation of laminated fuses
Installation of IGBT modules
Suitable for rough environmental condition

Application Notes

SN025 REDCUBE Terminals for automotive applications
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	W(mm)	H(mm)	I_R(A)	T_l(mm)	Pins	Samples
786203073	7, 10.5 mm, 130 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_9 pins, 7x7mm_786203073 (rev1).pdf \| 272.3 KB IGS IGS_PePFEFUA_9 pins, 7x7mm_786203073 (rev1).igs \| 958.3 KB STP STP_PePFEFUA_9 pins, 7x7mm_786203073 (rev1).stp \| 311.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 7	Height10.5 mm	Rated Current130 A	Thread Length4 mm	Pins9
786203074	7, 12 mm, 130 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_9 pins, 7x7mm_786203074 (rev1).pdf \| 252.4 KB IGS IGS_PePFEFUA_9 pins, 7x7mm_786203074 (rev1).igs \| 899.1 KB STP STP_PePFEFUA_9 pins, 7x7mm_786203074 (rev1).stp \| 287.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 7	Height12 mm	Rated Current130 A	Thread Length4.6 mm	Pins9
786203075	7, 15 mm, 130 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_9 pins, 7x7mm_786203075 (rev1).pdf \| 318.1 KB IGS IGS_PePFEFUA_9 pins, 7x7mm_786203075 (rev1).igs \| 962 KB STP STP_PePFEFUA_9 pins, 7x7mm_786203075 (rev1).stp \| 319.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 7	Height15 mm	Rated Current130 A	Thread Length6.5 mm	Pins9
786203095	9, 15.5 mm, 180 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_16 pins, 9x9mm_786203095 (rev1).pdf \| 313.7 KB IGS IGS_PePFEFUA_16 pins, 9x9mm_786203095 (rev1).igs \| 1.3 MB STP STP_PePFEFUA_16 pins, 9x9mm_786203095 (rev1).stp \| 398.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 9	Height15.5 mm	Rated Current180 A	Thread Length6.5 mm	Pins16
786203106	10, 17.5 mm, 180 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_16 pins, 10x10mm_786203106 (rev1).pdf \| 316.3 KB IGS IGS_PePFEFUA_16 pins, 10x10mm_786203106 (rev1).igs \| 1.3 MB STP STP_PePFEFUA_16 pins, 10x10mm_786203106 (rev1).stp \| 388.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 10	Height17.5 mm	Rated Current180 A	Thread Length8 mm	Pins16
786203146	14, 18.5 mm, 250 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_16 pins, 14x14mm_786203146 (rev1).pdf \| 294.5 KB IGS IGS_PePFEFUA_16 pins, 14x14mm_786203146 (rev1).igs \| 1.3 MB STP STP_PePFEFUA_16 pins, 14x14mm_786203146 (rev1).stp \| 388.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 14	Height18.5 mm	Rated Current250 A	Thread Length8 mm	Pins16
786203148	14, 23.5 mm, 250 A	Downloads7 files EDA models: Components ZIP ALT Altium_WP-PFEFUA (rev24a).IntLib \| 889.5 KB CDS Cadence_WP-PFEFUA (rev24a).zip \| 2.4 MB EAG Eagle_WP-PFEFUA (rev24a).lbr \| 38.4 KB KIC KiCad_WP-PFEFUA (rev26a).zip \| 2.8 MB CAD files ZIP 3D 3D_PePFEFUA_16 pins, 14x14mm_786203148 (rev1).pdf \| 328.8 KB IGS IGS_PePFEFUA_16 pins, 14x14mm_786203148 (rev1).igs \| 1.3 MB STP STP_PePFEFUA_16 pins, 14x14mm_786203148 (rev1).stp \| 404.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width 14	Height23.5 mm	Rated Current250 A	Thread Length10.5 mm	Pins16
