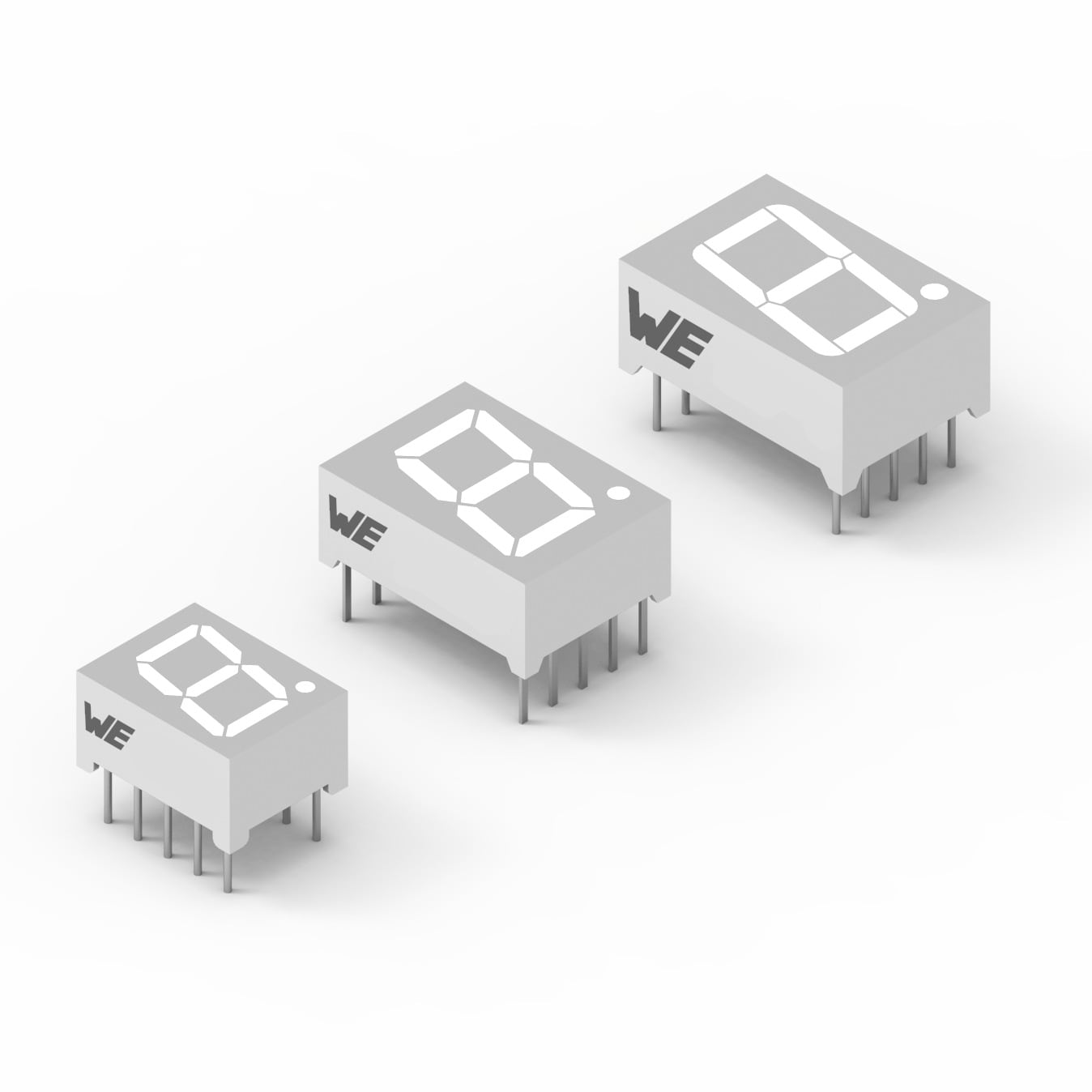

WL-T7DS 7 Segments Display THT Single Digit
| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | |
|---|---|---|---|---|---|---|
0.39"/ 9.9mm | 13 | 10 | 7 | THT | ||
0.52" / 13.2mm | 17.5 | 12.4 | 7 | THT | ||
0.56" / 14.2mm | 19 | 12.6 | 8 | THT |
Characteristics
- Industrial standard size and schematic
- Low power consumption
- Grey surface
- Milky / diffused segments
- Driving with DC current in forward direction only
- Suitable for high peak current up to 100 mA
Applications
- Audio / measurement equipment
- Instrument panels
- Digital read out display
- Control unit
Products
All
0.39"/ 9.9mm
0.52" / 13.2mm
0.56" / 14.2mm
Filter by
show in
article in 3 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | Emitting Color | IV typ.(mcd) | VF typ.(V) | L(mm) | W(mm) | H(mm) | Circuitry | SamplesAvailability & Sample | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 157119B12801 | SPECBlue, 32 mcd, 3 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBlue | Luminous Intensity [typ.]32 mcd | Forward Voltage [typ.]3 V | Length13 mm | Width10 mm | Height7 mm | CircuitryCommon Anode | –Check availability | ||
| 157136B12801 | SPECBlue, 32 mcd, 3 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBlue | Luminous Intensity [typ.]32 mcd | Forward Voltage [typ.]3 V | Length17.5 mm | Width12.4 mm | Height7 mm | CircuitryCommon Anode | –Check availability | ||
| 157142B12803 | SPECBlue, 32 mcd, 3 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBlue | Luminous Intensity [typ.]32 mcd | Forward Voltage [typ.]3 V | Length19 mm | Width12.6 mm | Height8 mm | CircuitryCommon Anode | –Check availability | ||
| 157119B12701 | SPECBlue, 32 mcd, 3 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBlue | Luminous Intensity [typ.]32 mcd | Forward Voltage [typ.]3 V | Length13 mm | Width10 mm | Height7 mm | CircuitryCommon Cathode | –Check availability | ||
| 157136B12701 | SPECBlue, 32 mcd, 3 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBlue | Luminous Intensity [typ.]32 mcd | Forward Voltage [typ.]3 V | Length17.5 mm | Width12.4 mm | Height7 mm | CircuitryCommon Cathode | –Check availability | ||
| 157142B12703 | SPECBlue, 32 mcd, 3 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBlue | Luminous Intensity [typ.]32 mcd | Forward Voltage [typ.]3 V | Length19 mm | Width12.6 mm | Height8 mm | CircuitryCommon Cathode | –Check availability | ||
| 157119V12801 | SPECBright Green, 46 mcd, 2.2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBright Green | Luminous Intensity [typ.]46 mcd | Forward Voltage [typ.]2.2 V | Length13 mm | Width10 mm | Height7 mm | CircuitryCommon Anode | –Check availability | ||
| 157136V12801 | SPECBright Green, 46 mcd, 2.2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBright Green | Luminous Intensity [typ.]46 mcd | Forward Voltage [typ.]2.2 V | Length17.5 mm | Width12.4 mm | Height7 mm | CircuitryCommon Anode | –Check availability | ||
| 157142V12803 | SPECBright Green, 46 mcd, 2.2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBright Green | Luminous Intensity [typ.]46 mcd | Forward Voltage [typ.]2.2 V | Length19 mm | Width12.6 mm | Height8 mm | CircuitryCommon Anode | –Check availability | ||
| 157119V12701 | SPECBright Green, 46 mcd, 2.2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBright Green | Luminous Intensity [typ.]46 mcd | Forward Voltage [typ.]2.2 V | Length13 mm | Width10 mm | Height7 mm | CircuitryCommon Cathode | –Check availability | ||
| 157136V12701 | SPECBright Green, 46 mcd, 2.2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBright Green | Luminous Intensity [typ.]46 mcd | Forward Voltage [typ.]2.2 V | Length17.5 mm | Width12.4 mm | Height7 mm | CircuitryCommon Cathode | –Check availability | ||
| 157142V12703 | SPECBright Green, 46 mcd, 2.2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorBright Green | Luminous Intensity [typ.]46 mcd | Forward Voltage [typ.]2.2 V | Length19 mm | Width12.6 mm | Height8 mm | CircuitryCommon Cathode | –Check availability | ||
| 157119S12801 | SPECSuper Red, 38 mcd, 2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorSuper Red | Luminous Intensity [typ.]38 mcd | Forward Voltage [typ.]2 V | Length13 mm | Width10 mm | Height7 mm | CircuitryCommon Anode | –Check availability | ||
| 157136S12801 | SPECSuper Red, 38 mcd, 2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorSuper Red | Luminous Intensity [typ.]38 mcd | Forward Voltage [typ.]2 V | Length17.5 mm | Width12.4 mm | Height7 mm | CircuitryCommon Anode | –Check availability | ||
| 157142S12803 | SPECSuper Red, 38 mcd, 2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorSuper Red | Luminous Intensity [typ.]38 mcd | Forward Voltage [typ.]2 V | Length19 mm | Width12.6 mm | Height8 mm | CircuitryCommon Anode | –Check availability | ||
| 157136S12701 | SPECSuper Red, 38 mcd, 2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorSuper Red | Luminous Intensity [typ.]38 mcd | Forward Voltage [typ.]2 V | Length17.5 mm | Width12.4 mm | Height7 mm | CircuitryCommon Cathode | –Check availability | ||
| 157142S12703 | SPECSuper Red, 38 mcd, 2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorSuper Red | Luminous Intensity [typ.]38 mcd | Forward Voltage [typ.]2 V | Length19 mm | Width12.6 mm | Height8 mm | CircuitryCommon Cathode | –Check availability | ||
| 157119S12701 | SPECSuper Red, 38 mcd, 2 V | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Emitting ColorSuper Red | Luminous Intensity [typ.]38 mcd | Forward Voltage [typ.]2 V | Length13 mm | Width10 mm | Height7 mm | CircuitryCommon Cathode | –Check availability |
