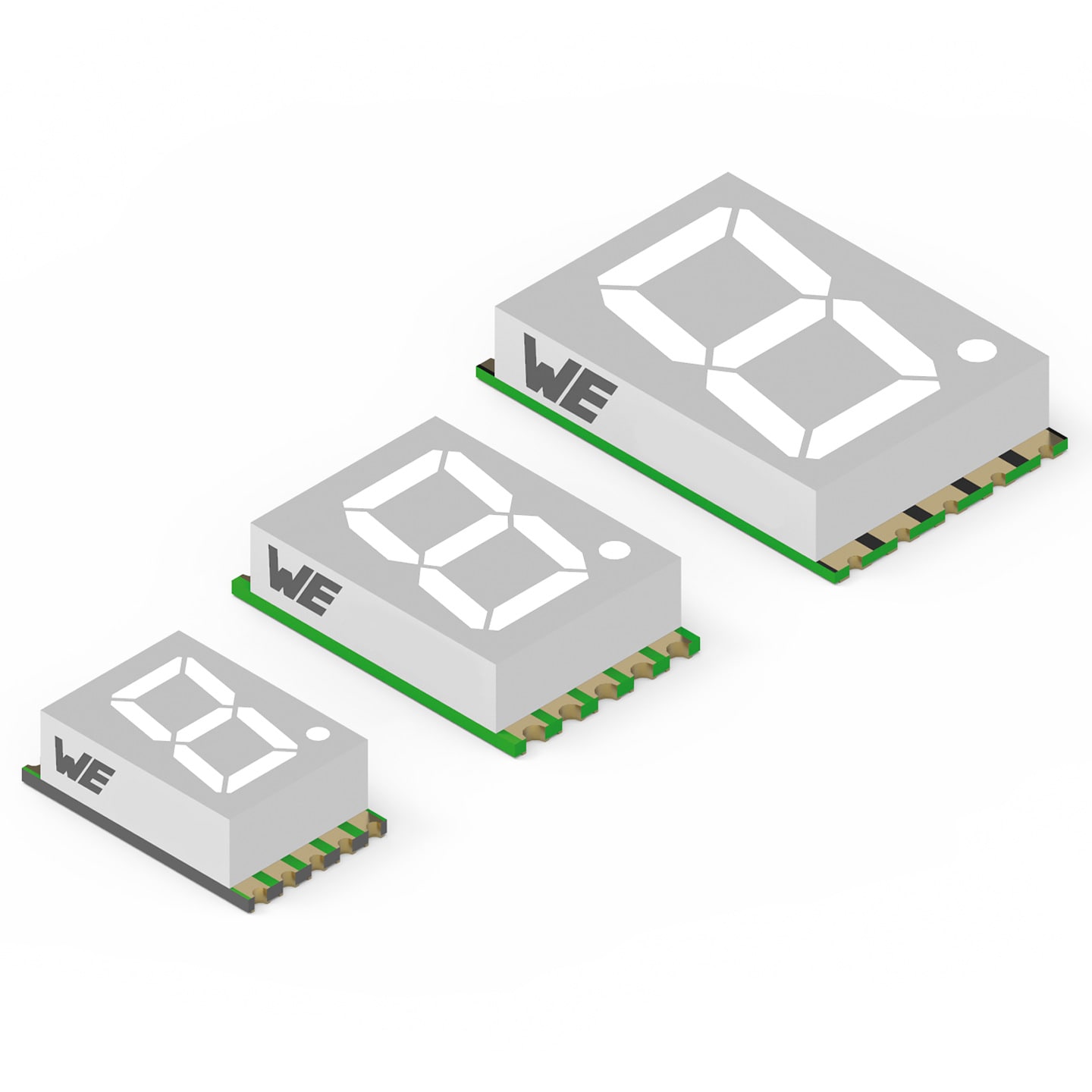

WL-S7DS 7 Segments Display SMT Single Digit

Size	L (mm)	W (mm)	H (mm)	Mount
0.2" / 5mm	10	6.9	3	SMT
0.3" / 7.62mm	12	7.3	3.75	SMT
0.39" / 10mm	15	9.8	3.75	SMT
0.56" / 14.22mm	19	12.4	3.75	SMT

Characteristics

Industrial standard size and schematic
Low power consumption
Grey surface
Milky / Diffuesed segments
Driving with DC current in forward direction only
Suitable for high peak current up to 100 mA

Applications

Audio / measure equipment
Instrument panels
Digital read out display
Control units

Products

All

0.2" / 5mm

0.3" / 7.62mm

0.39" / 10mm

0.56" / 14.22mm

Reset all

Filter article data

show article in 4 product lines

article in 4 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Emitting Color	I_{V typ.}(mcd)	V_{F typ.}(V)	L(mm)	W(mm)	H(mm)	Circuitry
157102B12700	Blue, 24 mcd, 3 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_2 (rev1).pdf \| 367.2 KB IGS Download_IGS_WL-S7DS-0_2 (rev1).igs \| 3.9 MB STP Download_STP_WL-S7DS-0_2 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Luminous Intensity [typ.]24 mcd	Forward Voltage [typ.]3 V	Length10 mm	Width6.9 mm	Height3 mm	CircuitryCommon Cathode
157112B12700	Blue, 32 mcd, 3 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_3 (rev1).pdf \| 356.6 KB IGS IGS_157112x12x00 (rev1).igs \| 2.4 MB STP STP_157112x12x00 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Luminous Intensity [typ.]32 mcd	Forward Voltage [typ.]3 V	Length12 mm	Width7.3 mm	Height3.75 mm	CircuitryCommon Cathode
157112B12800	Blue, 32 mcd, 3 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_3 (rev1).pdf \| 356.6 KB IGS IGS_157112x12x00 (rev1).igs \| 2.4 MB STP STP_157112x12x00 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Luminous Intensity [typ.]32 mcd	Forward Voltage [typ.]3 V	Length12 mm	Width7.3 mm	Height3.75 mm	CircuitryCommon Anode
157121B12700	Blue, 32 mcd, 3 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_39 (rev1).pdf \| 369.1 KB IGS IGS_157121x12x00 (rev1).igs \| 2.3 MB STP STP_157121x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Luminous Intensity [typ.]32 mcd	Forward Voltage [typ.]3 V	Length15 mm	Width9.8 mm	Height3.75 mm	CircuitryCommon Cathode
157143B12800	Blue, 32 mcd, 3 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_56 (rev1).pdf \| 384.9 KB IGS IGS_157143x12x00 (rev1).igs \| 2.3 MB STP STP_157143x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Luminous Intensity [typ.]32 mcd	Forward Voltage [typ.]3 V	Length19 mm	Width12.4 mm	Height3.75 mm	CircuitryCommon Anode
157102B12800	Blue, 24 mcd, 3 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_2 (rev1).pdf \| 367.2 KB IGS Download_IGS_WL-S7DS-0_2 (rev1).igs \| 3.9 MB STP Download_STP_WL-S7DS-0_2 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBlue	Luminous Intensity [typ.]24 mcd	Forward Voltage [typ.]3 V	Length10 mm	Width6.9 mm	Height3 mm	CircuitryCommon Anode
157112V12800	Bright Green, 21 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_3 (rev1).pdf \| 356.6 KB IGS IGS_157112x12x00 (rev1).igs \| 2.4 MB STP STP_157112x12x00 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]21 mcd	Forward Voltage [typ.]2 V	Length12 mm	Width7.3 mm	Height3.75 mm	CircuitryCommon Anode
157121V12800	Bright Green, 35 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_39 (rev1).pdf \| 369.1 KB IGS IGS_157121x12x00 (rev1).igs \| 2.3 MB STP STP_157121x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]35 mcd	Forward Voltage [typ.]2 V	Length15 mm	Width9.8 mm	Height3.75 mm	CircuitryCommon Anode
157143V12800	Bright Green, 35 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_56 (rev1).pdf \| 384.9 KB IGS IGS_157143x12x00 (rev1).igs \| 2.3 MB STP STP_157143x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]35 mcd	Forward Voltage [typ.]2 V	Length19 mm	Width12.4 mm	Height3.75 mm	CircuitryCommon Anode
157112V12700	Bright Green, 21 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_3 (rev1).pdf \| 356.6 KB IGS IGS_157112x12x00 (rev1).igs \| 2.4 MB STP STP_157112x12x00 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]21 mcd	Forward Voltage [typ.]2 V	Length12 mm	Width7.3 mm	Height3.75 mm	CircuitryCommon Cathode
157121V12700	Bright Green, 35 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_39 (rev1).pdf \| 369.1 KB IGS IGS_157121x12x00 (rev1).igs \| 2.3 MB STP STP_157121x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]35 mcd	Forward Voltage [typ.]2 V	Length15 mm	Width9.8 mm	Height3.75 mm	CircuitryCommon Cathode
157143V12700	Bright Green, 35 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_56 (rev1).pdf \| 384.9 KB IGS IGS_157143x12x00 (rev1).igs \| 2.3 MB STP STP_157143x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]35 mcd	Forward Voltage [typ.]2 V	Length19 mm	Width12.4 mm	Height3.75 mm	CircuitryCommon Cathode
157102V12700	Bright Green, 17 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_2 (rev1).pdf \| 367.2 KB IGS Download_IGS_WL-S7DS-0_2 (rev1).igs \| 3.9 MB STP Download_STP_WL-S7DS-0_2 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]17 mcd	Forward Voltage [typ.]2 V	Length10 mm	Width6.9 mm	Height3 mm	CircuitryCommon Cathode
157102V12800	Bright Green, 17 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_2 (rev1).pdf \| 367.2 KB IGS Download_IGS_WL-S7DS-0_2 (rev1).igs \| 3.9 MB STP Download_STP_WL-S7DS-0_2 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorBright Green	Luminous Intensity [typ.]17 mcd	Forward Voltage [typ.]2 V	Length10 mm	Width6.9 mm	Height3 mm	CircuitryCommon Anode
157112S12800	Super Red, 28 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_3 (rev1).pdf \| 356.6 KB IGS IGS_157112x12x00 (rev1).igs \| 2.4 MB STP STP_157112x12x00 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]28 mcd	Forward Voltage [typ.]2 V	Length12 mm	Width7.3 mm	Height3.75 mm	CircuitryCommon Anode
157121S12800	Super Red, 38 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_39 (rev1).pdf \| 369.1 KB IGS IGS_157121x12x00 (rev1).igs \| 2.3 MB STP STP_157121x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]38 mcd	Forward Voltage [typ.]2 V	Length15 mm	Width9.8 mm	Height3.75 mm	CircuitryCommon Anode
157143S12800	Super Red, 28 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_56 (rev1).pdf \| 384.9 KB IGS IGS_157143x12x00 (rev1).igs \| 2.3 MB STP STP_157143x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]28 mcd	Forward Voltage [typ.]2 V	Length19 mm	Width12.4 mm	Height3.75 mm	CircuitryCommon Anode
157112S12700	Super Red, 28 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_3 (rev1).pdf \| 356.6 KB IGS IGS_157112x12x00 (rev1).igs \| 2.4 MB STP STP_157112x12x00 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]28 mcd	Forward Voltage [typ.]2 V	Length12 mm	Width7.3 mm	Height3.75 mm	CircuitryCommon Cathode
157121S12700	Super Red, 38 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_39 (rev1).pdf \| 369.1 KB IGS IGS_157121x12x00 (rev1).igs \| 2.3 MB STP STP_157121x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]38 mcd	Forward Voltage [typ.]2 V	Length15 mm	Width9.8 mm	Height3.75 mm	CircuitryCommon Cathode
157143S12700	Super Red, 28 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_56 (rev1).pdf \| 384.9 KB IGS IGS_157143x12x00 (rev1).igs \| 2.3 MB STP STP_157143x12x00 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]28 mcd	Forward Voltage [typ.]2 V	Length19 mm	Width12.4 mm	Height3.75 mm	CircuitryCommon Cathode
157102S12700	Super Red, 15 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_2 (rev1).pdf \| 367.2 KB IGS Download_IGS_WL-S7DS-0_2 (rev1).igs \| 3.9 MB STP Download_STP_WL-S7DS-0_2 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]15 mcd	Forward Voltage [typ.]2 V	Length10 mm	Width6.9 mm	Height3 mm	CircuitryCommon Cathode
157102S12800	Super Red, 16 mcd, 2 V	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-S7DS (rev22c).IntLib \| 667.5 KB CDS Cadence_WL-S7DS (rev22c).zip \| 2 MB EAG Eagle_WL-S7DS (rev24a).lbr \| 86 KB CAD files ZIP 3D Download_3D_WL-S7DS-0_2 (rev1).pdf \| 367.2 KB IGS Download_IGS_WL-S7DS-0_2 (rev1).igs \| 3.9 MB STP Download_STP_WL-S7DS-0_2 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red	Luminous Intensity [typ.]16 mcd	Forward Voltage [typ.]2 V	Length10 mm	Width6.9 mm	Height3 mm	CircuitryCommon Anode
