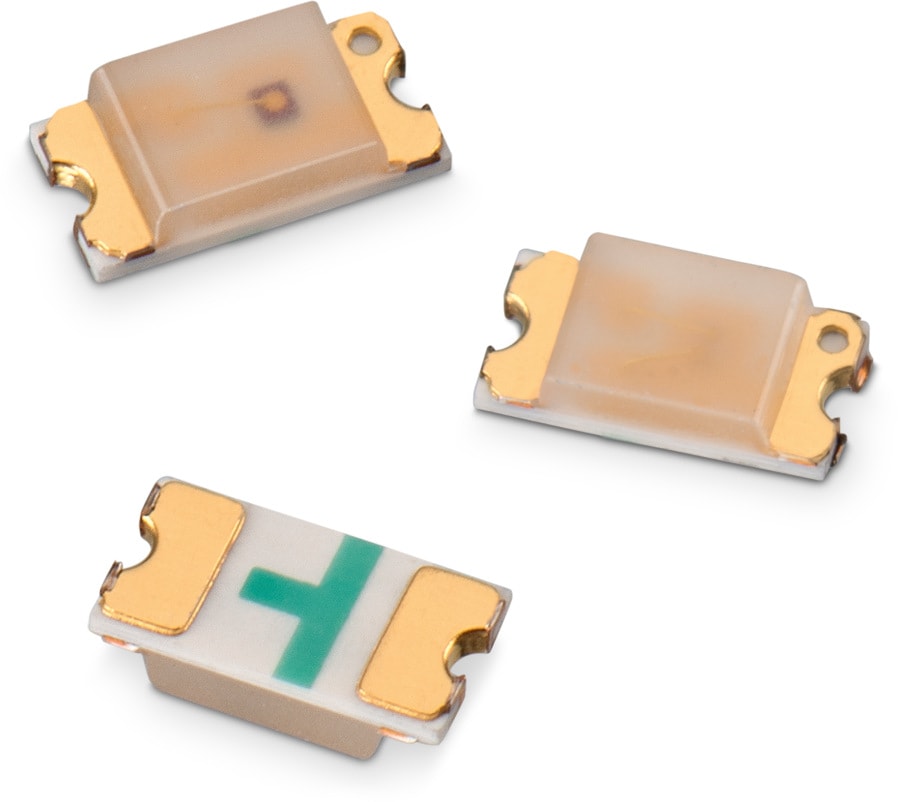

WL-SMCD SMT Mono-color Chip LED Diffused

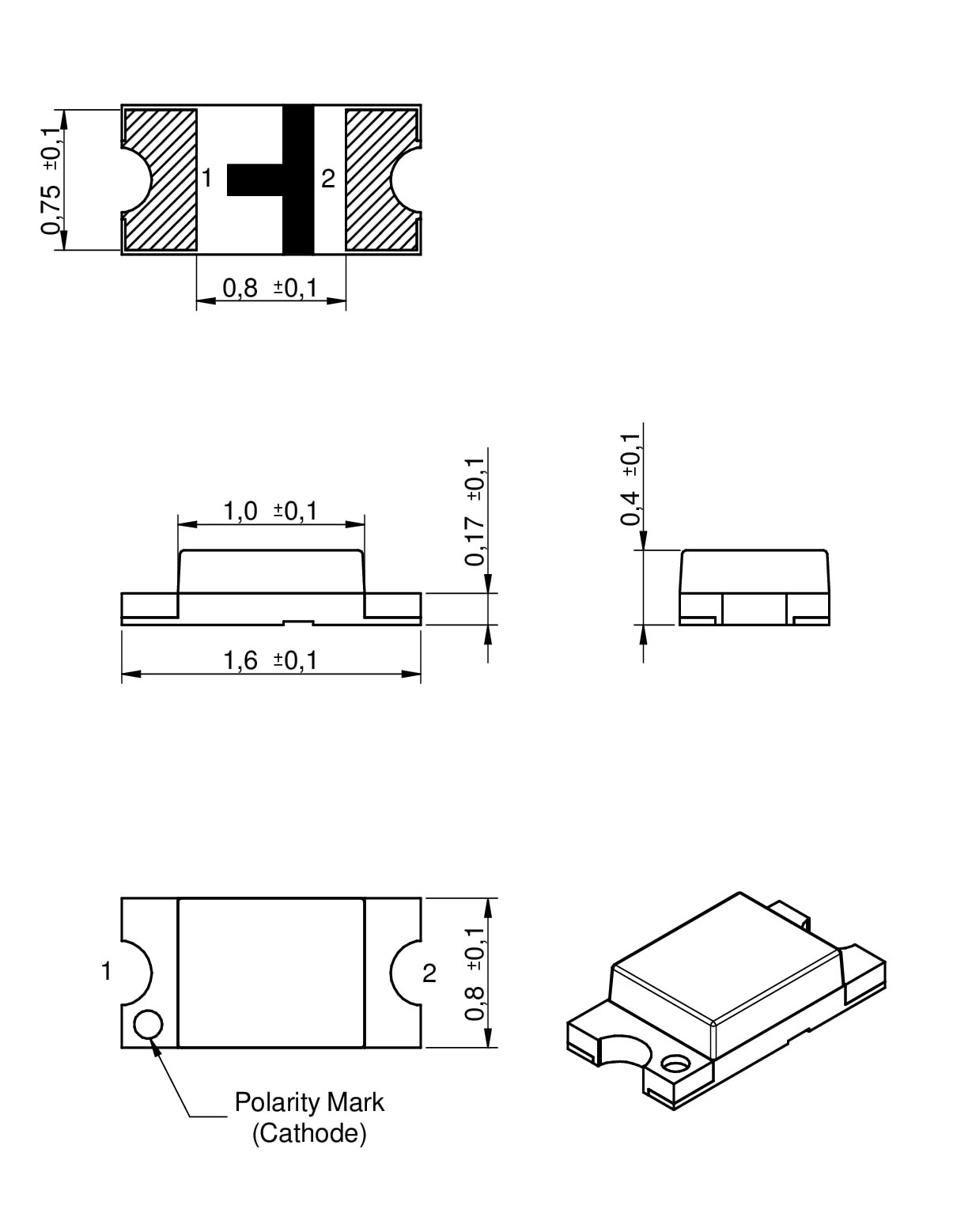

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0603		1.6	0.8	0.4	SMT

LTSpice files

LT
LTSpice_WL-SMCD (rev24a).zip
|
1.9 KB

Characteristics

Industrial 0603 platform – 1.6 x 0.8 mm
Wide viewing angle 140°
Thin version: 0.4 mm

Applications

Office Automation
Home appliances
Industrial equipment
Front panel backlighting
Button backlighting
LCD backlighting
Navigation backlighting

Products

0603

Filter article data

show article in 1 product lines

article in 1 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Dom typ.}(nm)	Emitting Color	λ_{Peak typ.}(nm)	I_{V typ.}(mcd)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	Samples
	150060BS55040	470 nm, Blue, 465 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD files ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]140 °	Demoboard 9999003	Design Kit 150155
	150060GS55040	525 nm, Green, 520 nm	Simulation	Downloads25 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD files ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150060GS55040_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_150060GS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_150060GS55040_5M (rev1p0).zip \| 189 MB LIG LightTools_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_150060GS55040_5M (rev1p0).zip \| 189 MB LUC LucidShape_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_150060GS55040_5M (rev1p0).zip \| 189.1 MB OPT OpTaliX_txt_150060GS55040_5M (rev1p0).zip \| 189.1 MB OPT OptiCAD_dat_150060GS55040_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_150060GS55040_5M (rev1p0).zip \| 189.1 MB OPT optalix_DIS_150060GS55040_5M (rev1p0).zip \| 120.9 MB RIR Photopia_rir_150060GS55040_5M (rev1p0).zip \| 120.9 MB SIM Simulux_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_150060GS55040_5M (rev1p0).zip \| 125.6 MB SRC Lucaray-maker_src_150060GS55040_5M (rev1p0).zip \| 120.9 MB TRA TracePro_txt_150060GS55040_5M (rev1p0).zip \| 188.9 MB ZEM ZemaxBin_dat_150060GS55040_5M (rev1p0).zip \| 120.9 MB ZEM Zemax_dat_150060GS55040_5M (rev1p0).zip \| 189.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]430 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]140 °	Demoboard 9999003	Design Kit 150155
	150060VS55040	573 nm, Bright Green, 575 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD files ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]60 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard 9999003	Design Kit 150155
	150060YS55040	589 nm, Yellow, 591 nm	Simulation	Downloads25 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD files ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150060YS55040_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_150060YS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB LIG LightTools_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_150060YS55040_5M (rev1p0).zip \| 190 MB LUC LucidShape_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB OPT OpTaliX_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB OPT OptiCAD_dat_150060YS55040_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB OPT optalix_DIS_150060YS55040_5M (rev1p0).zip \| 120.9 MB RIR Photopia_rir_150060YS55040_5M (rev1p0).zip \| 120.9 MB SIM Simulux_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_150060YS55040_5M (rev1p0).zip \| 125.5 MB SRC Lucaray-maker_src_150060YS55040_5M (rev1p0).zip \| 120.9 MB TRA TracePro_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB ZEM ZemaxBin_dat_150060YS55040_5M (rev1p0).zip \| 120.9 MB ZEM Zemax_dat_150060YS55040_5M (rev1p0).zip \| 189.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]591 nm	Luminous Intensity [typ.]100 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard 9999003	Design Kit 150155
	150060AS55040	605 nm, Amber, 609 nm	Simulation–	Downloads4 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]605 nm	Emitting ColorAmber	Peak Wavelength [typ.]609 nm	Luminous Intensity [typ.]110 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit –
	150060RS55040	624 nm, Red, 632 nm	Simulation	Downloads25 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD files ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150060RS55040_5M (rev1p0).zip \| 121 MB COD CodeV_ray_150060RS55040_5M (rev1p0).zip \| 121 MB FRE Fred_dat_150060RS55040_5M (rev1p0).zip \| 121 MB FRE Fred_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB LIG LightTools_ray_150060RS55040_5M (rev1p0).zip \| 121 MB LIG LightTools_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB LUC LucidShape_ray_150060RS55040_5M (rev1p0).zip \| 121 MB LUC LucidShape_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB OPT OpTaliX_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB OPT OptiCAD_dat_150060RS55040_5M (rev1p0).zip \| 121 MB OPT OptiCAD_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB OPT optalix_DIS_150060RS55040_5M (rev1p0).zip \| 121 MB RIR Photopia_rir_150060RS55040_5M (rev1p0).zip \| 121 MB SIM Simulux_ray_150060RS55040_5M (rev1p0).zip \| 121 MB SPE Speos_ray_150060RS55040_5M (rev1p0).zip \| 125.7 MB SRC Lucaray-maker_src_150060RS55040_5M (rev1p0).zip \| 121 MB TRA TracePro_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB ZEM ZemaxBin_dat_150060RS55040_5M (rev1p0).zip \| 121 MB ZEM Zemax_dat_150060RS55040_5M (rev1p0).zip \| 189.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]90 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard 9999003	Design Kit 150155
	150060SS55040	630 nm, Super Red, 645 nm	Simulation	Downloads25 files EDA models: Components ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD files ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Electric models ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB RAY files ASA ASAP-and-APEX_dis_150060SS55040_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_150060SS55040_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB LIG LightTools_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB LUC LucidShape_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB OPT OpTaliX_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB OPT OptiCAD_dat_150060SS55040_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB OPT optalix_DIS_150060SS55040_5M (rev1p0).zip \| 120.6 MB RIR Photopia_rir_150060SS55040_5M (rev1p0).zip \| 120.6 MB SIM Simulux_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_150060SS55040_5M (rev1p0).zip \| 125.6 MB SRC Lucaray-maker_src_150060SS55040_5M (rev1p0).zip \| 120.6 MB TRA TracePro_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB ZEM ZemaxBin_dat_150060SS55040_5M (rev1p0).zip \| 120.6 MB ZEM Zemax_dat_150060SS55040_5M (rev1p0).zip \| 189.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]630 nm	Emitting ColorSuper Red	Peak Wavelength [typ.]645 nm	Luminous Intensity [typ.]70 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard 9999003	Design Kit 150155

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View

Demoboard Visible LEDs
