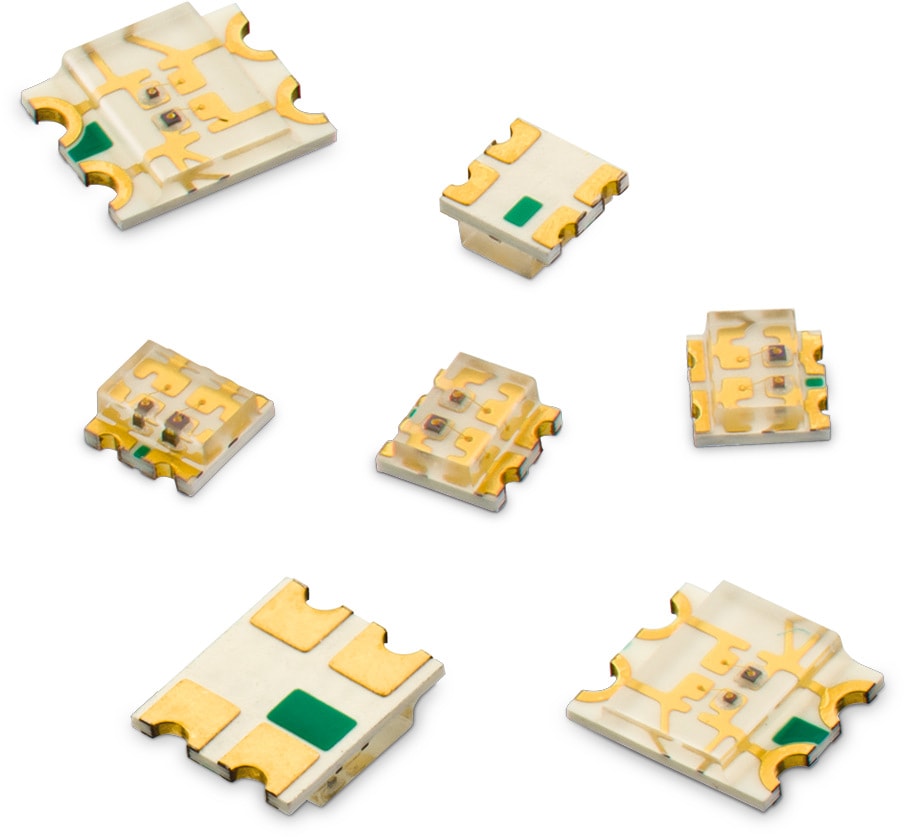

WL-SBCW SMT Bi-color Chip LED Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

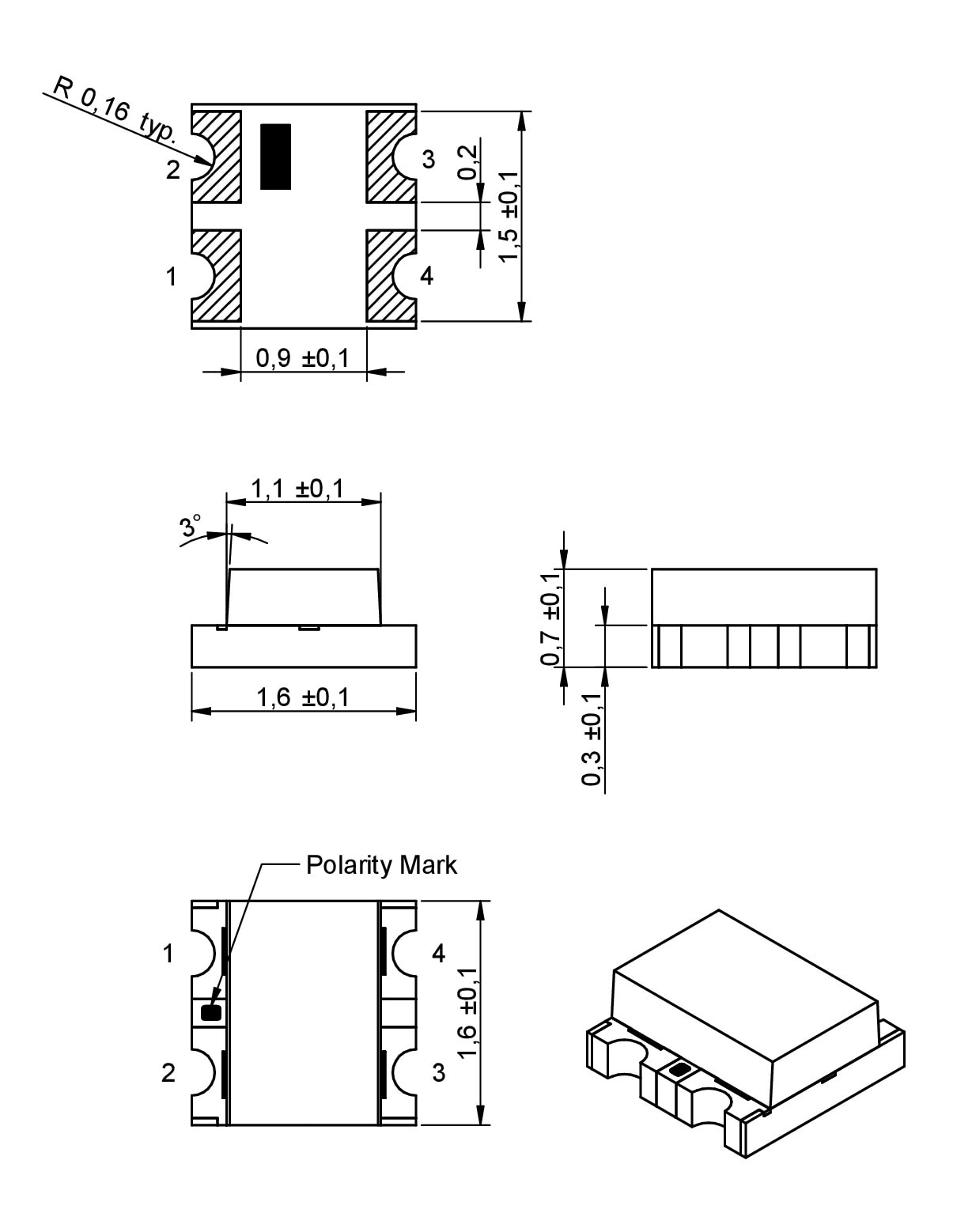

0606		1.6	-	0.7	SMT

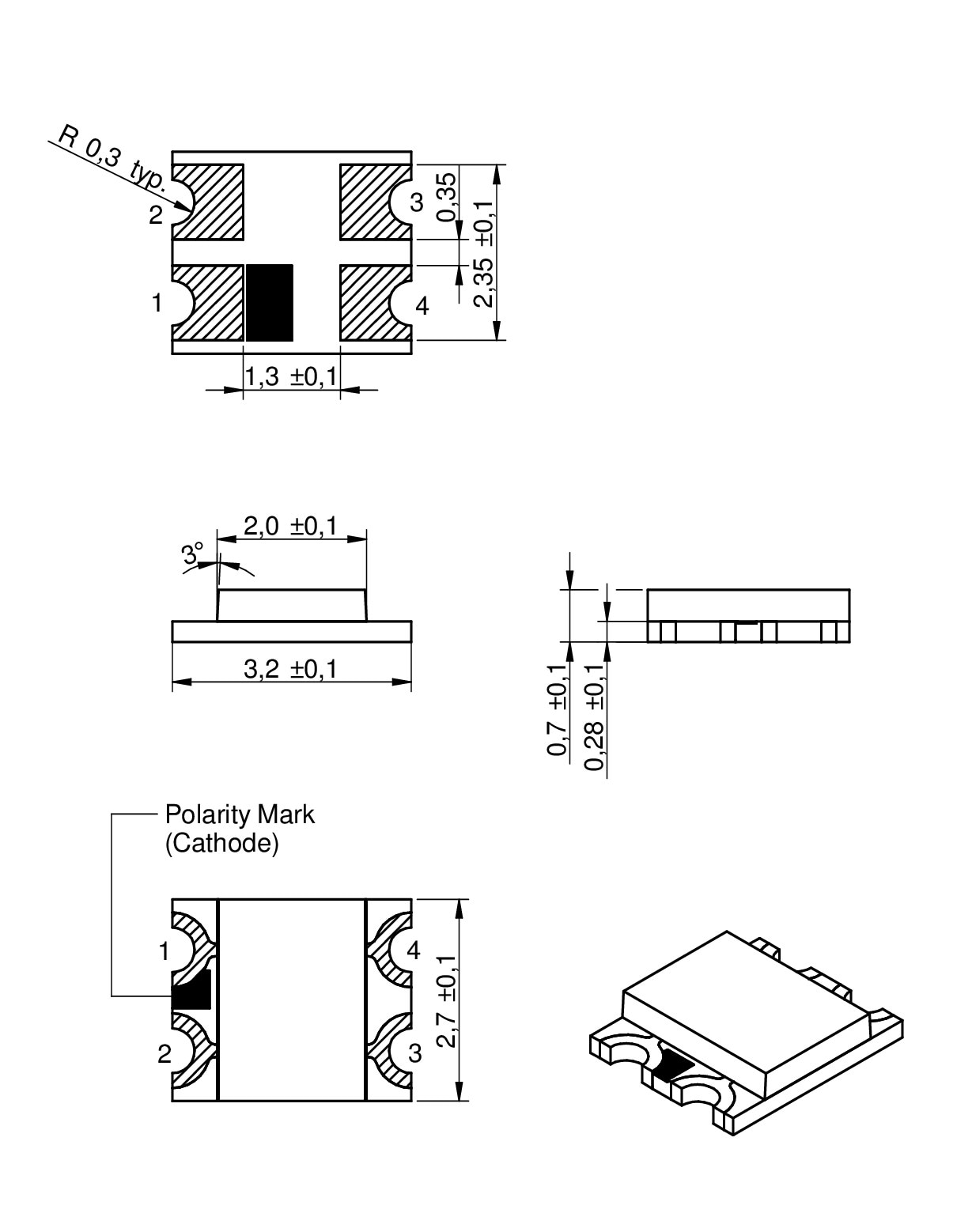

1210		3.2	2.7	0.7	SMT

LTSpice files

LT
LTSpice_WL-SBCW (rev22a).zip
|
4.7 KB

Characteristics

Two chips in one package
Small size
Industry standard footprint
High efficiency
Low power consumption
Wide viewing angle
Small LED package for exceptional brightness
Packaged in standard tape and reel 7"
Compatible with automatic placement machine

Applications

Backlighting applications
Status indicator
Front panel indicators
Push button backlighting
Symbol and switch backlighting

Products

All

0606

1210

Filter article data

show article in 2 product lines

article in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Peak S typ.}(nm)	λ_{Peak V typ.}(nm)	λ_{Peak Y typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	λ_{Dom S typ.}(nm)	λ_{Dom V typ.}(nm)	λ_{Dom Y typ.}(nm)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	I_{V S typ.}(mcd)	I_{V V typ.}(mcd)	I_{V Y typ.}(mcd)	V_{F G typ.}(V)	V_{F R typ.}(V)	V_{F S typ.}(V)	V_{F V typ.}(V)	V_{F Y typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	150066YV74000	SPECYellow & Bright Green, –, –	Availability –	Downloads7 files ALT WL-SBCW (rev22c).IntLib \| 216.5 KB CDS Cadence_WL-SBCW (rev22a).zip \| 871.9 KB EAG Eagle_WL-SBCW (rev22a).lbr \| 22.7 KB KIC KiCad_WL-SBCW (rev26a).zip \| 205.5 KB IGS Download_IGS_WL-SBCW-0606 (rev1).igs \| 2 MB STP Download_STP_WL-SBCW-0606 (rev1).stp \| 469.2 KB PSP PSpice_WL-SBCW (rev22a).zip \| 4.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorYellow & Bright Green	–	–	–	Peak Wavelength (Bright Green) [typ.]572 nm	Peak Wavelength (Yellow) [typ.]595 nm	–	–	–	Dominant Wavelength (Bright Green) [typ.]570 nm	Dominant Wavelength (Yellow) [typ.]590 nm	–	–	–	Luminous Intensity (Bright Green) [typ.]30 mcd	Luminous Intensity (Yellow) [typ.]120 mcd	–	–	–	Forward Voltage (Bright Green) [typ.]2 V	Forward Voltage (Yellow) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °	Demoboard 9999003	Design Kit 150155	–Check availability
	150121YV74000	SPECYellow & Bright Green, –, –	Availability –	Downloads7 files ALT WL-SBCW (rev22c).IntLib \| 216.5 KB CDS Cadence_WL-SBCW (rev22a).zip \| 871.9 KB EAG Eagle_WL-SBCW (rev22a).lbr \| 22.7 KB KIC KiCad_WL-SBCW (rev26a).zip \| 205.5 KB IGS Download_IGS_WL-SBCW-1210 (rev1).igs \| 2.2 MB STP Download_STP_WL-SBCW-1210 (rev1).stp \| 767.4 KB PSP PSpice_WL-SBCW (rev22a).zip \| 4.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorYellow & Bright Green	–	–	–	Peak Wavelength (Bright Green) [typ.]572 nm	Peak Wavelength (Yellow) [typ.]595 nm	–	–	–	Dominant Wavelength (Bright Green) [typ.]570 nm	Dominant Wavelength (Yellow) [typ.]590 nm	–	–	–	Luminous Intensity (Bright Green) [typ.]40 mcd	Luminous Intensity (Yellow) [typ.]120 mcd	–	–	–	Forward Voltage (Bright Green) [typ.]2 V	Forward Voltage (Yellow) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °	Demoboard 9999003	Design Kit 150155	–Check availability
	150066RG74000	SPECRed & Green, 515 nm, 630 nm	Availability –	Downloads7 files ALT WL-SBCW (rev22c).IntLib \| 216.5 KB CDS Cadence_WL-SBCW (rev22a).zip \| 871.9 KB EAG Eagle_WL-SBCW (rev22a).lbr \| 22.7 KB KIC KiCad_WL-SBCW (rev26a).zip \| 205.5 KB IGS IGS_150066RG74000 (rev1).igs \| 2 MB STP STP_150066RG74000 (rev1).stp \| 469.2 KB PSP PSpice_WL-SBCW (rev22a).zip \| 4.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]630 nm	–	–	–	Dominant Wavelength (Green) [typ.]520 nm	Dominant Wavelength (Red) [typ.]625 nm	–	–	–	Luminous Intensity (Green) [typ.]560 mcd	Luminous Intensity (Red) [typ.]300 mcd	–	–	–	Forward Voltage (Green) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	–	–	–	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]130 °	Demoboard –	Design Kit –	–Check availability
	150066SV74000	SPECSuper Red & Bright Green, –, –	Availability –	Downloads7 files ALT WL-SBCW (rev22c).IntLib \| 216.5 KB CDS Cadence_WL-SBCW (rev22a).zip \| 871.9 KB EAG Eagle_WL-SBCW (rev22a).lbr \| 22.7 KB KIC KiCad_WL-SBCW (rev26a).zip \| 205.5 KB IGS Download_IGS_WL-SBCW-0606 (rev1).igs \| 2 MB STP Download_STP_WL-SBCW-0606 (rev1).stp \| 469.2 KB PSP PSpice_WL-SBCW (rev22a).zip \| 4.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red & Bright Green	–	–	Peak Wavelength (Super Red) [typ.]645 nm	Peak Wavelength (Bright Green) [typ.]572 nm	–	–	–	Dominant Wavelength (Super Red) [typ.]630 nm	Dominant Wavelength (Bright Green) [typ.]570 nm	–	–	–	Luminous Intensity (Super Red) [typ.]55 mcd	Luminous Intensity (Bright Green) [typ.]30 mcd	–	–	–	Forward Voltage (Super Red) [typ.]2 V	Forward Voltage (Bright Green) [typ.]2 V	–	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °	Demoboard 9999003	Design Kit 150155	–Check availability
	150121SV74000	SPECSuper Red & Bright Green, –, –	Availability –	Downloads7 files ALT WL-SBCW (rev22c).IntLib \| 216.5 KB CDS Cadence_WL-SBCW (rev22a).zip \| 871.9 KB EAG Eagle_WL-SBCW (rev22a).lbr \| 22.7 KB KIC KiCad_WL-SBCW (rev26a).zip \| 205.5 KB IGS Download_IGS_WL-SBCW-1210 (rev1).igs \| 2.2 MB STP Download_STP_WL-SBCW-1210 (rev1).stp \| 767.4 KB PSP PSpice_WL-SBCW (rev22a).zip \| 4.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red & Bright Green	–	–	Peak Wavelength (Super Red) [typ.]645 nm	Peak Wavelength (Bright Green) [typ.]572 nm	–	–	–	Dominant Wavelength (Super Red) [typ.]630 nm	Dominant Wavelength (Bright Green) [typ.]570 nm	–	–	–	Luminous Intensity (Super Red) [typ.]55 mcd	Luminous Intensity (Bright Green) [typ.]30 mcd	–	–	–	Forward Voltage (Super Red) [typ.]2 V	Forward Voltage (Bright Green) [typ.]2 V	–	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °	Demoboard 9999003	Design Kit 150155	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View

Demoboard Visible LEDs

Learn more

LED Application Guide - Learn more about handling, storage and much more
PDF
