WL-SBCD SMT Bi-color Chip LED Diffused

Size	Dimensions	L (mm)	W (mm)	H (mm)

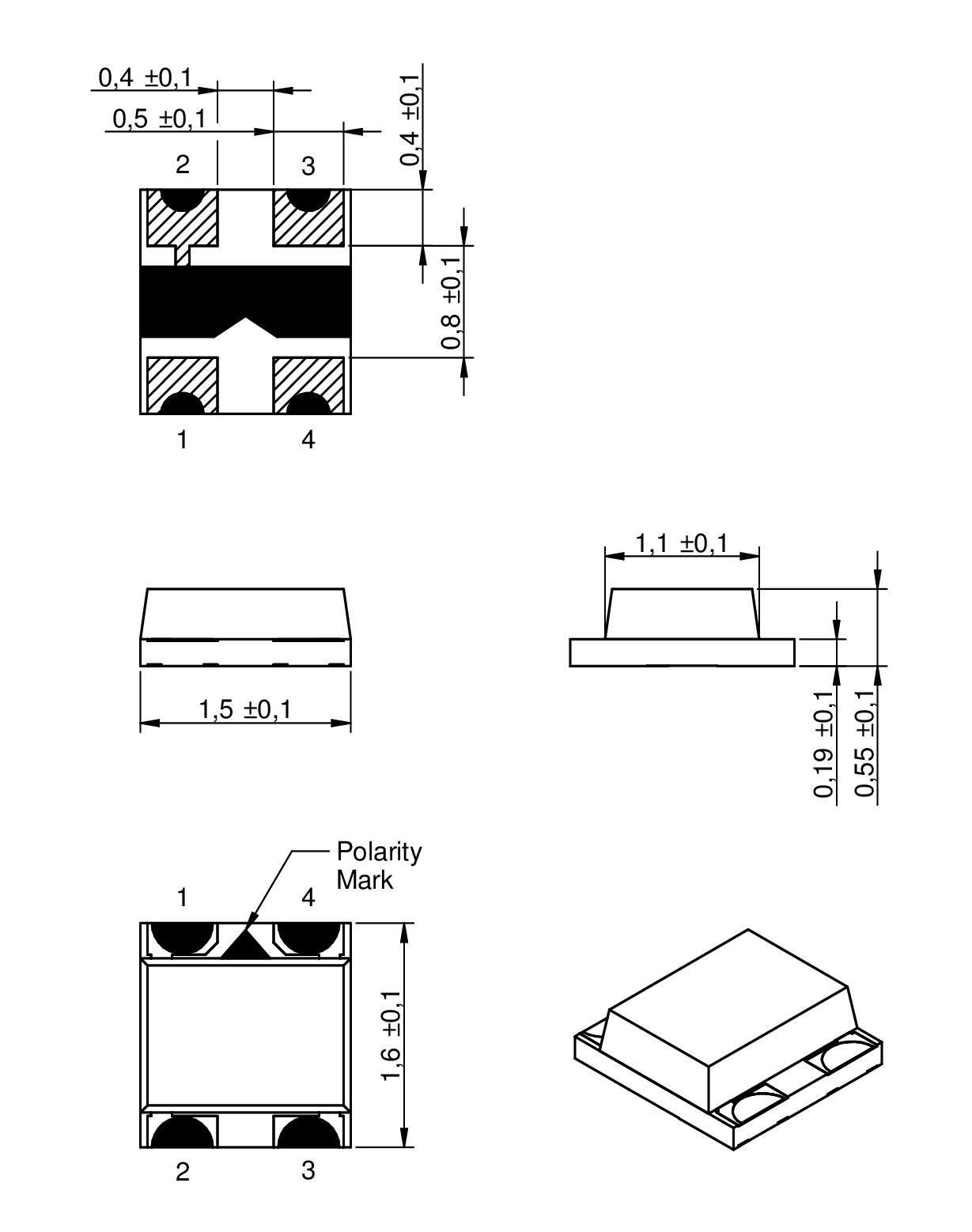

0606		1.6	1.5	0.55

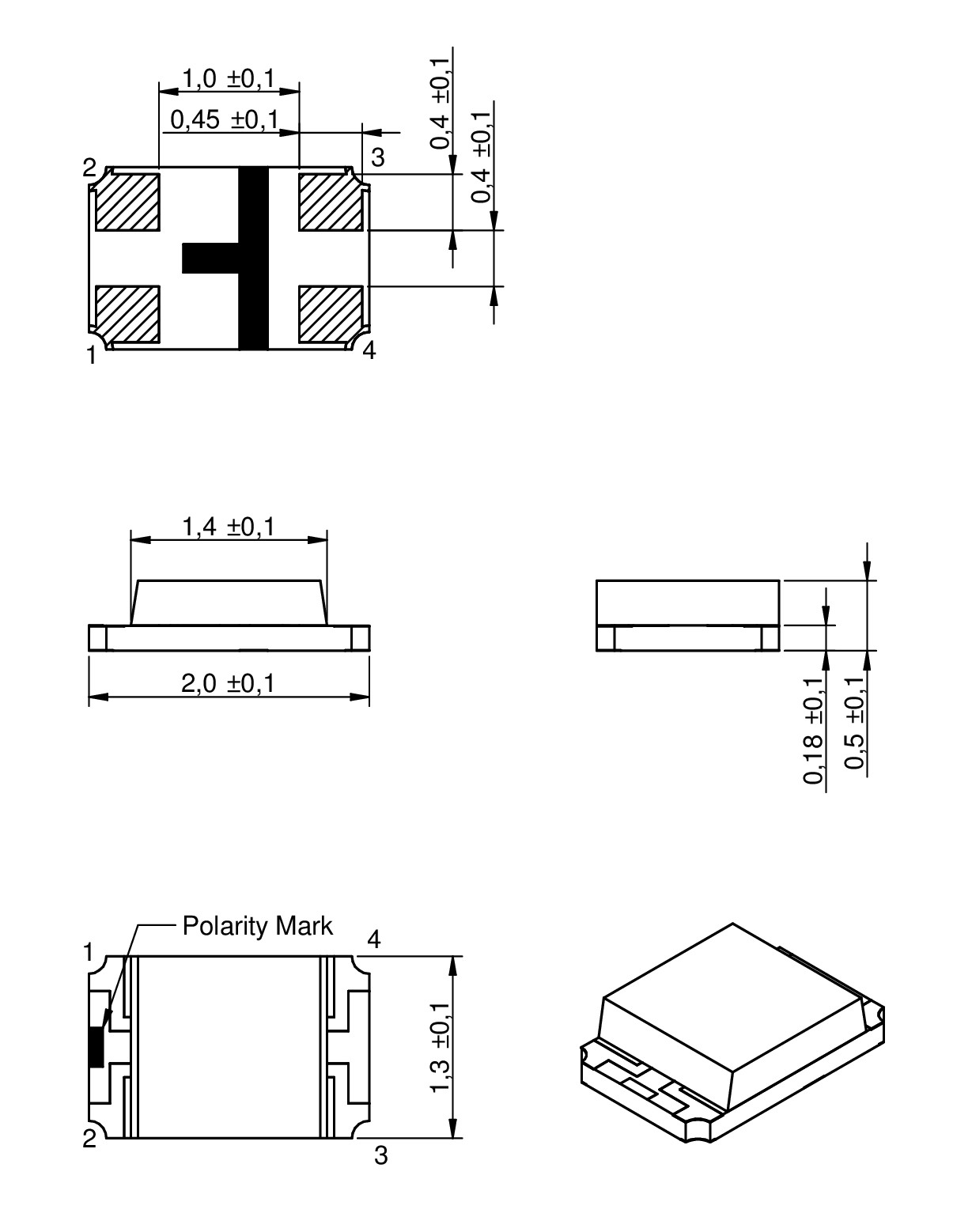

0805		2	1.3	0.5

LTSpice files

LT
LTSpice_WL-SBCD (rev22a).zip
|
5.2 KB

Characteristics

Two chips in one package
Diffused lens
Industry standard footprint
High efficiency
Low power consumption
Wide viewing angle
Thin, 0.5 mm height
Packaged in standard tape and reel 7"
Compatible with automatic placement machine

Applications

Backlighting applications
Status indicator
Front panel indicators
Push button backlighting
Symbol and switch backlighting

Products

All

0606

0805

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak V typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom V typ.}(nm)	λ_{Dom R typ.}(nm)	V_{F V typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Samples
	150080YV54050	Yellow & Bright Green, 575 nm, –	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150080xx54050 (rev1).igs \| 1.4 MB STP Download_STEP_150080xx54050 (rev1).stp \| 379.8 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorYellow & Bright Green	Peak Wavelength (Bright Green) [typ.]575 nm	–	Dominant Wavelength (Bright Green) [typ.]573 nm	–	Forward Voltage (Bright Green) [typ.]2 V	–	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °
	150066YV54050	Yellow & Bright Green, 575 nm, –	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150066xx54050 (rev1).igs \| 1.1 MB STP Download_STEP_150066xx54050 (rev1).stp \| 354.2 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorYellow & Bright Green	Peak Wavelength (Bright Green) [typ.]575 nm	–	Dominant Wavelength (Bright Green) [typ.]573 nm	–	Forward Voltage (Bright Green) [typ.]2 V	–	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °
	150080RV54050	Red & Bright Green, 575 nm, 632 nm	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150080xx54050 (rev1).igs \| 1.4 MB STP Download_STEP_150080xx54050 (rev1).stp \| 379.8 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Bright Green	Peak Wavelength (Bright Green) [typ.]575 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Bright Green) [typ.]573 nm	Dominant Wavelength (Red) [typ.]624 nm	Forward Voltage (Bright Green) [typ.]2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °
	150066RG54050	Red & Green, –, 632 nm	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150066xx54050 (rev1).igs \| 1.1 MB STP Download_STEP_150066xx54050 (rev1).stp \| 354.2 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green	–	Peak Wavelength (Red) [typ.]632 nm	–	Dominant Wavelength (Red) [typ.]624 nm	–	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]130 °
	150066RV54050	Red & Bright Green, 575 nm, 632 nm	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150066xx54050 (rev1).igs \| 1.1 MB STP Download_STEP_150066xx54050 (rev1).stp \| 354.2 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Bright Green	Peak Wavelength (Bright Green) [typ.]575 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Bright Green) [typ.]573 nm	Dominant Wavelength (Red) [typ.]624 nm	Forward Voltage (Bright Green) [typ.]2 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]130 °
	150080SG54050	Super Red & Green, –, –	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150080xx54050 (rev1).igs \| 1.4 MB STP Download_STEP_150080xx54050 (rev1).stp \| 379.8 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorSuper Red & Green	–	–	–	–	–	–	Chip TechnologyAlInGaP + GaN	Viewing Angle Phi 0° [typ.]130 °
