WL-SBCC SMT Bi-color Chip LED Compact

WL-SBCC SMT Bi-color Chip LED Compact

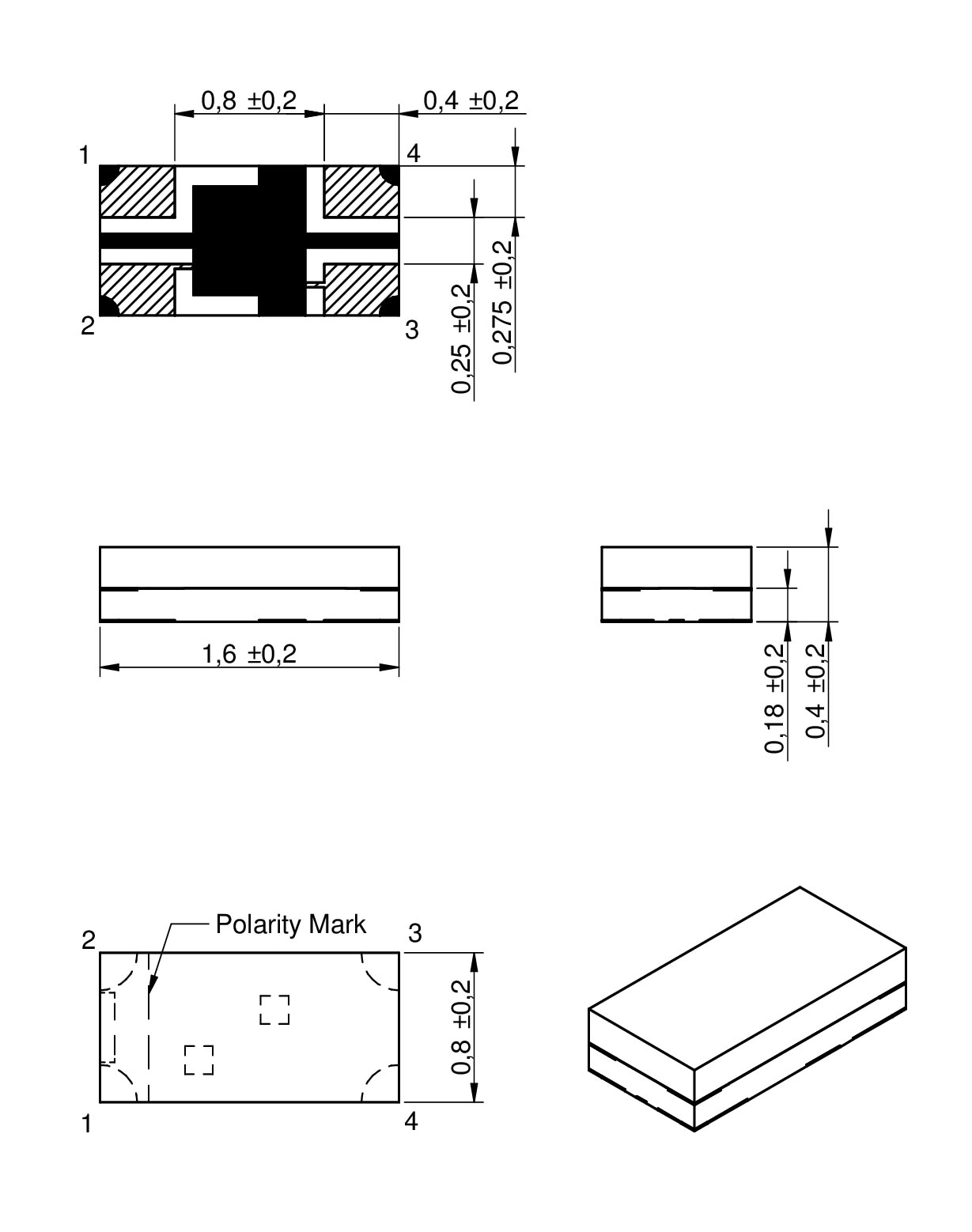

SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
0603
 1.6 0.8 0.4 SMT

LTSpice files

Characteristics

  • Two chips in one packaging
  • Small size
  • Industry standard footprint
  • High efficiency
  • Low power consumption
  • Wide viewing angle
  • Small package for exceptional brightness
  • Packaged in standard tape and reel 7"

Applications

  • Backlighting applications
  • Status indicator
  • Front panel indicators
  • Push button backlighting
  • Symbol and switch backlighting

Products

0603
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Emitting Color
λPeak R typ.(nm)
λPeak V typ.(nm)
λDom R typ.(nm)
λDom V typ.(nm)
IV R typ.(mcd)
IV V typ.(mcd)
VF R typ.(V)
VF V typ.(V)
Chip Technology
2θ50% typ.(°)
Design Kit
Samples
WL-SBCC SMT Bi-color Chip LED Compact
150060RV75240
Red & Bright Green, 630 nm, 572 nm
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Emitting ColorRed & Bright Green
Peak Wavelength (Red) [typ.]630 nm
Peak Wavelength (Bright Green) [typ.]572 nm
Dominant Wavelength (Red) [typ.]625 nm
Dominant Wavelength (Bright Green) [typ.]570 nm
Luminous Intensity (Red) [typ.]230 mcd
Luminous Intensity (Bright Green) [typ.]90 mcd
Forward Voltage (Red) [typ.]2 V
Forward Voltage (Bright Green) [typ.]2 V
Chip TechnologyAlInGaP
Viewing Angle Phi 0° [typ.]140 °
Design Kit
150155

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View

Learn more
