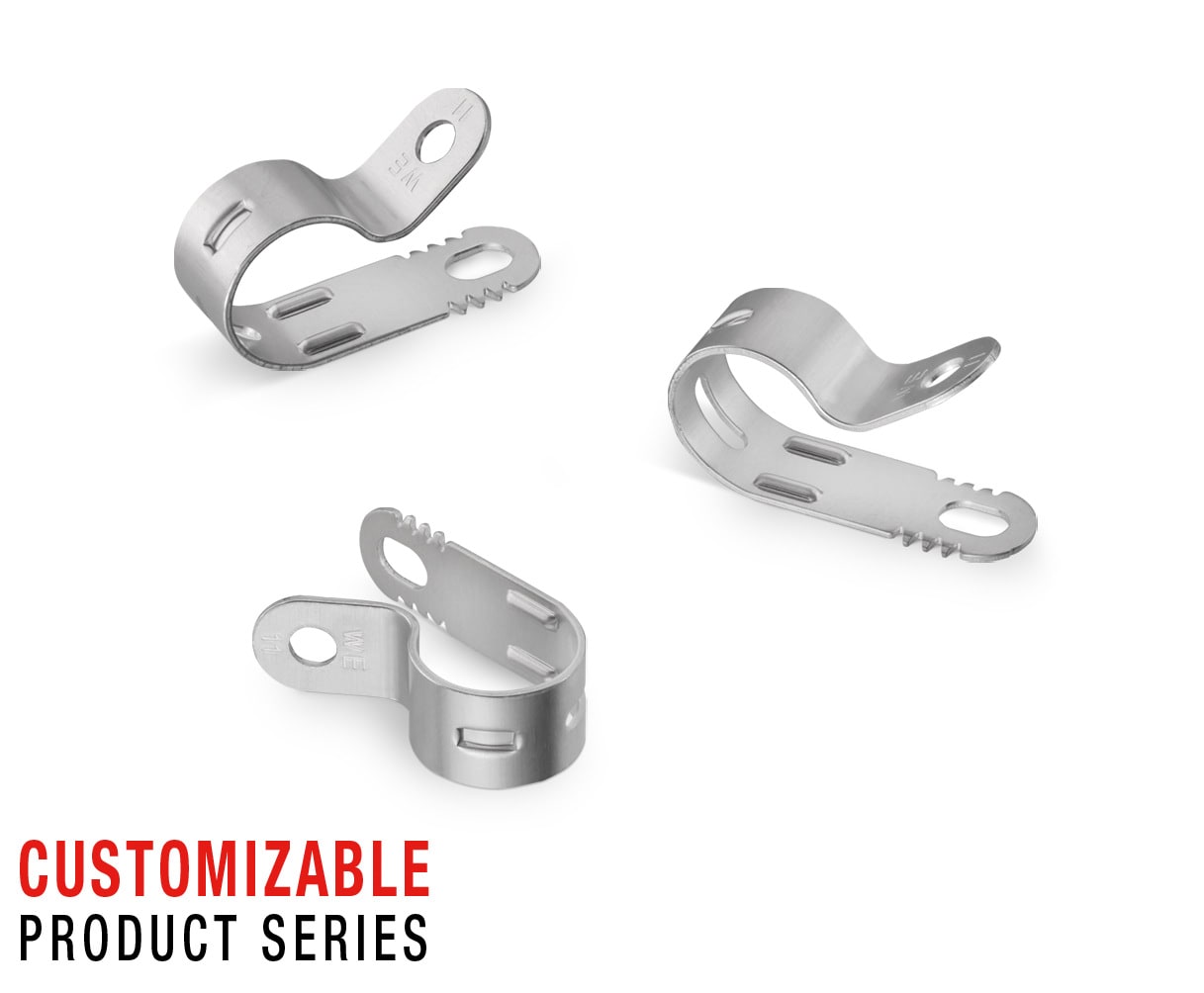

WE-EEL Earthing Metal Clip
Characteristics
- Custom Dimensions available
- For different cable sizes as standard available
- Contact resistance less than 0,01 Ω
- Operating temperature -40°C - +105°C
- Easy placing on PCB screw with M4 screw
Applications
- Low impedance connection of the cable shield to ground, reducing the EMI of the cable.
- Connection to PCB, metal plane, enclosure
- 360° grounding
Products
Filter by
show in
article in 0 product lines

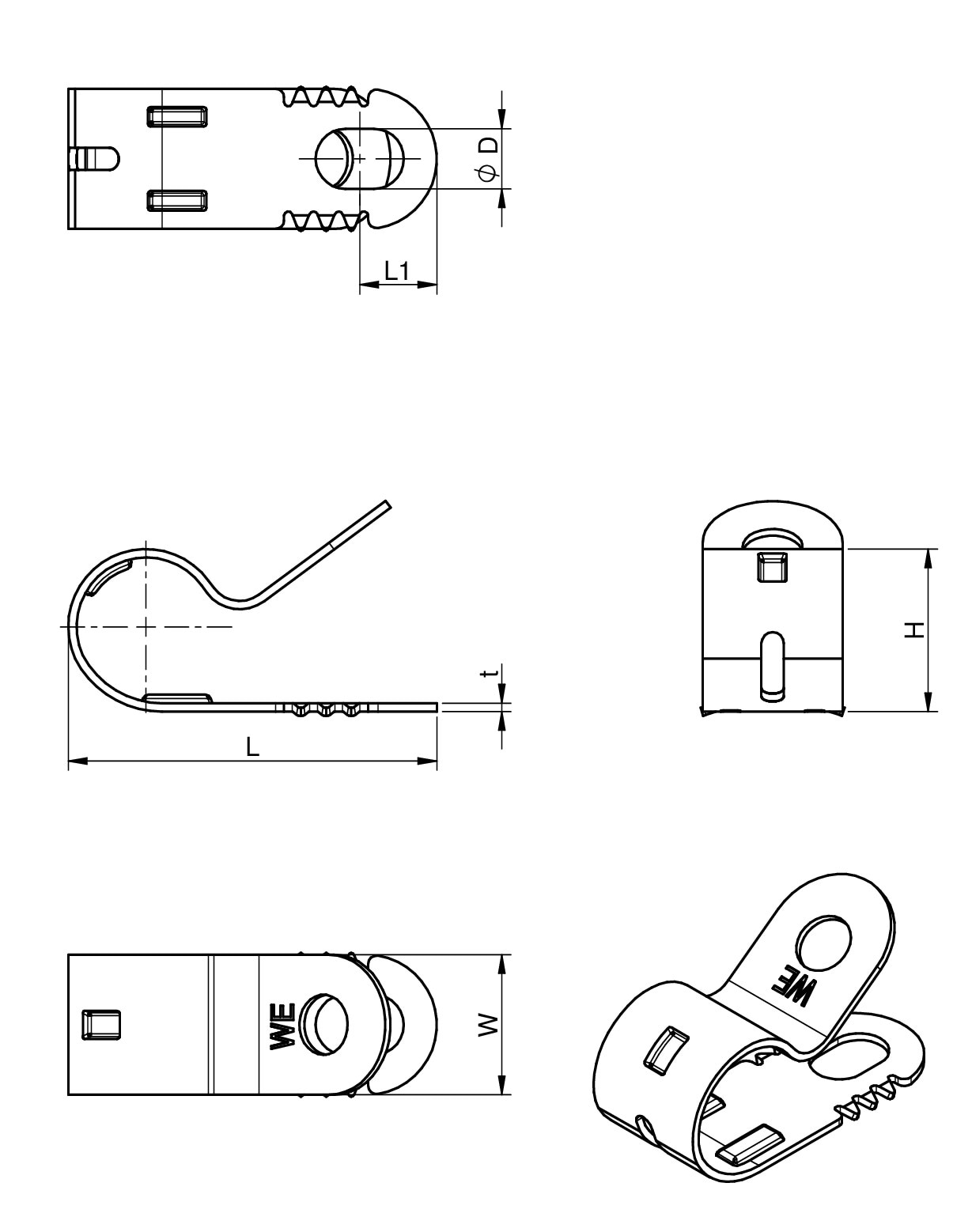

Reset allOrder Code | Datasheet | Downloads | Status | L(mm) | H(mm) | W(mm) | Ø Cable(mm) | Material | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|
7425103 | SPEC16.8 mm, 5.15 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length16.8 mm | Height5.15 mm | Width10 mm | Cable Diameter 2.5 - 3.5 | MaterialAluminium | –Check availability | |
7425104 | SPEC19.2 mm, 6.4 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length19.2 mm | Height6.4 mm | Width10 mm | Cable Diameter 3.5 - 4.5 | MaterialAluminium | –Check availability | |
7425105 | SPEC22.5 mm, 7.7 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length22.5 mm | Height7.7 mm | Width10 mm | Cable Diameter 4.5 - 5.5 | MaterialAluminium | –Check availability | |
7425106 | SPEC23.4 mm, 9 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length23.4 mm | Height9 mm | Width10 mm | Cable Diameter 5.5 - 6.5 | MaterialAluminium | –Check availability | |
7425107 | SPEC24.8 mm, 10.32 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length24.8 mm | Height10.32 mm | Width10 mm | Cable Diameter 6.5 - 7.5 | MaterialAluminium | –Check availability | |
7425108 | SPEC26.3 mm, 11.6 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length26.3 mm | Height11.6 mm | Width10 mm | Cable Diameter 8 - 9 | MaterialAluminium | –Check availability | |
7425109 | SPEC29.95 mm, 14.65 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length29.95 mm | Height14.65 mm | Width10 mm | Cable Diameter 9.5 - 11 | MaterialAluminium | –Check availability | |
7425111 | SPEC32.45 mm, 15.9 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length32.45 mm | Height15.9 mm | Width10 mm | Cable Diameter 10.3 - 11.5 | MaterialAluminium | –Check availability | |
7425113 | SPEC34.6 mm, 18.55 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length34.6 mm | Height18.55 mm | Width10 mm | Cable Diameter 12 - 14 | MaterialAluminium | –Check availability | |
7425115 | SPEC38.4 mm, 21.35 mm, 10 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length38.4 mm | Height21.35 mm | Width10 mm | Cable Diameter 14.5 - 16.5 | MaterialAluminium | –Check availability | |
7425117 | SPEC42.92 mm, 25.15 mm, 13 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length42.92 mm | Height25.15 mm | Width13 mm | Cable Diameter 16.5 - 18.5 | MaterialAluminium | –Check availability | |
7425120 | SPEC46.2 mm, 27.5 mm, 13 mm | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Length46.2 mm | Height27.5 mm | Width13 mm | Cable Diameter 19 - 20.5 | MaterialAluminium | –Check availability |
