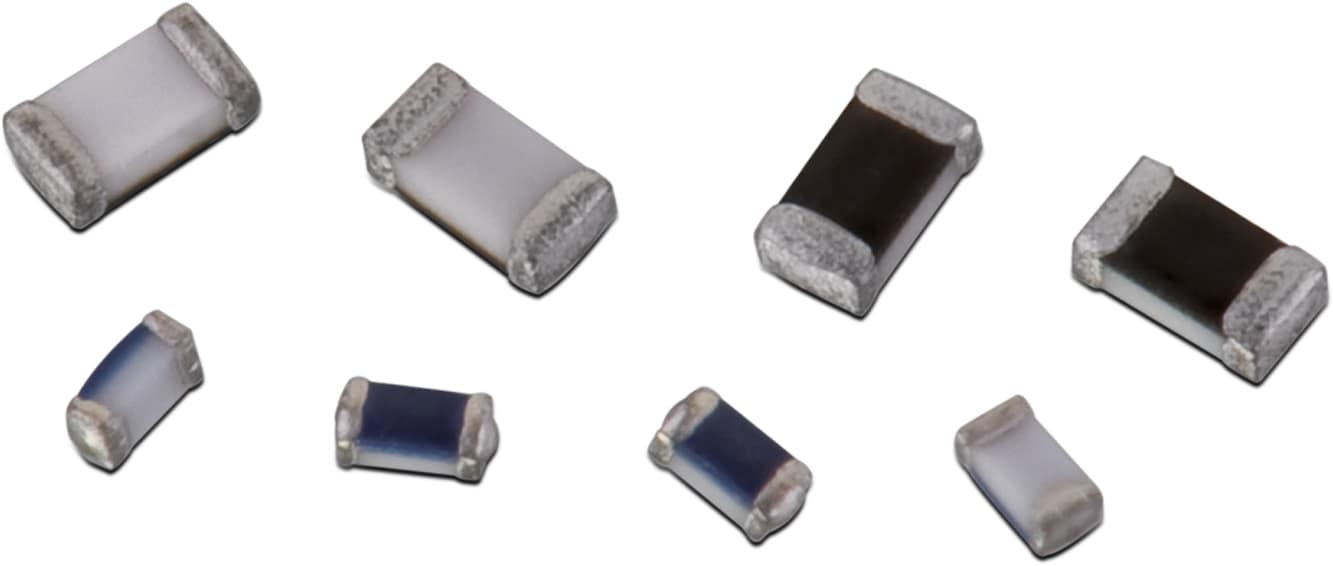

WE-VE ULC ESD Suppressor

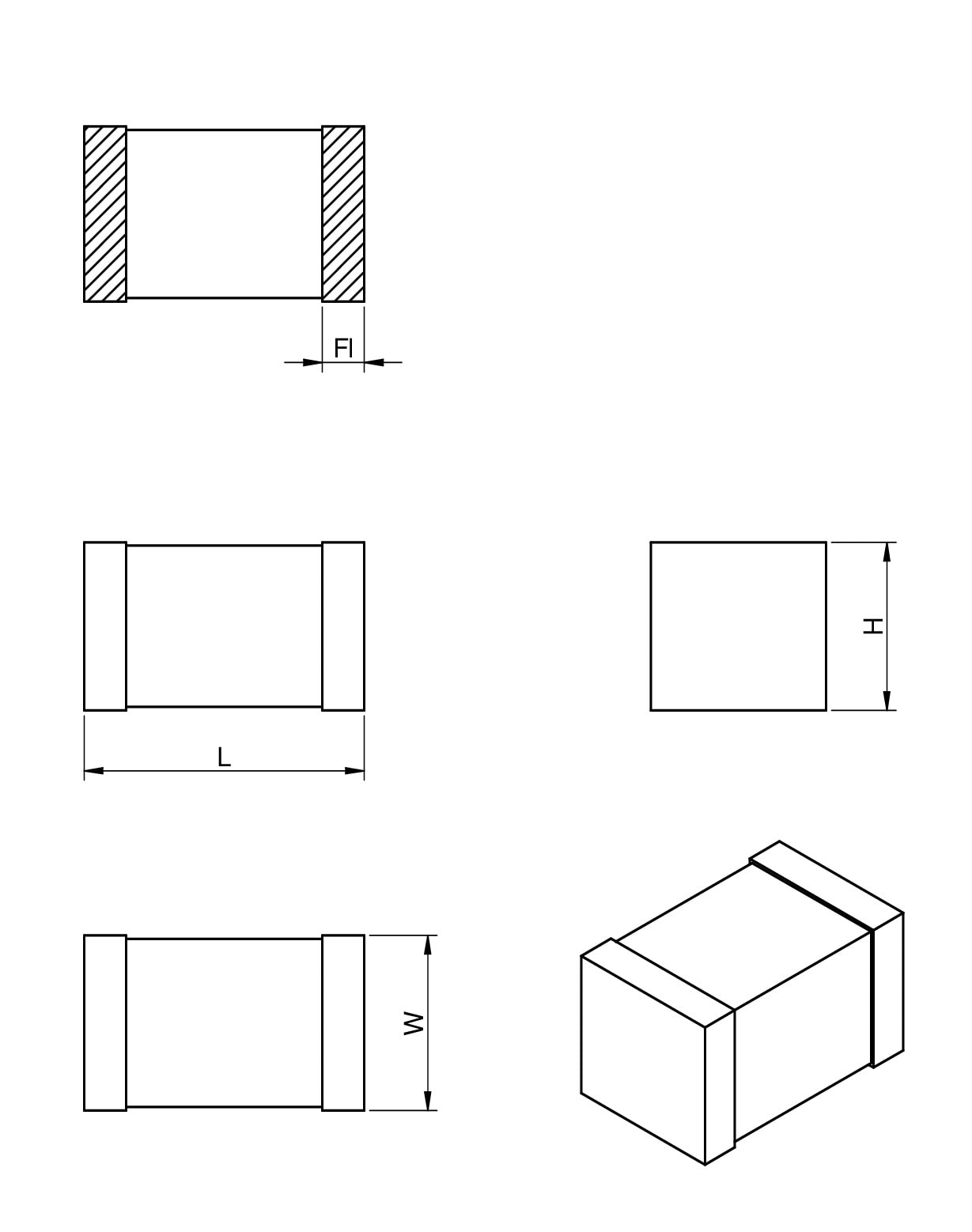

Size	Dimensions	L (mm)	W (mm)	H (mm)	Fl (mm)	Mount
0402		1	0.5	0.34	0.2	SMT
0603		1.6	0.85	0.51	0.3	SMT

LTSpice files

LT
LTspice_WE-VE_ULC (rev25a).zip
|
2.8 KB

Characteristics

Fast response time
No leakage current
Low clamping voltage
Almost no energy consumption in stand-by mode
Excellent absorption for ESD-impulses
Operating temperature: –40 ºC to +85 ºC
Nickel barrier

Applications

Protection of data lines
Protection of bus systems
Protection of semiconductors
ESD protection in accordance with EN 61000-4-2:
– 8 kV contact discharge
– 15 kV air discharge

Application Notes

Products

All

0402

0603

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Simulation	Downloads	Status	C_{Ch typ.}(pF)	C_{Ch max.}(pF)	V_{Ch min.}(V)	V_{Ch max.}(V)	V_{Ch Clamp ESD}(V)	V_{Trig ESD}(V)	V_{ESD Contact}(kV)	Size	Design Kit	SamplesAvailability & Sample
82307050029	SPEC0.2 pF, 0.8 pF, -5 V	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-VE_ULC (rev22a).IntLib \| 73.5 KB CDS Cadence_WE-VE ULC (rev21a).zip \| 311.6 KB EAG Eagle_WE-VE-ULC (rev26a).lbr \| 18.2 KB KIC KiCad_WE-VE-ULC (rev26b).zip \| 28.4 KB ZUK Cadstar_WE-VE ULC (rev21a).zip \| 5 KB CAD files ZIP IGS WE-VE_ULC_0402_5 (rev1).igs \| 157.9 KB STP WE-VE_ULC_0402_5 (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE_ULC (rev25a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.2 pF	(Channel) Input Capacitance [max.]0.8 pF	Channel Operating Voltage [min.]-5 V	Channel Operating Voltage [max.]5 V	Channel ESD Clamping Voltage17 V	Triggering Voltage ESD-Method100 V	ESD Contact Discharge Capability8 kV	Size0402	Design Kit 823999	–Check availability
82306050029	SPEC0.2 pF, –, -5 V	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-VE_ULC (rev22a).IntLib \| 73.5 KB CDS Cadence_WE-VE ULC (rev21a).zip \| 311.6 KB EAG Eagle_WE-VE-ULC (rev26a).lbr \| 18.2 KB KIC KiCad_WE-VE-ULC (rev26b).zip \| 28.4 KB ZUK Cadstar_WE-VE ULC (rev21a).zip \| 5 KB CAD files ZIP IGS WE-VE_ULC_0603_5 (rev1).igs \| 83.6 KB STP WE-VE_ULC_0603_5 (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE_ULC (rev25a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.2 pF	–	Channel Operating Voltage [min.]-5 V	Channel Operating Voltage [max.]5 V	–	Triggering Voltage ESD-Method150 V	ESD Contact Discharge Capability8 kV	Size0603	Design Kit 823999	–Check availability
82306120029	SPEC0.2 pF, –, -12 V	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-VE_ULC (rev22a).IntLib \| 73.5 KB CDS Cadence_WE-VE ULC (rev21a).zip \| 311.6 KB EAG Eagle_WE-VE-ULC (rev26a).lbr \| 18.2 KB KIC KiCad_WE-VE-ULC (rev26b).zip \| 28.4 KB ZUK Cadstar_WE-VE ULC (rev21a).zip \| 5 KB CAD files ZIP IGS WE-VE_ULC_0603_5 (rev1).igs \| 83.6 KB STP WE-VE_ULC_0603_5 (rev1).stp \| 33.6 KB Electric models ZIP PSP PSpice_WE-VE_ULC (rev25a).zip \| 4.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.2 pF	–	Channel Operating Voltage [min.]-12 V	Channel Operating Voltage [max.]12 V	–	Triggering Voltage ESD-Method150 V	ESD Contact Discharge Capability8 kV	Size0603	Design Kit 823999	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit ESD PROTECTION
