WE-TOF

Characteristics

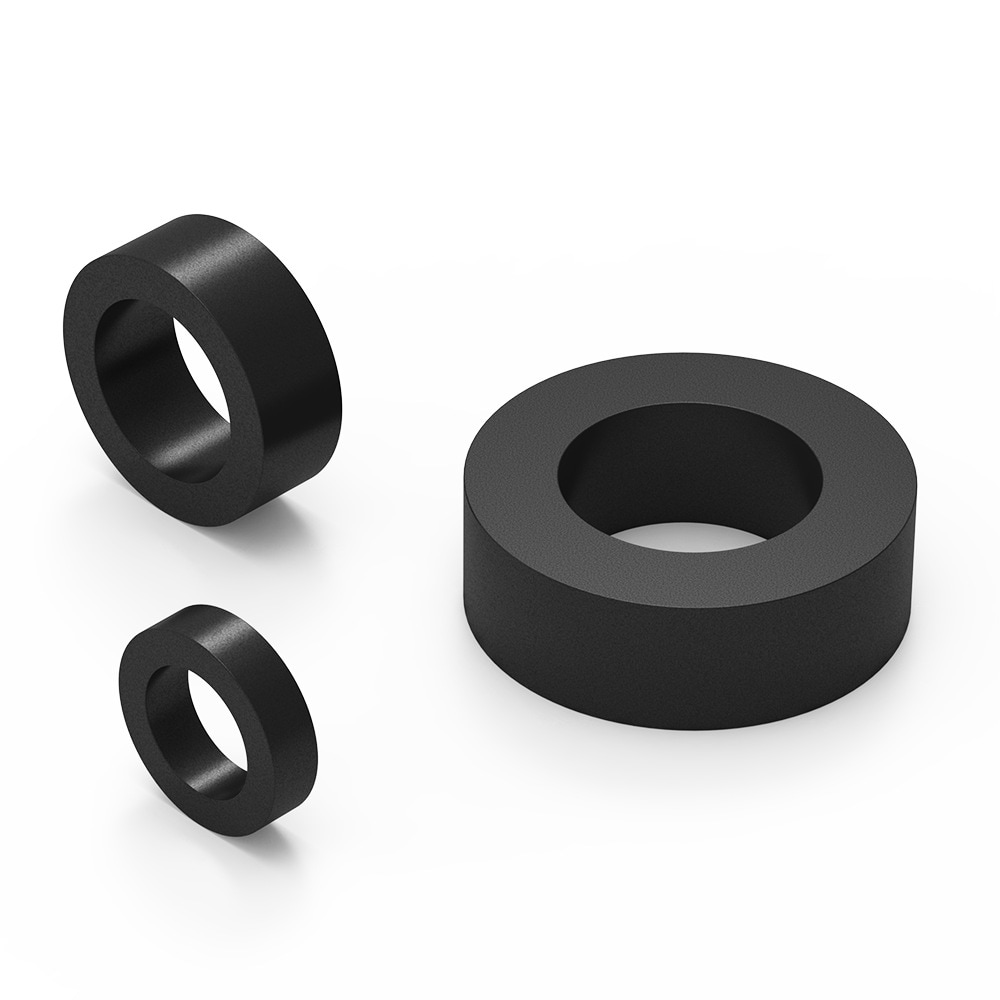

Ferrite cores made of materials optimized for high-frequency attenuation
Designed for applications with large cable diameters or where multiple cable turns are needed, this ferrite series offers robust EMI suppression with extended mechanical compatibility
Available in a range of permeability values (μi = 380 to 1500) to ensure targeted suppression across critical frequency bands
Wide operating temperature range: –25 °C to +125 °C, ensuring stable performance in demanding environments

Applications

Wires
Coaxial cables
Wire-wrapping cables
Multiconductor wires
Cable e.g. of power supplies, data and gage signal lines

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

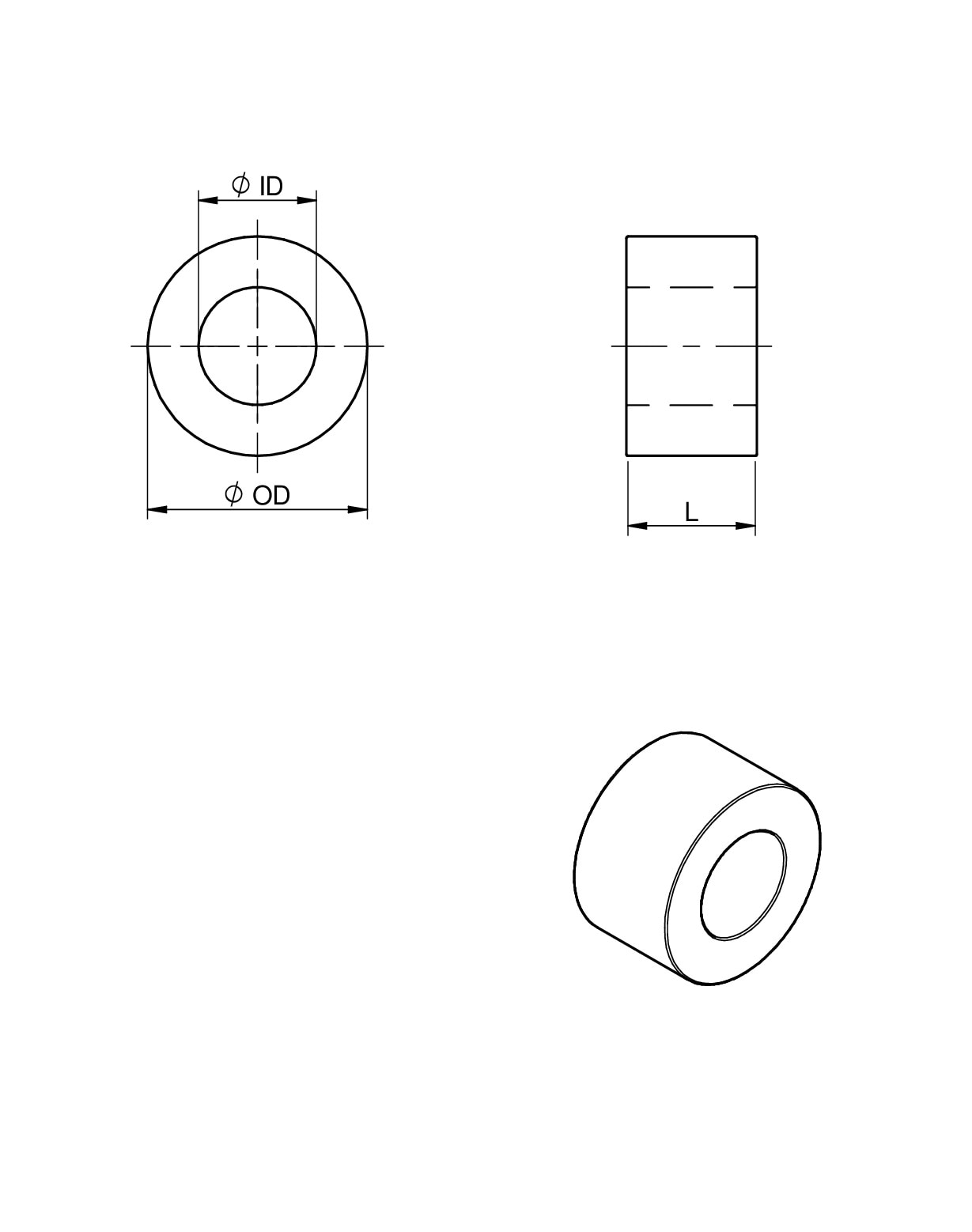

Order Code	Datasheet	Simulation	Downloads	Status	Ø Cable max. (mm)	Ø OD (mm)	Ø ID (mm)	L (mm)	Z @ 25 MHz 1 turn (Ω)	Z @ 100 MHz 1 turn (Ω)	Z @ 100 MHz 2 turns (Ω)	Z @ 25 MHz 2 turns (Ω)	Material	Design Kit	Alpha-Rack
74270111	3 mm, 7.3 mm, 3.3 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270111 (rev1).igs \| 109.2 KB STP 74270111 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 3 mm	Outer Diameter 7.3 mm	Inner Diameter 3.3 mm	Length 4.3 mm	Impedance @ 25 MHz 1 turn 32 Ω	Impedance @ 100 MHz 1 turn 48 Ω	Impedance @ 100 MHz 2 turns 151 Ω	Impedance @ 25 MHz 2 turns 123 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
742701712	4.5 mm, 9 mm, 5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701712 (rev1).igs \| 114.5 KB STP 742701712 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 4.5 mm	Outer Diameter 9 mm	Inner Diameter 5 mm	Length 8 mm	Impedance @ 25 MHz 1 turn 34 Ω	Impedance @ 100 MHz 1 turn 56 Ω	Impedance @ 100 MHz 2 turns 203 Ω	Impedance @ 25 MHz 2 turns 134 Ω	Material 7 W 700	Design Kit 748001	Alpha-Rack –
742701121	4.6 mm, 9.5 mm, 5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701121 (rev1).igs \| 113.3 KB STP 742701121 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 4.6 mm	Outer Diameter 9.5 mm	Inner Diameter 5 mm	Length 14.5 mm	Impedance @ 25 MHz 1 turn 75 Ω	Impedance @ 100 MHz 1 turn 109 Ω	Impedance @ 100 MHz 2 turns 370 Ω	Impedance @ 25 MHz 2 turns 195 Ω	Material 4 W 620	Design Kit –	Alpha-Rack –
74270113	4.6 mm, 11.5 mm, 5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270113 (rev1).igs \| 114.7 KB STP 74270113 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 4.6 mm	Outer Diameter 11.5 mm	Inner Diameter 5 mm	Length 9 mm	Impedance @ 25 MHz 1 turn 62 Ω	Impedance @ 100 MHz 1 turn 91 Ω	–	–	Material 4 W 620	Design Kit 742701	Alpha-Rack –
74270112	4.6 mm, 9 mm, 5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270112 (rev1).igs \| 103.5 KB STP 74270112 (rev1).stp \| 15.2 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 4.6 mm	Outer Diameter 9 mm	Inner Diameter 5 mm	Length 8 mm	Impedance @ 25 MHz 1 turn 33 Ω	Impedance @ 100 MHz 1 turn 63 Ω	Impedance @ 100 MHz 2 turns 203 Ω	Impedance @ 25 MHz 2 turns 134 Ω	Material 4 W 620	Design Kit –	Alpha-Rack –
74270161	4.7 mm, 10 mm, 5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270161 (rev1).igs \| 114.5 KB STP 74270161 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 4.7 mm	Outer Diameter 10 mm	Inner Diameter 5 mm	Length 3.7 mm	Impedance @ 25 MHz 1 turn 21 Ω	Impedance @ 100 MHz 1 turn 36 Ω	Impedance @ 100 MHz 2 turns 136 Ω	Impedance @ 25 MHz 2 turns 115 Ω	Material 3 W 800	Design Kit –	Alpha-Rack –
74270176	4.7 mm, 10 mm, 5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270176 (rev1).igs \| 103.9 KB STP 74270176 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 4.7 mm	Outer Diameter 10 mm	Inner Diameter 5 mm	Length 5 mm	Impedance @ 25 MHz 1 turn 25 Ω	Impedance @ 100 MHz 1 turn 44 Ω	Impedance @ 100 MHz 2 turns 170 Ω	Impedance @ 25 MHz 2 turns 105 Ω	Material 7 W 850	Design Kit –	Alpha-Rack –
74270106	6.5 mm, 13.2 mm, 7.1 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270106 (rev1).igs \| 111.1 KB STP 74270106 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 6.5 mm	Outer Diameter 13.2 mm	Inner Diameter 7.1 mm	Length 12.7 mm	Impedance @ 25 MHz 1 turn 65 Ω	Impedance @ 100 MHz 1 turn 93 Ω	Impedance @ 100 MHz 2 turns 342 Ω	Impedance @ 25 MHz 2 turns 272 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
742701716	7.5 mm, 12.7 mm, 7.9 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701716 (rev1).igs \| 110.9 KB STP 742701716 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 7.5 mm	Outer Diameter 12.7 mm	Inner Diameter 7.9 mm	Length 6.35 mm	Impedance @ 25 MHz 1 turn 22 Ω	Impedance @ 100 MHz 1 turn 42 Ω	Impedance @ 100 MHz 2 turns 175 Ω	Impedance @ 25 MHz 2 turns 91 Ω	Material 7 W 380	Design Kit –	Alpha-Rack –
7427010	7.6 mm, 16.5 mm, 8 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427010 (rev1).igs \| 113.2 KB STP 7427010 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 7.6 mm	Outer Diameter 16.5 mm	Inner Diameter 8 mm	Length 13 mm	Impedance @ 25 MHz 1 turn 75 Ω	Impedance @ 100 MHz 1 turn 107 Ω	Impedance @ 100 MHz 2 turns 513 Ω	Impedance @ 25 MHz 2 turns 330 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
7427011	7.6 mm, 16.5 mm, 8 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427011 (rev1).igs \| 113.2 KB STP 7427011 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 7.6 mm	Outer Diameter 16.5 mm	Inner Diameter 8 mm	Length 16 mm	Impedance @ 25 MHz 1 turn 95 Ω	Impedance @ 100 MHz 1 turn 134 Ω	Impedance @ 100 MHz 2 turns 574 Ω	Impedance @ 25 MHz 2 turns 395 Ω	Material 4 W 620	Design Kit –	Alpha-Rack –
742701707	9.5 mm, 20 mm, 10 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701707 (rev1).igs \| 119.9 KB STP 742701707 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 9.5 mm	Outer Diameter 20 mm	Inner Diameter 10 mm	Length 10 mm	Impedance @ 25 MHz 1 turn 47 Ω	Impedance @ 100 MHz 1 turn 78 Ω	Impedance @ 100 MHz 2 turns 305 Ω	Impedance @ 25 MHz 2 turns 191 Ω	Material 7 W 850	Design Kit –	Alpha-Rack –
74270117	9.6 mm, 14 mm, 10 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270117 (rev1).igs \| 119.8 KB STP 74270117 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 9.6 mm	Outer Diameter 14 mm	Inner Diameter 10 mm	Length 8 mm	Impedance @ 25 MHz 1 turn 21 Ω	Impedance @ 100 MHz 1 turn 43 Ω	Impedance @ 100 MHz 2 turns 343 Ω	Impedance @ 25 MHz 2 turns 215 Ω	Material 3 W 800	Design Kit 742701	Alpha-Rack –
7427018	9.6 mm, 18.6 mm, 10.2 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427018 (rev1).igs \| 119.9 KB STP 7427018 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 9.6 mm	Outer Diameter 18.6 mm	Inner Diameter 10.2 mm	Length 6 mm	Impedance @ 25 MHz 1 turn 34 Ω	Impedance @ 100 MHz 1 turn 45 Ω	Impedance @ 100 MHz 2 turns 163 Ω	Impedance @ 25 MHz 2 turns 124 Ω	Material 4 W 1500	Design Kit –	Alpha-Rack –
74270182	10 mm, 18.6 mm, 10.2 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270182 (rev1).igs \| 119.9 KB STP 74270182 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 10 mm	Outer Diameter 18.6 mm	Inner Diameter 10.2 mm	Length 10 mm	Impedance @ 25 MHz 1 turn 48 Ω	Impedance @ 100 MHz 1 turn 67 Ω	Impedance @ 100 MHz 2 turns 265 Ω	Impedance @ 25 MHz 2 turns 200 Ω	Material 4 W 1500	Design Kit –	Alpha-Rack –
74270181	10.3 mm, 17.5 mm, 10.7 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270181 (rev1).igs \| 116.5 KB STP 74270181 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 10.3 mm	Outer Diameter 17.5 mm	Inner Diameter 10.7 mm	Length 12.7 mm	Impedance @ 25 MHz 1 turn 48 Ω	Impedance @ 100 MHz 1 turn 67 Ω	Impedance @ 100 MHz 2 turns 307 Ω	Impedance @ 25 MHz 2 turns 237 Ω	Material 4 W 1500	Design Kit 742701	Alpha-Rack –
74270121	10.5 mm, 19 mm, 11.5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270121 (rev1).igs \| 119.8 KB STP 74270121 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 10.5 mm	Outer Diameter 19 mm	Inner Diameter 11.5 mm	Length 8 mm	Impedance @ 25 MHz 1 turn 33 Ω	Impedance @ 100 MHz 1 turn 54 Ω	Impedance @ 100 MHz 2 turns 70 Ω	Impedance @ 25 MHz 2 turns 40 Ω	Material 4 W 620	Design Kit –	Alpha-Rack –
74270110	11.5 mm, 16 mm, 12 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270110 (rev1).igs \| 118.7 KB STP 74270110 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 11.5 mm	Outer Diameter 16 mm	Inner Diameter 12 mm	Length 16 mm	Impedance @ 25 MHz 1 turn 40 Ω	Impedance @ 100 MHz 1 turn 56 Ω	Impedance @ 100 MHz 2 turns 195 Ω	Impedance @ 25 MHz 2 turns 131 Ω	Material 4 W 1500	Design Kit –	Alpha-Rack –
7427012	11.8 mm, 23.5 mm, 12.6 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427012 (rev1).igs \| 118.6 KB STP 7427012 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 11.8 mm	Outer Diameter 23.5 mm	Inner Diameter 12.6 mm	Length 14 mm	Impedance @ 25 MHz 1 turn 72 Ω	Impedance @ 100 MHz 1 turn 103 Ω	Impedance @ 100 MHz 2 turns 471 Ω	Impedance @ 25 MHz 2 turns 342 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
74270118	12.3 mm, 21.2 mm, 12.7 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270118 (rev1).igs \| 117.9 KB STP 74270118 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 12.3 mm	Outer Diameter 21.2 mm	Inner Diameter 12.7 mm	Length 6 mm	Impedance @ 25 MHz 1 turn 23 Ω	Impedance @ 100 MHz 1 turn 48 Ω	Impedance @ 100 MHz 2 turns 170 Ω	Impedance @ 25 MHz 2 turns 100 Ω	Material 3 W 800	Design Kit –	Alpha-Rack –
74270120	12.5 mm, 21 mm, 13 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270120 (rev1).igs \| 118.7 KB STP 74270120 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 12.5 mm	Outer Diameter 21 mm	Inner Diameter 13 mm	Length 12 mm	Impedance @ 25 MHz 1 turn 49 Ω	Impedance @ 100 MHz 1 turn 73 Ω	Impedance @ 100 MHz 2 turns 290 Ω	Impedance @ 25 MHz 2 turns 174 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
74270119	13.3 mm, 22.5 mm, 13.8 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270119 (rev1).igs \| 119.9 KB STP 74270119 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 13.3 mm	Outer Diameter 22.5 mm	Inner Diameter 13.8 mm	Length 6.4 mm	Impedance @ 25 MHz 1 turn 24 Ω	Impedance @ 100 MHz 1 turn 48 Ω	Impedance @ 100 MHz 2 turns 398 Ω	Impedance @ 25 MHz 2 turns 187 Ω	Material 3 W 800	Design Kit 742701	Alpha-Rack –
742701703	14.5 mm, 25 mm, 15 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701703 (rev1).igs \| 118.7 KB STP 742701703 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 14.5 mm	Outer Diameter 25 mm	Inner Diameter 15 mm	Length 12 mm	Impedance @ 25 MHz 1 turn 38 Ω	Impedance @ 100 MHz 1 turn 70 Ω	Impedance @ 100 MHz 2 turns 379 Ω	Impedance @ 25 MHz 2 turns 195 Ω	Material 7 W 380	Design Kit 742701	Alpha-Rack –
7427013	15.5 mm, 28 mm, 16 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427013 (rev1).igs \| 118.6 KB STP 7427013 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 15.5 mm	Outer Diameter 28 mm	Inner Diameter 16 mm	Length 13 mm	Impedance @ 25 MHz 1 turn 45 Ω	Impedance @ 100 MHz 1 turn 89 Ω	Impedance @ 100 MHz 2 turns 428 Ω	Impedance @ 25 MHz 2 turns 295 Ω	Material 3 W 800	Design Kit –	Alpha-Rack –
7427014	15.5 mm, 28 mm, 16 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427014 (rev1).igs \| 118.6 KB STP 7427014 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 15.5 mm	Outer Diameter 28 mm	Inner Diameter 16 mm	Length 20 mm	Impedance @ 25 MHz 1 turn 74 Ω	Impedance @ 100 MHz 1 turn 132 Ω	Impedance @ 100 MHz 2 turns 550 Ω	Impedance @ 25 MHz 2 turns 411 Ω	Material 3 W 800	Design Kit 742701	Alpha-Rack –
742701110	17.5 mm, 28 mm, 18 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701110 (rev1).igs \| 119.8 KB STP 742701110 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 17.5 mm	Outer Diameter 28 mm	Inner Diameter 18 mm	Length 7.5 mm	Impedance @ 25 MHz 1 turn 26 Ω	Impedance @ 100 MHz 1 turn 54 Ω	Impedance @ 100 MHz 2 turns 330 Ω	Impedance @ 25 MHz 2 turns 205 Ω	Material 3 W 800	Design Kit –	Alpha-Rack –
742701111	18.5 mm, 29.5 mm, 19 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701111 (rev1).igs \| 120.1 KB STP 742701111 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 18.5 mm	Outer Diameter 29.5 mm	Inner Diameter 19 mm	Length 7.7 mm	Impedance @ 25 MHz 1 turn 28 Ω	Impedance @ 100 MHz 1 turn 52 Ω	Impedance @ 100 MHz 2 turns 335 Ω	Impedance @ 25 MHz 2 turns 208 Ω	Material 3 W 800	Design Kit –	Alpha-Rack –
74270104	18.5 mm, 31.7 mm, 19 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270104 (rev1).igs \| 119.8 KB STP 74270104 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 18.5 mm	Outer Diameter 31.7 mm	Inner Diameter 19 mm	Length 8 mm	Impedance @ 25 MHz 1 turn 35 Ω	Impedance @ 100 MHz 1 turn 58 Ω	Impedance @ 100 MHz 2 turns 251 Ω	Impedance @ 25 MHz 2 turns 133 Ω	Material 4 W 620	Design Kit –	Alpha-Rack –
74270115	18.5 mm, 31.5 mm, 19 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270115 (rev1).igs \| 118.8 KB STP 74270115 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 18.5 mm	Outer Diameter 31.5 mm	Inner Diameter 19 mm	Length 16 mm	Impedance @ 25 MHz 1 turn 56 Ω	Impedance @ 100 MHz 1 turn 102 Ω	Impedance @ 100 MHz 2 turns 350 Ω	Impedance @ 25 MHz 2 turns 221 Ω	Material 3 W 800	Design Kit 742701	Alpha-Rack –
74270151	20.4 mm, 34.6 mm, 20.8 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270151 (rev1).igs \| 116.7 KB STP 74270151 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 20.4 mm	Outer Diameter 34.6 mm	Inner Diameter 20.8 mm	Length 12.7 mm	Impedance @ 25 MHz 1 turn 52 Ω	Impedance @ 100 MHz 1 turn 81 Ω	Impedance @ 100 MHz 2 turns 416 Ω	Impedance @ 25 MHz 2 turns 207 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
742701112	24.8 mm, 35.6 mm, 25.4 mm	Simulation	Downloads 2 files CAD files ZIP IGS 742701112 (rev1).igs \| 117.9 KB STP 742701112 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 24.8 mm	Outer Diameter 35.6 mm	Inner Diameter 25.4 mm	Length 7.5 mm	Impedance @ 25 MHz 1 turn 21 Ω	Impedance @ 100 MHz 1 turn 45 Ω	Impedance @ 100 MHz 2 turns 350 Ω	Impedance @ 25 MHz 2 turns 165 Ω	Material 3 W 800	Design Kit –	Alpha-Rack –
7427015	26.9 mm, 40.6 mm, 27.4 mm	Simulation	Downloads 2 files CAD files ZIP IGS 7427015 (rev1).igs \| 118.6 KB STP 7427015 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 26.9 mm	Outer Diameter 40.6 mm	Inner Diameter 27.4 mm	Length 15 mm	Impedance @ 25 MHz 1 turn 50 Ω	Impedance @ 100 MHz 1 turn 82 Ω	Impedance @ 100 MHz 2 turns 399 Ω	Impedance @ 25 MHz 2 turns 217 Ω	Material 4 W 620	Design Kit 742701	Alpha-Rack –
74270097	33.4 mm, 61 mm, 35.5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270097 (rev1).igs \| 116.4 KB STP 74270097 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 33.4 mm	Outer Diameter 61 mm	Inner Diameter 35.5 mm	Length 12.7 mm	Impedance @ 25 MHz 1 turn 55 Ω	Impedance @ 100 MHz 1 turn 92 Ω	Impedance @ 100 MHz 2 turns 680 Ω	Impedance @ 25 MHz 2 turns 323 Ω	Material 4 W 620	Design Kit –	Alpha-Rack 742707002
74270198	33.4 mm, 61 mm, 35.5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270198 (rev1).igs \| 110.4 KB STP 74270198 (rev1).stp \| 15.2 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 33.4 mm	Outer Diameter 61 mm	Inner Diameter 35.5 mm	Length 12.7 mm	Impedance @ 25 MHz 1 turn 65 Ω	Impedance @ 100 MHz 1 turn 97 Ω	Impedance @ 100 MHz 2 turns 400 Ω	Impedance @ 25 MHz 2 turns 250 Ω	Material 4 W 1500	Design Kit –	Alpha-Rack –
74270191	33.4 mm, 61 mm, 35.5 mm	Simulation	Downloads 2 files CAD files ZIP IGS 74270191 (rev1).igs \| 118.7 KB STP 74270191 (rev1).stp \| 15.1 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Cable Diameter Max. 33.4 mm	Outer Diameter 61 mm	Inner Diameter 35.5 mm	Length 20 mm	Impedance @ 25 MHz 1 turn 97 Ω	Impedance @ 100 MHz 1 turn 156 Ω	Impedance @ 100 MHz 2 turns 650 Ω	Impedance @ 25 MHz 2 turns 390 Ω	Material 4 W 620	Design Kit –	Alpha-Rack 742707002
