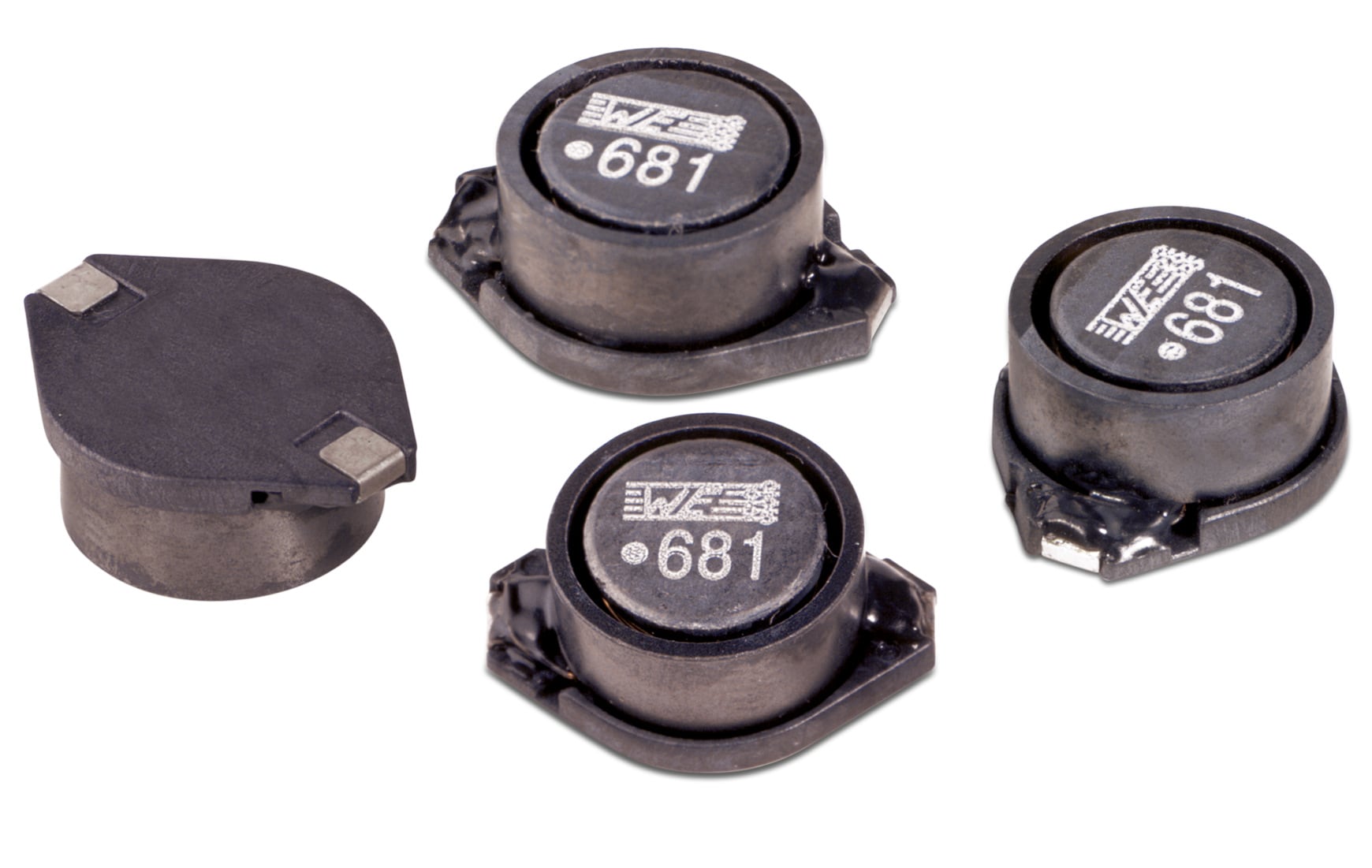

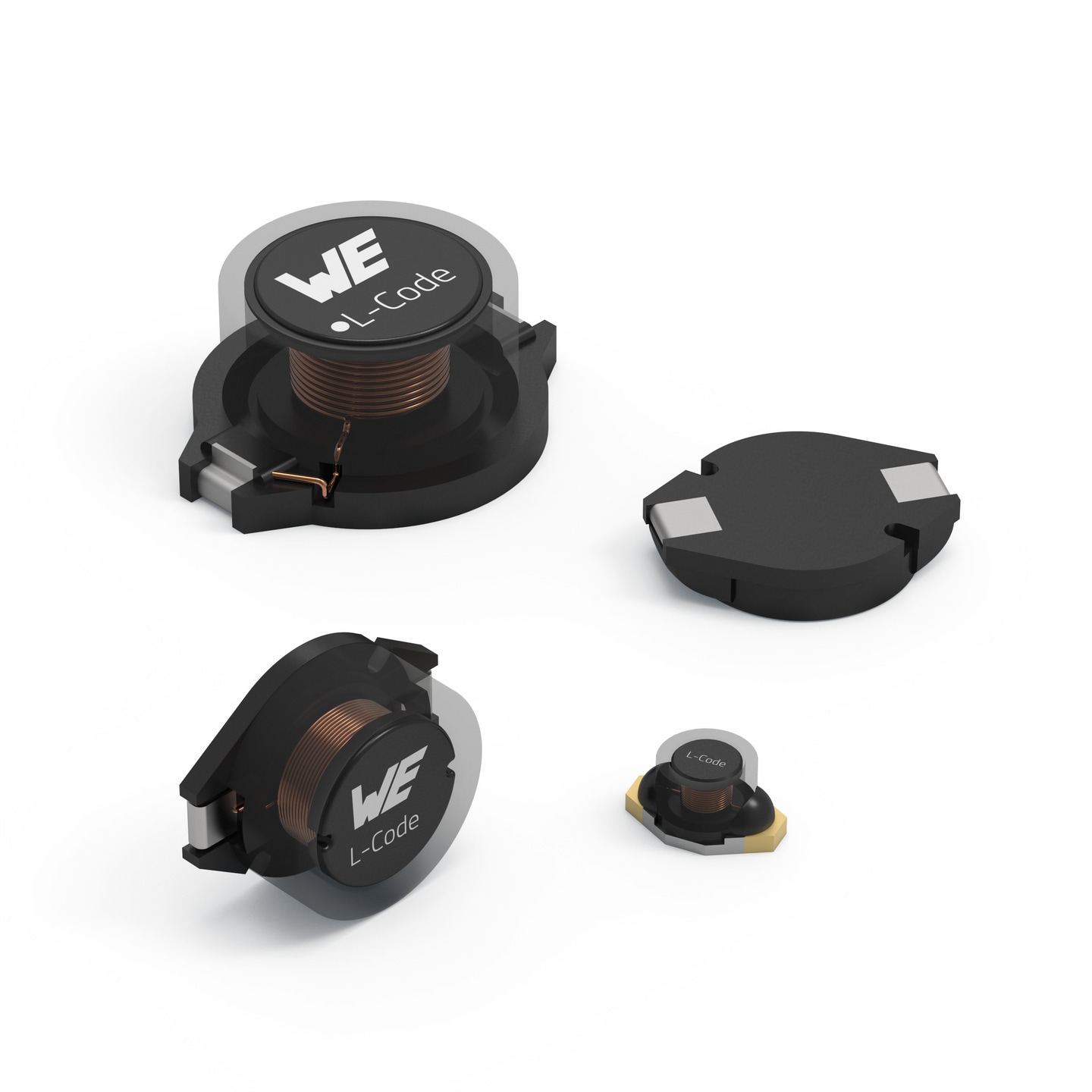

WE-PD3 SMT Power Inductor

Size	L (mm)	W (mm)	H (mm)
Type S	6.6	4.45	2.92
Type M	12.7	10.3	2.7
Type L	12.7	10	4.9
Type X	18.5	15.2	7.6

LTSpice files

LT
LTSpice_WE-PD3 (rev22a).zip
|
2.8 KB

Characteristics

Magnetically shielded version which results in a low leakage field
Working frequency up to 10 MHz
Operating temperature: –40°C to +125°C
Recommended solder profile: Reflow
Now with impedance graph in datasheets expect Type S

Applications

EMI-filter, DC/DC Converter
Perfectly suitable for switching regulators e.g. National Semiconductor, Linear Technology, Texas Instruments, Maxim, Semtech, ON Semiconductor, Cologne Chip, STMicroelectronics, Maxim, MPS, Diodes, Analogic Tech and Exar
Perfectly suitable for switching regulators with extremely high efficiency

Application Notes

Products

All

Type S

Type M

Type L

Type X

Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (Ω)	f_res (MHz)
7445101	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	3	1.62	0.04	83
74451015	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	2.8	1.13	0.045	80
7445301	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	3	6.3	0.038	90
74451022	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	1.8	1.08	0.05	65
7445302	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	2.76	6	0.045	70
7445402	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	3.8	6.8	0.027	85
7445403	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.9	5.9	0.03	70
74451033	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	1.6	0.77	0.055	60
74453031	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	2.2	5.4	0.062	50
74451039	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.9	1.5	0.77	0.057	53
7445303	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.9	2.1	4.2	0.07	48
74451047	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	1.4	0.72	0.06	46
7445304	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	1.9	3.6	0.078	44
7445404	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	2.7	4.7	0.04	48
74451068	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	1.2	0.5	0.065	36.5
7445306	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	1.6	3.3	0.085	36
74454068	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	2.2	4.1	0.055	33
7445110	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	0.45	0.075	30
74453010	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.24	2.9	0.145	29
74454010	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2	3.2	0.065	25
74459010	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3.9	8	0.04	20
74453112	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.1	2.7	0.185	25
74451115	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	0.8	0.27	0.09	25.5
74453115	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1	2.3	0.2	23
74454115	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1.7	3	0.085	20
74459115	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	3.5	7	0.048	16.5
74451122	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	0.7	0.16	0.11	20.5
74453122	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	0.8	1.9	0.3	18
74454122	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1.4	2.3	0.1	16
74459122	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	3.4	6	0.059	13
74451133	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	0.6	0.15	0.19	14.5
74453133	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	0.7	1.4	0.45	15
74454133	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	1.2	1.8	0.16	12
74459133	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	2.9	5	0.075	11
74451147	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	0.5	0.14	0.23	11.5
74453147	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	0.6	1.3	0.65	12.5
74454147	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	1	1.4	0.19	10
74459147	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	2.8	4	0.097	8
74453156	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	0.52	1.2	0.68	11
74451168	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	0.4	0.12	0.29	10
74453168	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	0.48	1.1	0.8	10
74454168	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	0.82	1.35	0.34	8
74459168	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	2.2	3	0.138	7.2
74453182	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	0.42	0.9	1.2	9.5
7445120	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	0.3	0.09	0.48	8
7445320	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_M_3 (rev1).igs \| 1.5 MB STP WE-PD3_Typ_M_3 (rev1).stp \| 524.9 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	0.4	0.7	1.4	8
7445420	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	0.68	1.1	0.42	7.5
7445920	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	1.7	2.4	0.207	5.5
74451215	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	0.26	0.05	0.59	6
74454215	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	0.55	0.8	0.52	6
74459215	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	1.3	2.1	0.293	4.6
74451222	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.22	0.08	0.77	5
74454220	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.45	0.7	0.8	4.5
74459222	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	1.2	1.9	0.47	3.7
74451233	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	0.2	0.02	1.4	3.2
74454233	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	0.35	0.6	1.2	3.4
74459233	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	0.9	1.1	0.78	3
74454239	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	390	0.33	0.55	1.4	3.3
74451247	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_S_3 (rev1).igs \| 1.1 MB STP WE-PD3_Typ_S_3 (rev1).stp \| 397 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.19	0.02	1.8	3
74454247	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.3	0.5	1.6	3.2
74459247	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.8	1.1	1.08	2.4
74454268	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.26	0.4	2.3	2.5
74459268	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.7	0.96	1.4	2.2
7445430	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_L_3 (rev1).igs \| 2 MB STP WE-PD3_Typ_L_3 (rev1).stp \| 756 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.22	0.35	3.2	2.2
7445930	SPEC	9 files EDA models: Components ZIP ALT WE-PD3 (rev22d).IntLib \| 747 KB CDS Cadence_WE-PD3 (rev22a).zip \| 4.7 MB EAG Eagle_WE-PD3 (rev23a).lbr \| 54.2 KB KIC KiCad_WE-PD3 (rev25a).zip \| 2.4 MB ZUK Download_CadStar_WE-PD3 (rev19b).zip \| 10.9 KB CAD files ZIP IGS WE-PD3_Typ_X_3 (rev1).igs \| 3.7 MB STP WE-PD3_Typ_X_3 (rev1).stp \| 1017.2 KB Electric models ZIP PSP PSpice_WE-PD3 (rev22a).zip \| 11.8 KB SCS Spectre_WE-PD3 (rev24a).mod \| 14.2 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.6	0.8	2.01	1.6
