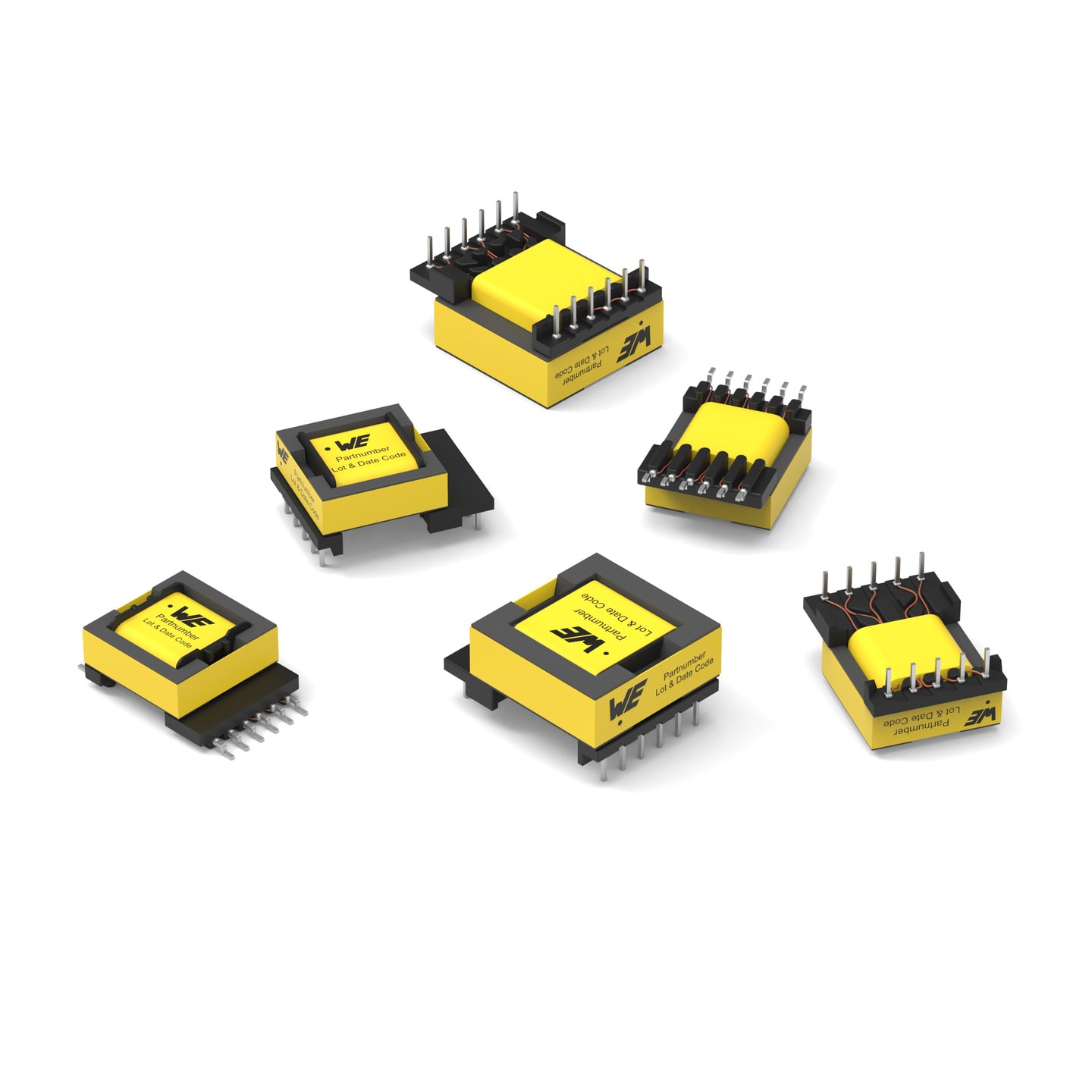

750811612
85 - 265 V (AC), 5 V, 1.3 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.3 A
Output Voltage 2 5 V
Output Current 2 1.3 A
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 110
Inductance 800 µH
Turns Ratio 5.26:0.26:0.26:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
7508116313
85 - 265 V (AC), 12 V, 0.85 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 12 V
Output Current 1 0.85 A
Output Voltage 2 12 V
Output Current 2 0.85 A
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 110
Inductance 800 µH
Turns Ratio 9.09:0.27:1.18:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
750811644
85 - 265 V (AC), 24 V, 0.4 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 24 V
Output Current 1 0.4 A
Output Voltage 2 24 V
Output Current 2 0.4 A
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 150
Inductance 800 µH
Turns Ratio 11.11:1.88:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
7508112330
85 - 265 V (AC), 16 V, 1.15 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 16 V
Output Current 1 1.15 A
–
–
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 130
Inductance 800 µH
Turns Ratio 8.333:1:1.25
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
7508112512
85 - 265 V (AC), 32 V, 0.75 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 32 V
Output Current 1 0.75 A
–
–
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 170
Inductance 800 µH
Turns Ratio 11.11:1.55:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
7508112513
85 - 265 V (AC), 40 V, 0.58 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 40 V
Output Current 1 0.58 A
–
–
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 180
Inductance 800 µH
Turns Ratio 6.66:0.8:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
750811613
85 - 265 V (AC), 5 V, 1.8 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.8 A
Output Voltage 2 12 V
Output Current 2 0.9 A
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 170
Inductance 800 µH
Turns Ratio 6.66:0.6:0.6:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
750811614
85 - 265 V (AC), 5 V, 1.2 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.2 A
Output Voltage 2 24 V
Output Current 2 0.62 A
–
–
Auxiliary Voltage 20 V
–
–
Switching Frequency 68 - 220
Inductance 800 µH
Turns Ratio 8.33:1.16:1.16:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 29 mm
Height 12 mm
Mount THT
Size EFD20
750811611
85 - 265 V (AC), 5 V, 2 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 2 A
Output Voltage 2 5 V
Output Current 2 2 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 100
Inductance 800 µH
Turns Ratio 20 : 0.833 : 0.833 : 2.16 : 1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
7508116312
85 - 265 V (AC), 12 V, 1 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 12 V
Output Current 1 1 A
Output Voltage 2 12 V
Output Current 2 1 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 120
Inductance 800 µH
Turns Ratio 20:1.8:1.8:2.2:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
750811643
85 - 265 V (AC), 24 V, 0.5 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 24 V
Output Current 1 0.5 A
Output Voltage 2 24 V
Output Current 2 0.5 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 120
Inductance 800 µH
Turns Ratio 20:3.6:3.6:2.2:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
7508112327
85 - 265 V (AC), 16 V, 1.3 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 16 V
Output Current 1 1.3 A
–
–
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 130
Inductance 800 µH
Turns Ratio 20:2.4:2.2:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
7508112510
85 - 265 V (AC), 32 V, 0.75 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 32 V
Output Current 1 0.75 A
–
–
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 120
Inductance 800 µH
Turns Ratio 20:4.8:2.2:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
7508112511
85 - 265 V (AC), 40 V, 0.6 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 40 V
Output Current 1 0.6 A
–
–
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 120
Inductance 800 µH
Turns Ratio 20:6:2.2:1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
750811913
85 - 265 V (AC), 5 V, 1.25 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.25 A
Output Voltage 2 5 V
Output Current 2 1.25 A
Output Voltage 3 7 V
Output Current 3 1.1 A
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 130
Inductance 800 µH
Turns Ratio 16.66 : 0.833 : 0.833 : 1.166 : 2.166 : 1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
750811914
85 - 265 V (AC), 5 V, 1.3 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.3 A
Output Voltage 2 5 V
Output Current 2 1.3 A
Output Voltage 3 19 V
Output Current 3 0.5 A
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 140
Inductance 800 µH
Turns Ratio 20 : 0.8 : 0.8 : 2.8 : 2.2 : 1
Saturation Current 1.4 A
Insulation Test Voltage 4500 V (AC)
Length 21.5 mm
Width 33.8 mm
Height 12 mm
Mount SMT
Size EFD20
750811512
85 - 265 V (AC), 5 V, 1.575 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.575 A
Output Voltage 2 5 V
Output Current 2 1.575 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 120
Inductance 770 µH
Turns Ratio 20:1:1:2.75:1.25
Saturation Current 2 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
7508116314
85 - 265 V (AC), 12 V, 1.3 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 12 V
Output Current 1 1.3 A
Output Voltage 2 12 V
Output Current 2 1.3 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 100
Inductance 450 µH
Turns Ratio 16.66:2:2.33:1
Saturation Current 2.1 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
750811645
85 - 265 V (AC), 24 V, 0.71 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 24 V
Output Current 1 0.71 A
Output Voltage 2 24 V
Output Current 2 0.71 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 100
Inductance 470 µH
Turns Ratio 16.66:4:4:2.33:1
Saturation Current 2 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.48 mm
Mount THT
Size EFD25
7508112334
85 - 265 V (AC), 16 V, 1.64 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 16 V
Output Current 1 1.64 A
–
–
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 110
Inductance 414 µH
Turns Ratio 16:2.33:2:1
Saturation Current 2.2 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
7508112514
85 - 265 V (AC), 32 V, 1 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 32 V
Output Current 1 1 A
–
–
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 110
Inductance 460 µH
Turns Ratio 16:4.66:2:1
Saturation Current 1.9 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
7508112515
85 - 265 V (AC), 40 V, 0.8 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 40 V
Output Current 1 0.8 A
–
–
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 105
Inductance 500 µH
Turns Ratio 16.66:6.33:2.33:1
Saturation Current 1.9 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
750811616
85 - 265 V (AC), 5 V, 1.7 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.7 A
Output Voltage 2 12 V
Output Current 2 2 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 250
Inductance 468 µH
Turns Ratio 20:1:2.33:2.66:1.33
Saturation Current 2.5 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
750811617
85 - 265 V (AC), 5 V, 1.1 A Status Active i | Production is active. Expected lifetime: >10 years.
Input Voltage 85 - 265 V (AC)
Output Voltage 1 5 V
Output Current 1 1.1 A
Output Voltage 2 24 V
Output Current 2 0.6 A
–
–
Auxiliary Voltage 20 V
Auxiliary Voltage 2 14 V
Auxiliary Voltage 1 6 V
Switching Frequency 68 - 170
Inductance 793 µH
Turns Ratio 20:4.5:1:2.75:1.25
Saturation Current 2 A
Insulation Test Voltage 4500 V (AC)
Length 26.3 mm
Width 33 mm
Height 14.81 mm
Mount THT
Size EFD25
