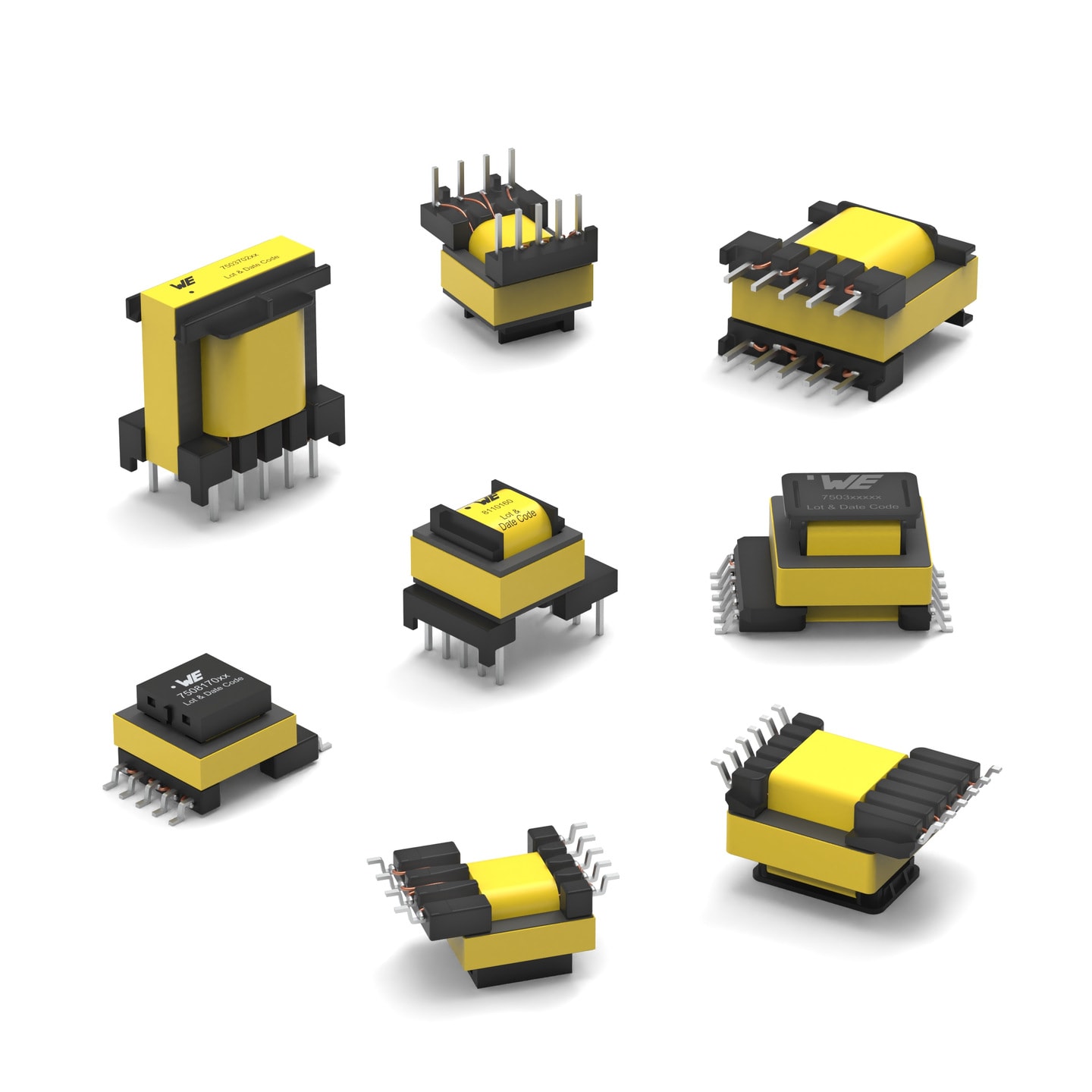

WE-OLEE Offline Transformer

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
EE13/6/6			14.2	20.45	14.6	THT
EE13/7/4			13.8	23.9	11	SMT
EE16/8/5			17.78	26.9	13.8	SMT
EE20/10/6			22.25	14.6	23.24	THT

LTSpice files

LT
LTSpice_WE-OLEE (rev22a).zip
|
19.5 KB

Characteristics

Switching Frequency 45kHz-200kHz
Low real estate
Extended Rails
Reinforced Insulation
IEC62368-1, EN62368-1, UL62368-1/CSA62368-1 and AS/NZS62368.1
Operating Temp: -40°C to +125°C

Applications

SMPS with power up to 15.5W
Auxiliary power supplies
For SMPS with universal input from 50 VAC up to 265 VAC

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

EE13/6/6

EE13/7/4

EE16/8/5

EE20/10/6

Filter article data

show article in 4 product lines

article in 4 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	V_IN	V_Out1(V)	I_Out1(A)	V_Out2(V)	I_Out2(mA)	V_aux(V)	V_{aux 1}(V)	V_{aux 2}(V)	f_switch(kHz)	L(mH)	N_PRI : N_SEC : N_AUX	I_SAT(mA)	V_T(V (AC))	L(mm)	W(mm)	H(mm)	Mount	Size	Samples
	7508110160	50 - 265 V (AC), 5 V, 1 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS Download_IGS_070-6167 (rev1).IGS \| 1.6 MB STP Download_STP_070-6167 (rev1).STEP \| 775.3 KB Electric models ZIP LT 7508110160_LTspice (rev1).zip \| 8.7 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL Download_WRL_070-6167 (rev1).wrl \| 181.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 50 - 265 V (AC)	Output Voltage 15 V	Output Current 11 A	–	–	Auxiliary Voltage8.75 V	–	–	Switching Frequency 45 - 70	Inductance1.59 mH	Turns Ratio15:1:1.75	Saturation Current480 mA	Insulation Test Voltage3600 V (AC)	Length14.2 mm	Width20.45 mm	Height14.6 mm	MountTHT	SizeEE13/6/6
	7508110330	55 - 265 V (AC), 12 V, 0.45 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS Download_IGS_070-6167 (rev1).IGS \| 1.6 MB STP Download_STP_070-6167 (rev1).STEP \| 775.3 KB Electric models ZIP LT 7508110330_LTspice (rev1).zip \| 8.1 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL Download_WRL_070-6167 (rev1).wrl \| 181.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 112 V	Output Current 10.45 A	–	–	Auxiliary Voltage8.7 V	–	–	Switching Frequency 50 - 60	Inductance1.88 mH	Turns Ratio8.71:1.35:1	Saturation Current360 mA	Insulation Test Voltage3600 V (AC)	Length14.2 mm	Width20.45 mm	Height14.6 mm	MountTHT	SizeEE13/6/6
	7508110333	55 - 265 V (AC), 15 V, 0.32 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS Download_IGS_070-6167 (rev1).IGS \| 1.6 MB STP Download_STP_070-6167 (rev1).STEP \| 775.3 KB Electric models ZIP LT 7508110333_LTspice (rev1).zip \| 8.1 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL Download_WRL_070-6167 (rev1).wrl \| 181.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 115 V	Output Current 10.32 A	–	–	Auxiliary Voltage20 V	–	–	Switching Frequency 50 - 65	Inductance1.88 mH	Turns Ratio5:1:1.33	Saturation Current360 mA	Insulation Test Voltage3600 V (AC)	Length14.2 mm	Width20.45 mm	Height14.6 mm	MountTHT	SizeEE13/6/6
	7508110419	55 - 265 V (AC), 24 V, 0.17 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS Download_IGS_070-6167 (rev1).IGS \| 1.6 MB STP Download_STP_070-6167 (rev1).STEP \| 775.3 KB Electric models ZIP LT 7508110419_LTspice (rev1).zip \| 8.1 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL Download_WRL_070-6167 (rev1).wrl \| 181.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 124 V	Output Current 10.17 A	–	–	Auxiliary Voltage20 V	–	–	Switching Frequency 50 - 65	Inductance2.25 mH	Turns Ratio3.8:1.19:1	Saturation Current260 mA	Insulation Test Voltage3600 V (AC)	Length14.2 mm	Width20.45 mm	Height14.6 mm	MountTHT	SizeEE13/6/6
	7508110420	55 - 265 V (AC), 30 V, 0.16 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS Download_IGS_070-6167 (rev1).IGS \| 1.6 MB STP Download_STP_070-6167 (rev1).STEP \| 775.3 KB Electric models ZIP LT 7508110420_LTspice (rev1).zip \| 8.1 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL Download_WRL_070-6167 (rev1).wrl \| 181.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 130 V	Output Current 10.16 A	–	–	Auxiliary Voltage20 V	–	–	Switching Frequency 50 - 65	Inductance1.95 mH	Turns Ratio3.8:1.48:1	Saturation Current320 mA	Insulation Test Voltage3600 V (AC)	Length14.2 mm	Width20.45 mm	Height14.6 mm	MountTHT	SizeEE13/6/6
	7508170313	55 - 265 V (AC), 15 V, 0.31 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-6258 (rev1).IGS \| 3.2 MB STP 070-6258 (rev1).STEP \| 1.6 MB Electric models ZIP LT 7508170313_LTspice (rev1).zip \| 8.1 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-6258 (rev1).wrl \| 515.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 115 V	Output Current 10.31 A	–	–	Auxiliary Voltage16 V	–	–	Switching Frequency 150	Inductance0.592 mH	Turns Ratio4.6:1:1.05	Saturation Current725 mA	Insulation Test Voltage3000 V (AC)	Length13.8 mm	Width23.9 mm	Height11 mm	MountSMT	SizeEE13/7/4
	7508170312	55 - 265 V (AC), 15 V, 0.21 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-6258 (rev1).IGS \| 3.2 MB STP 070-6258 (rev1).STEP \| 1.6 MB Electric models ZIP LT 7508170312_LTspice (rev1).zip \| 8.2 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-6258 (rev1).wrl \| 515.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 115 V	Output Current 10.21 A	–	–	Auxiliary Voltage16 V	–	–	Switching Frequency 50	Inductance1.99 mH	Turns Ratio4.63:1:1.06	Saturation Current360 mA	Insulation Test Voltage3000 V (AC)	Length13.8 mm	Width23.9 mm	Height11 mm	MountSMT	SizeEE13/7/4
	7508170311	55 - 265 V (DC), 12 V, 0.42 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-6258 (rev1).IGS \| 3.2 MB STP 070-6258 (rev1).STEP \| 1.6 MB Electric models ZIP LT 7508170311_LTspice (rev1).zip \| 8.8 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-6258 (rev1).wrl \| 515.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (DC)	Output Voltage 112 V	Output Current 10.42 A	–	–	Auxiliary Voltage16 V	–	–	Switching Frequency 150	Inductance0.491 mH	Turns Ratio5.75:1:1.31	Saturation Current860 mA	Insulation Test Voltage3000 V (AC)	Length13.8 mm	Width23.9 mm	Height11 mm	MountSMT	SizeEE13/7/4
	7508170310	55 - 265 V (AC), 12 V, 0.3 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-6258 (rev1).IGS \| 3.2 MB STP 070-6258 (rev1).STEP \| 1.6 MB Electric models ZIP LT 7508170310_LTspice (rev1).zip \| 8.1 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-6258 (rev1).wrl \| 515.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 112 V	Output Current 10.3 A	–	–	Auxiliary Voltage16 V	–	–	Switching Frequency 50	Inductance1.99 mH	Turns Ratio5.79:1:1.32	Saturation Current365 mA	Insulation Test Voltage3800 V (AC)	Length13.8 mm	Width23.9 mm	Height11 mm	MountSMT	SizeEE13/7/4
	750817015	55 - 265 V (AC), 5 V, 0.9 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-6258 (rev1).IGS \| 3.2 MB STP 070-6258 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750817015_LTspice (rev1).zip \| 8.7 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-6258 (rev1).wrl \| 515.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 15 V	Output Current 10.9 A	–	–	Auxiliary Voltage16 V	–	–	Switching Frequency 150	Inductance0.491 mH	Turns Ratio13.14:1:3	Saturation Current875 mA	Insulation Test Voltage3000 V (AC)	Length13.8 mm	Width23.9 mm	Height11 mm	MountSMT	SizeEE13/7/4
	750817014	55 - 265 V (AC), 5 V, 0.7 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-6258 (rev1).IGS \| 3.2 MB STP 070-6258 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750817014_LTspice (rev1).zip \| 8.8 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-6258 (rev1).wrl \| 515.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 55 - 265 V (AC)	Output Voltage 15 V	Output Current 10.7 A	–	–	Auxiliary Voltage16 V	–	–	Switching Frequency 50	Inductance1.84 mH	Turns Ratio13:1:3	Saturation Current375 mA	Insulation Test Voltage3000 V (AC)	Length13.8 mm	Width23.9 mm	Height11 mm	MountSMT	SizeEE13/7/4
	750811116	85 - 265 V (AC), 5 V, 2.55 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750811116_LTspice (rev1).zip \| 9.4 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 12.55 A	–	–	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance1.31 mH	Turns Ratio23.3:1:3.8	Saturation Current800 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750811137	85 - 265 V (AC), 12 V, 1.05 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750811137_LTspice (rev1).zip \| 9.4 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 11.05 A	–	–	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance1.39 mH	Turns Ratio9.7:1:1.57	Saturation Current740 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750813530	85 - 130 V (AC), 15 V, 0.535 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750813530_LTspice (rev1).zip \| 10 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 130 V (AC)	Output Voltage 115 V	Output Current 10.535 A	Output Voltage 26 V	Output Current 2535 mA	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance1.5 mH	Turns Ratio21.7:2.3:1:2.7	Saturation Current620 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750813540	85 - 130 V (AC), 25 V, 0.4 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750813540_LTspice (rev1).zip \| 9.4 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 130 V (AC)	Output Voltage 125 V	Output Current 10.4 A	Output Voltage 26 V	Output Current 2400 mA	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance1.25 mH	Turns Ratio21.3:3.8:1:3.2	Saturation Current800 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750813551	85 - 130 V (AC), 35 V, 0.285 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750813551_LTspice (rev1).zip \| 9.4 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 130 V (AC)	Output Voltage 135 V	Output Current 10.285 A	Output Voltage 26 V	Output Current 2285 mA	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance1.5 mH	Turns Ratio21.3:5.3:1:3.2	Saturation Current620 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750370288	85 - 265 V (AC), 5 V, 1 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5248 (rev1).IGS \| 2.6 MB STP 070-5248 (rev1).STEP \| 1.2 MB Electric models ZIP LT Download_LTSPICE_750370288 (rev1).zip \| 6.7 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5248 (rev1).wrl \| 188.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 11 A	–	–	Auxiliary Voltage17 V	–	–	Switching Frequency 65	Inductance1.7 mH	Turns Ratio16.88:1:1.88	Saturation Current1050 mA	Insulation Test Voltage3000 V (AC)	Length22.25 mm	Width14.6 mm	Height23.24 mm	MountTHT	SizeEE20/10/6
	750370289	85 - 265 V (AC), 5 V, 1 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5248 (rev1).IGS \| 2.6 MB STP 070-5248 (rev1).STEP \| 1.2 MB Electric models ZIP LT Download_LTSPICE_750370289 (rev1).zip \| 8.8 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5248 (rev1).wrl \| 188.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 11 A	Output Voltage 25 V	Output Current 21000 mA	Auxiliary Voltage10 V	–	–	Switching Frequency 65	Inductance1.7 mH	Turns Ratio15:1:1:2.25	Saturation Current800 mA	Insulation Test Voltage3000 V (AC)	Length22.25 mm	Width14.6 mm	Height23.24 mm	MountTHT	SizeEE20/10/6
	750815530	195 - 265 V (AC), 15 V, 0.52 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750815530_LTspice (rev1).zip \| 10 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 195 - 265 V (AC)	Output Voltage 115 V	Output Current 10.52 A	Output Voltage 26 V	Output Current 2520 mA	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance8 mH	Turns Ratio48:2.3:1:3.2	Saturation Current270 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750815542	195 - 265 V (AC), 25 V, 0.5 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750815542_LTspice (rev1).zip \| 9.4 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 195 - 265 V (AC)	Output Voltage 125 V	Output Current 10.5 A	Output Voltage 26 V	Output Current 2500 mA	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance5 mH	Turns Ratio51:3.8:1:3.2	Saturation Current390 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
	750815550	195 - 265 V (AC), 35 V, 0.325 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLEE (rev23a).IntLib \| 940 KB CDS Cadence_WE-OLEE (rev23a).zip \| 4.6 MB EAG Eagle_WE-OLEE (rev23a).lbr \| 148.4 KB KIC KiCad_WE-OLEE (rev25b).zip \| 1.3 MB CAD files ZIP IGS 070-5642 (rev1).IGS \| 3.3 MB STP 070-5642 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750815550_LTspice (rev1).zip \| 9.4 KB LT LTSpice_WE-OLEE (rev22a).zip \| 19.5 KB PSP PSpice_WE-OLEE (rev22a).zip \| 12.2 KB Others ZIP WRL 070-5642 (rev1).wrl \| 211.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 195 - 265 V (AC)	Output Voltage 135 V	Output Current 10.325 A	Output Voltage 26 V	Output Current 2325 mA	Auxiliary Voltage20 V	Auxiliary Voltage 114 V	Auxiliary Voltage 26 V	Switching Frequency 80 - 200	Inductance6 mH	Turns Ratio52:5.6:1:3.4	Saturation Current330 mA	Insulation Test Voltage3000 V (AC)	Length17.78 mm	Width26.9 mm	Height13.8 mm	MountSMT	SizeEE16/8/5
