WE-NCC Nanocrystalline Cores

NEW

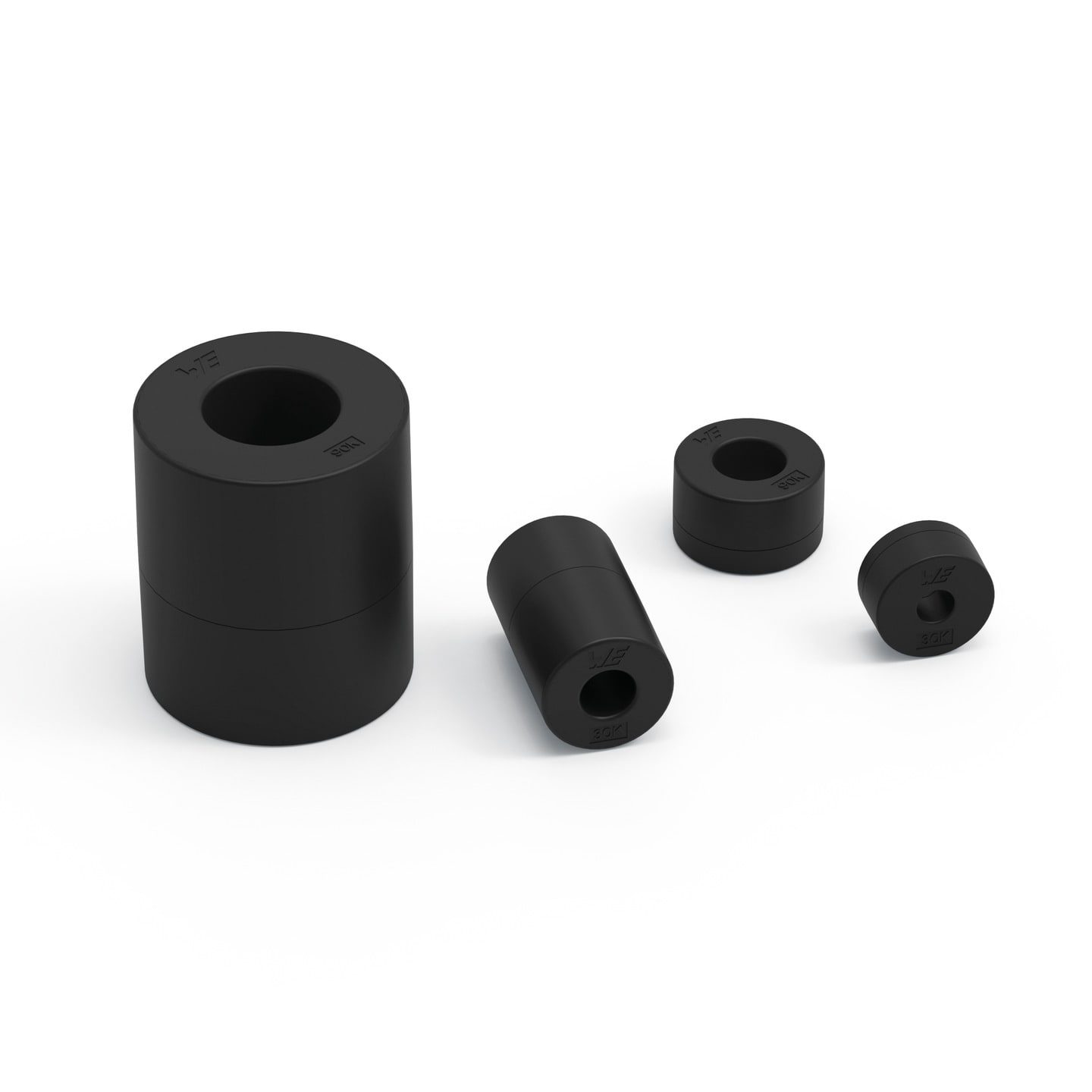

WE-NCC Nanocrystalline Cores
SizeDimen­sions
NEWCylinders
NEWToroids

Characteristics

  • By combining strong magnetic performance with flexible size and inductance options beyond typical ferrite limits, Nanocrystalline cores enable smaller designs
  • High attenuation at lower frequencies with broadband noise-filtering capability
  • Temperature stable behavior compared to existing ferrite materials

Applications

  • Cable-based EMI suppression in industrial electronics
  • Common mode chokes manufacturing
  • Solar and renewable energy converters
  • Frequency converters and Motor-drive systems

Products

All
Cylinders
Toroids
Reset all
Filter article data
Filter by
Delete all
 show  article in 2 product lines
 article in 2 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Ø ID(mm)
Ø OD(mm)
H(mm)
Ø Cable max.(mm)
µi
Operating Temperature
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
742708101
SPEC4 mm, 13.1 mm, 6.6 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter4 mm
Outer Diameter13.1 mm
Height6.6 mm
Cable Diameter Max.3.7 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708107
SPEC4 mm, 13.1 mm, 6.6 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter4 mm
Outer Diameter13.1 mm
Height6.6 mm
Cable Diameter Max.3.7 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708202
SPEC5.6 mm, 14.2 mm, 22.7 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter5.6 mm
Outer Diameter14.2 mm
Height22.7 mm
Cable Diameter Max.5.3 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708205
SPEC5.6 mm, 14.2 mm, 22.7 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter5.6 mm
Outer Diameter14.2 mm
Height22.7 mm
Cable Diameter Max.5.3 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708102
SPEC7.6 mm, 16.2 mm, 9.6 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter7.6 mm
Outer Diameter16.2 mm
Height9.6 mm
Cable Diameter Max.7.3 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708103
SPEC7.6 mm, 19.2 mm, 8.5 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter7.6 mm
Outer Diameter19.2 mm
Height8.5 mm
Cable Diameter Max.7.3 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708109
SPEC7.6 mm, 19.2 mm, 8.5 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter7.6 mm
Outer Diameter19.2 mm
Height8.5 mm
Cable Diameter Max.7.3 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708108
SPEC7.6 mm, 16.2 mm, 9.6 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter7.6 mm
Outer Diameter16.2 mm
Height9.6 mm
Cable Diameter Max.7.3 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708104
SPEC10.1 mm, 23.2 mm, 10.5 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter10.1 mm
Outer Diameter23.2 mm
Height10.5 mm
Cable Diameter Max.9.8 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708201
SPEC10.1 mm, 19.2 mm, 32.7 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter10.1 mm
Outer Diameter19.2 mm
Height32.7 mm
Cable Diameter Max.9.8 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708110
SPEC10.1 mm, 23.2 mm, 10.5 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter10.1 mm
Outer Diameter23.2 mm
Height10.5 mm
Cable Diameter Max.9.8 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708204
SPEC10.1 mm, 19.2 mm, 32.7 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter10.1 mm
Outer Diameter19.2 mm
Height32.7 mm
Cable Diameter Max.9.8 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708203
SPEC13.6 mm, 28.2 mm, 32.7 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter13.6 mm
Outer Diameter28.2 mm
Height32.7 mm
Cable Diameter Max.13.3 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708206
SPEC13.6 mm, 28.2 mm, 32.7 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter13.6 mm
Outer Diameter28.2 mm
Height32.7 mm
Cable Diameter Max.13.3 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708105
SPEC17.6 mm, 28.2 mm, 12.5 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter17.6 mm
Outer Diameter28.2 mm
Height12.5 mm
Cable Diameter Max.17.2 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708111
SPEC17.6 mm, 28.2 mm, 12.5 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter17.6 mm
Outer Diameter28.2 mm
Height12.5 mm
Cable Diameter Max.17.2 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708106
SPEC21.5 mm, 37.5 mm, 17.6 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter21.5 mm
Outer Diameter37.5 mm
Height17.6 mm
Cable Diameter Max.21.1 mm
Initial Permeability30000
Operating Temperature -40 °C up to +125 °C
–Check availability
742708112
SPEC21.5 mm, 37.5 mm, 17.6 mm
Simu­lation
Availability
–
Downloads3 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Inner Diameter21.5 mm
Outer Diameter37.5 mm
Height17.6 mm
Cable Diameter Max.21.1 mm
Initial Permeability90000
Operating Temperature -40 °C up to +125 °C
–Check availability
