| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | ||
|---|---|---|---|---|---|---|---|
| EXT. | 5040 | 5 | 5 | 4 | SMT | ||
| 6045 | 6 | 6 | 4.6 | SMT | |||
| EXT. | 8040 | 8 | 8 | 4.2 | SMT |
Datasheet
LTSpice files
Characteristics

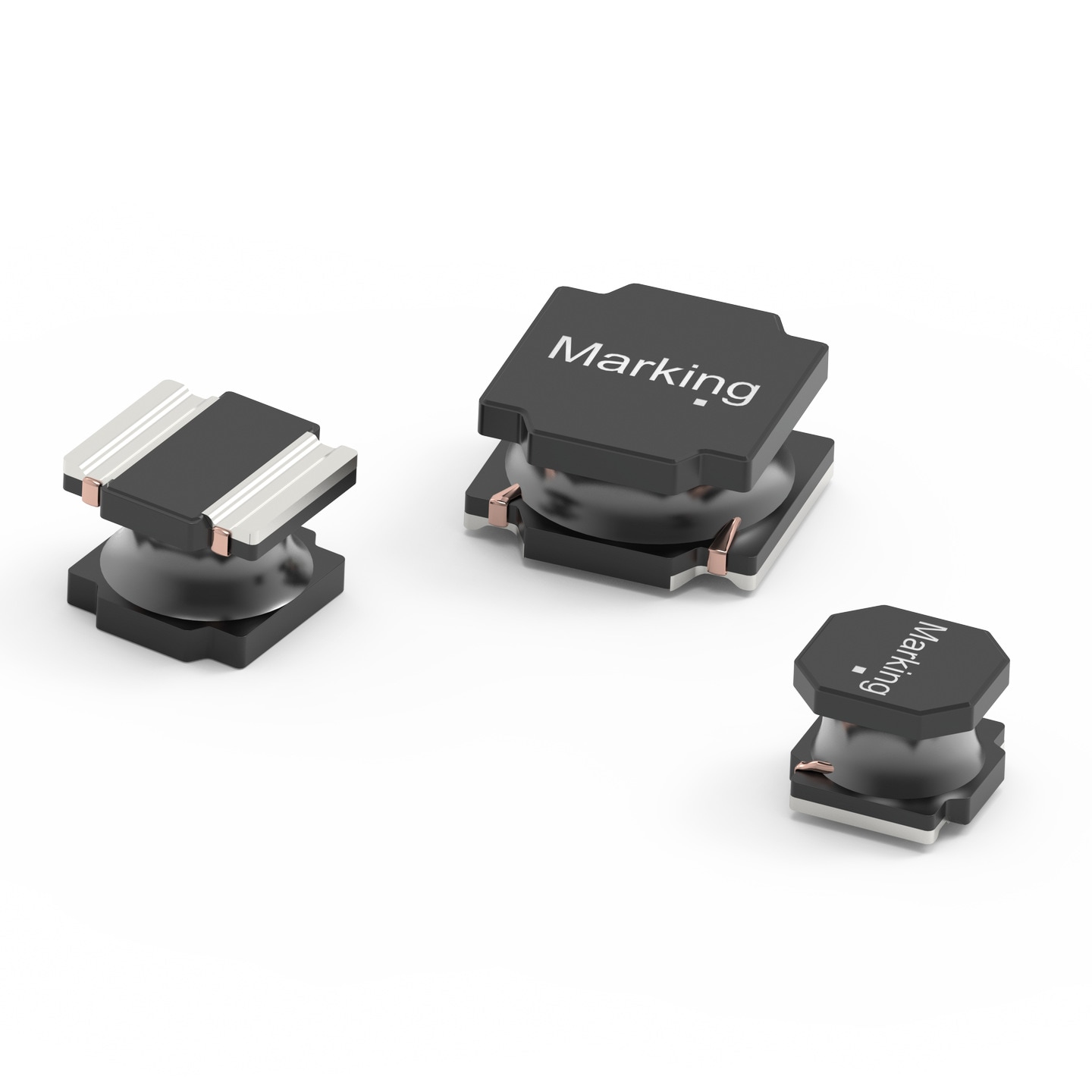

- Magnetically shielded by use of a magnetic resin
- Compact design compared to standard power inductors for high density mounting
- Robust design qualified with AEC-Q200 Grade 0
- Operating temperature: -50 °C up to +150 °C
- Automotive approved
Applications
- LED Headlights (DC/DC-Converter, Control system)
- Electric Vehicle (Battery Management System, Inverter, DC/DC)
- Car Navigation Systems
- Keyless Entry Systems
Products
| Order Code | Datasheet | Downloads | Status | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|
| 78404084010 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 1 | 8.2 | 14.5 | 10 | 127 | – | |
| 78404054010 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 5.7 | 7.4 | 14 | 187 | 78404001 | |
| 78404064010 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 6.7 | 11.5 | 11 | 159 | 78404001 | |
| 78404054015 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 1.5 | 5.22 | 6 | 18 | 137 | – | |
| 78404064015 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1.5 | 6.1 | 9.7 | 13 | 115 | – | |
| 78404084015 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 1.5 | 7.7 | 11.7 | 12 | 95 | – | |
| 78404054022 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 4.54 | 5.3 | 23 | 77 | – | |
| 78404064022 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 5.3 | 8.1 | 17 | 60 | – | |
| 78404084022 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 2.2 | 7 | 9.8 | 15 | 57 | – | |
| 78404054033 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 3.3 | 4.06 | 4.3 | 29 | 48 | 78404001 | |
| 78404064033 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 3.3 | 4.1 | 6.5 | 28 | 42 | – | |
| 78404084033 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 3.3 | 5.7 | 7.5 | 21 | 42 | – | |
| 78404054047 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 4.7 | 3.64 | 3.8 | 36 | 43 | – | |
| 78404064047 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 4.7 | 3.7 | 5.5 | 34 | 36 | 78404001 | |
| 78404084047 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 4.7 | 5.3 | 6.8 | 23 | 35 | – | |
| 78404054068 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 3.01 | 3.2 | 52 | 35 | – | |
| 78404064068 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 3.3 | 4.3 | 42 | 27 | – | |
| 78404084068 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 6.8 | 4.9 | 5.8 | 29 | 27 | – | |
| 78404054100 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 2.45 | 2.5 | 82 | 26 | 78404001 | |
| 78404064100 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 2.8 | 3.5 | 58 | 22 | 78404001 | |
| 78404084100 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 10 | 4.35 | 5 | 35 | 23 | 78404001 | |
| 78404084150 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 15 | 3.75 | 3.9 | 60 | 17 | 78404001 | |
| 78404064150 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 15 | 2.4 | 3 | 88 | 17 | – | |
| 78404054150 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 15 | 2.01 | 2.2 | 108 | 22 | – | |
| 78404054220 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 22 | 1.75 | 1.7 | 155 | 17 | – | |
| 78404084220 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 22 | 3.2 | 3.2 | 85 | 15 | 78404001 | |
| 78404064220 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 22 | 1.9 | 2.5 | 120 | 15 | 78404001 | |
| 78404064330 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 33 | 1.7 | 2 | 168 | 12 | – | |
| 78404054330 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 33 | 1.43 | 1.4 | 226 | 13 | – | |
| 78404064470 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 1.4 | 1.6 | 252 | 10 | – | |
| 78404054470 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 1.19 | 1.2 | 348 | 10 | 78404001 | |
| 78404084470 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 2.23 | 2.18 | 168 | 10 | 78404001 | |
| 78404054680 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 68 | 0.97 | 0.99 | 516 | 9 | – | |
| 78404084680 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 68 | 1.8 | 1.82 | 245 | 8 | 78404001 | |
| 78404064680 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 68 | 1.1 | 1.4 | 367 | 8 | 78404001 | |
| 78404084101 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 7 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 100 | 1.45 | 1.5 | 348 | 6.4 | – | |
| 78404054101 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | Active i| Production is active. Expected lifetime: >10 years. | 100 | 0.82 | 0.82 | 720 | 7 | 78404001 | |
| 78404064101 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 100 | 0.9 | 1.2 | 532 | 6 | – | |
| 78404054151 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 8 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 150 | 0.67 | 0.72 | 972 | 6.3 | – | |
| 78404054221 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 9 files | New i| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | 220 | 0.56 | 0.55 | 1680 | 4.5 | – |
