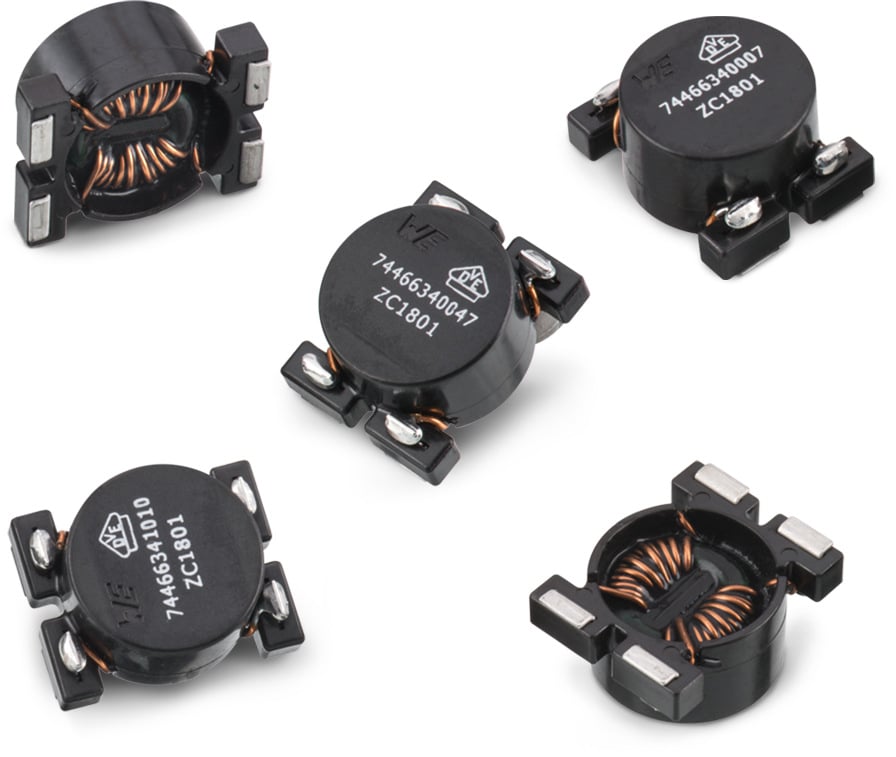

WE-LF SMD Common Mode Power Line Choke in SMT

WE-LF SMD Common Mode Power Line Choke in SMT
SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Fl
(mm)		Material
Type SH
 23.3 18.5 11.5 2.1 MnZn

LTSpice files

Characteristics

  • Common Mode Choke for surface mounting
  • Low Profile
  • Toroidal core with sectional winding
  • High attenuation of common mode interferences in low and middle frequency range
  • Recommended soldering process: Reflow
  • Operating temperature: –40 ºC up to +125 ºC
  • Climatic category: 40/125/21
  • Flammability corresponding to UL 94 V-0
  • Certified according to IEC 60938-2
  • VDE certified

Applications

  • Mains filter
  • Power electronics
  • SMPS

Products

Type SH
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
IR(A)
L1(mH)
RDC max.(Ω)
VR(V (AC))
VT(V (AC))
Material
L(mm)
W(mm)
H(mm)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WE-LF SMD Common Mode Power Line Choke in SMT
7446630027
SPEC0.6 A, 27 mH, 1.2 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current0.6 A
Inductance [1]27 mH
DC Resistance [1]1.2 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446630039
SPEC0.55 A, 39 mH, 1.7 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current0.55 A
Inductance [1]39 mH
DC Resistance [1]1.7 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446630047
SPEC0.4 A, 47 mH, 2.6 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current0.4 A
Inductance [1]47 mH
DC Resistance [1]2.6 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446631007
SPEC1.4 A, 6.8 mH, 0.3 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current1.4 A
Inductance [1]6.8 mH
DC Resistance [1]0.3 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446631010
SPEC1 A, 10 mH, 0.55 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current1 A
Inductance [1]10 mH
DC Resistance [1]0.55 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446632001
SPEC3 A, 1 mH, 0.06 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current3 A
Inductance [1]1 mH
DC Resistance [1]0.06 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446632002
SPEC2.75 A, 2.2 mH, 0.1 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current2.75 A
Inductance [1]2.2 mH
DC Resistance [1]0.1 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
7446632003
SPEC2.25 A, 3.3 mH, 0.15 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current2.25 A
Inductance [1]3.3 mH
DC Resistance [1]0.15 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
WE-LF SMD Common Mode Power Line Choke in SMT
74466340007
SPEC5.25 A, 0.7 mH, 0.03 Ω

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Simu­lation
Availability
–
Downloads11 files

Status Activei| Production is active. Expected lifetime: >10 years.
Rated Current5.25 A
Inductance [1]0.7 mH
DC Resistance [1]0.03 Ω
Rated Voltage250 V (AC)
Insulation Test Voltage1500 V (AC)
MaterialMnZn
Length23.3 mm
Width18.5 mm
Height11.5 mm
–Check availability
