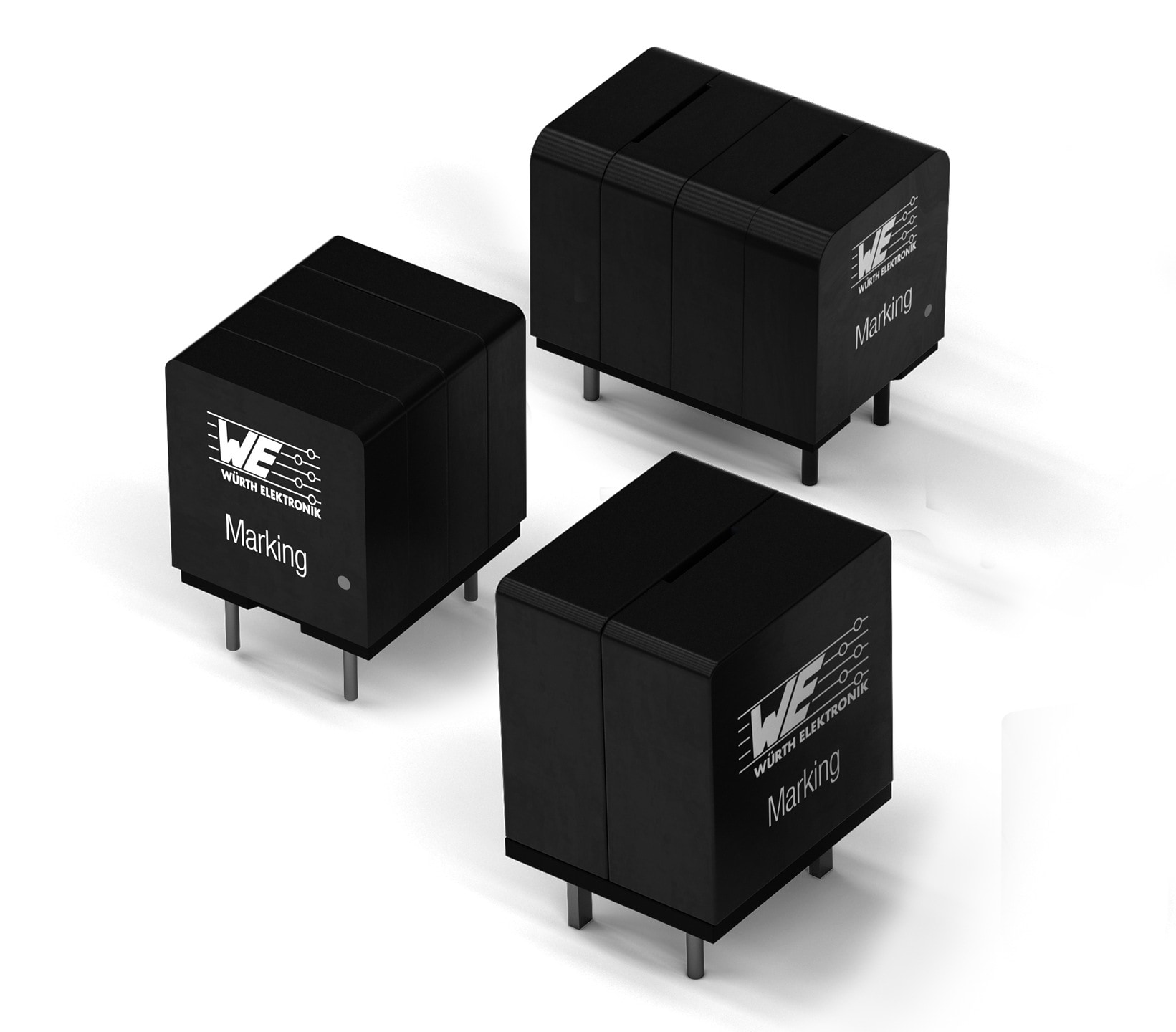

WE-HIDA THT High Current Inductor
Digital Audio

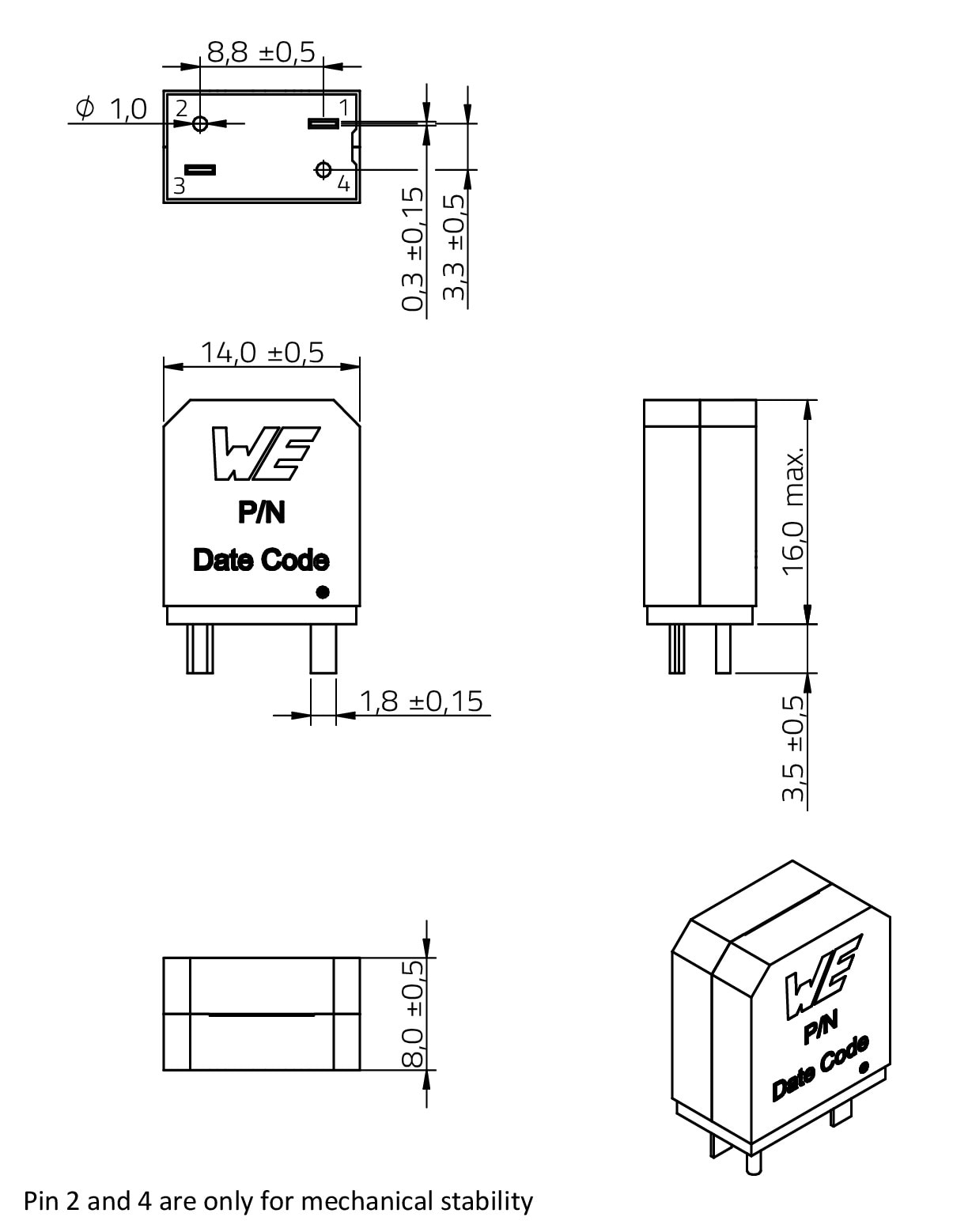

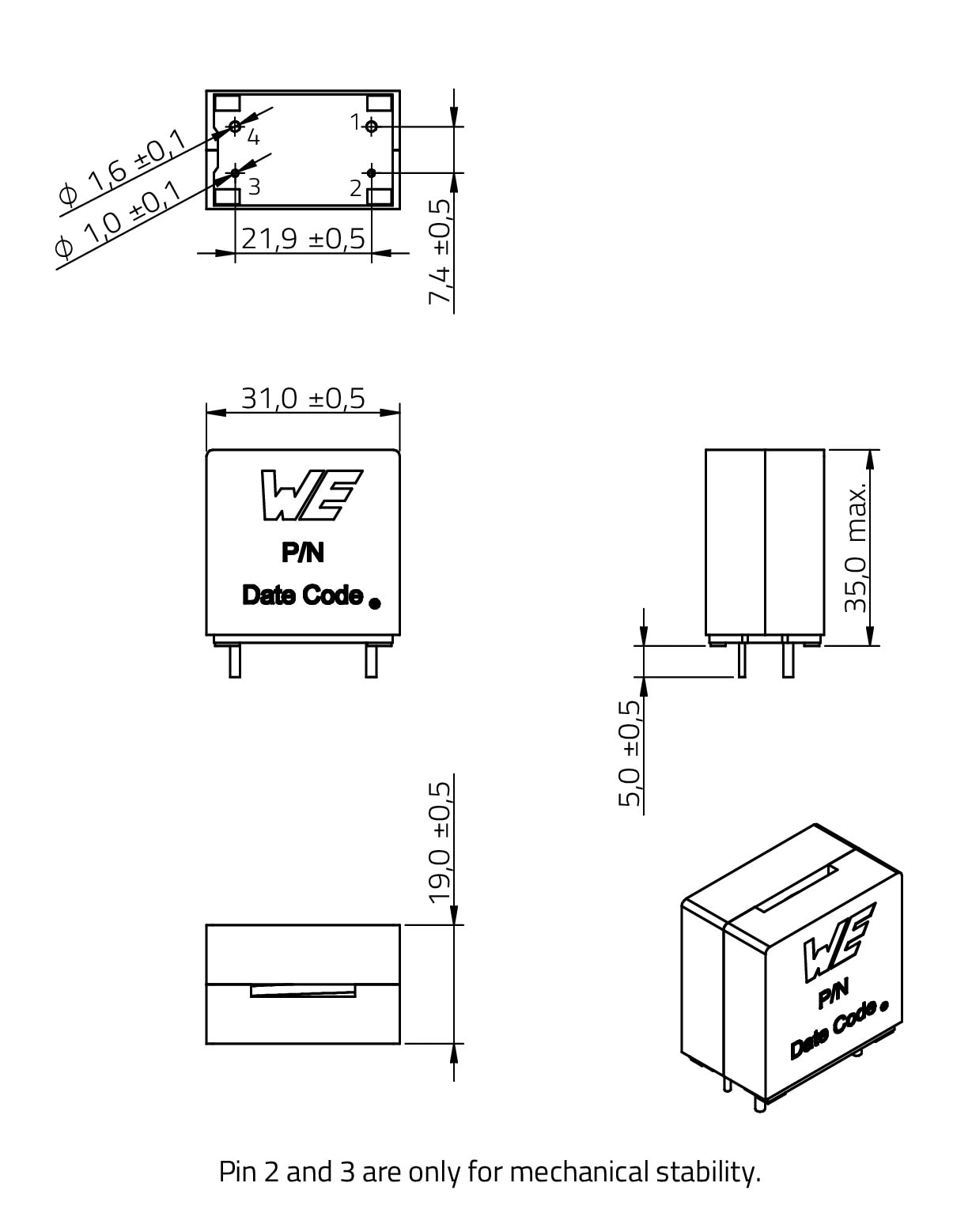

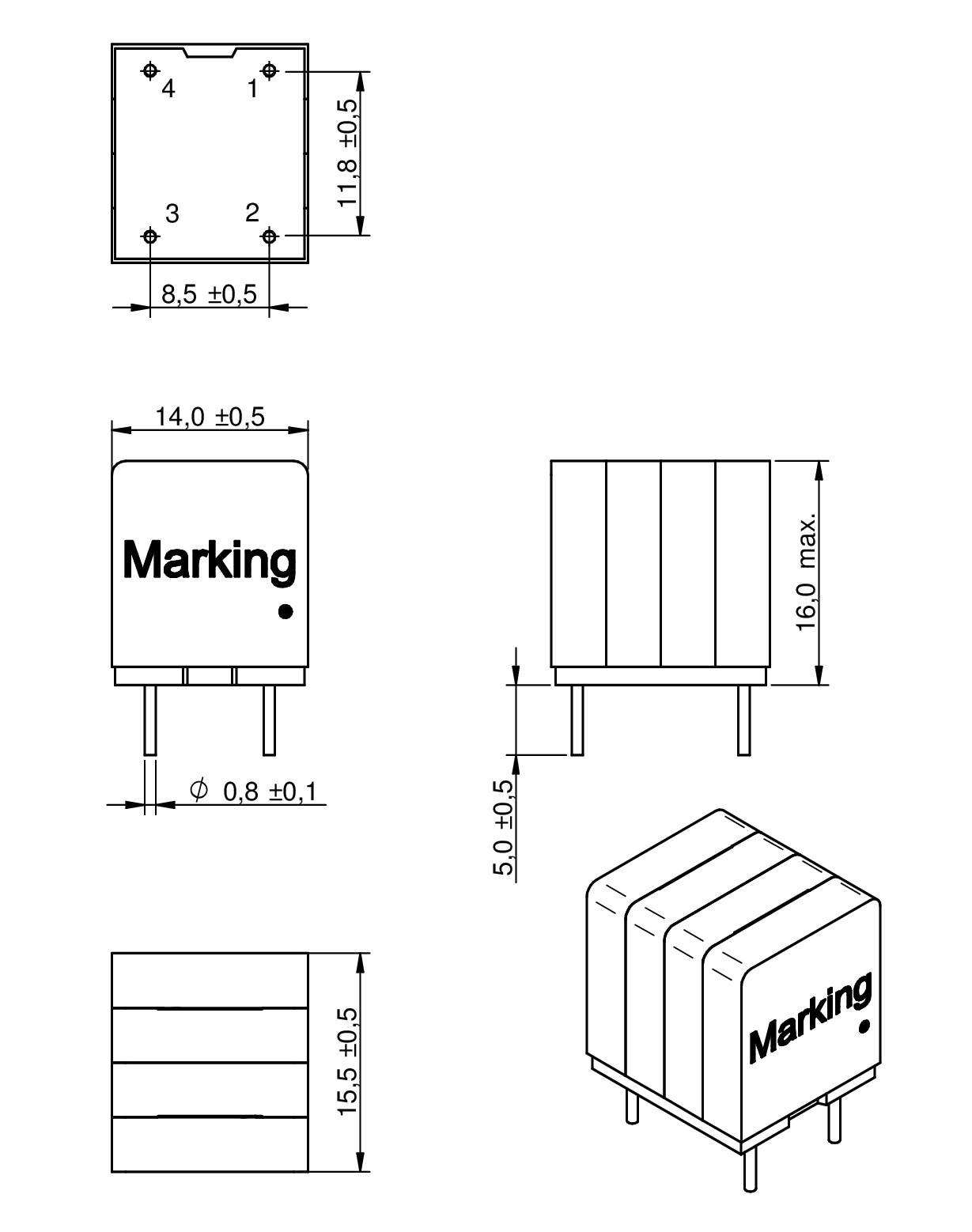

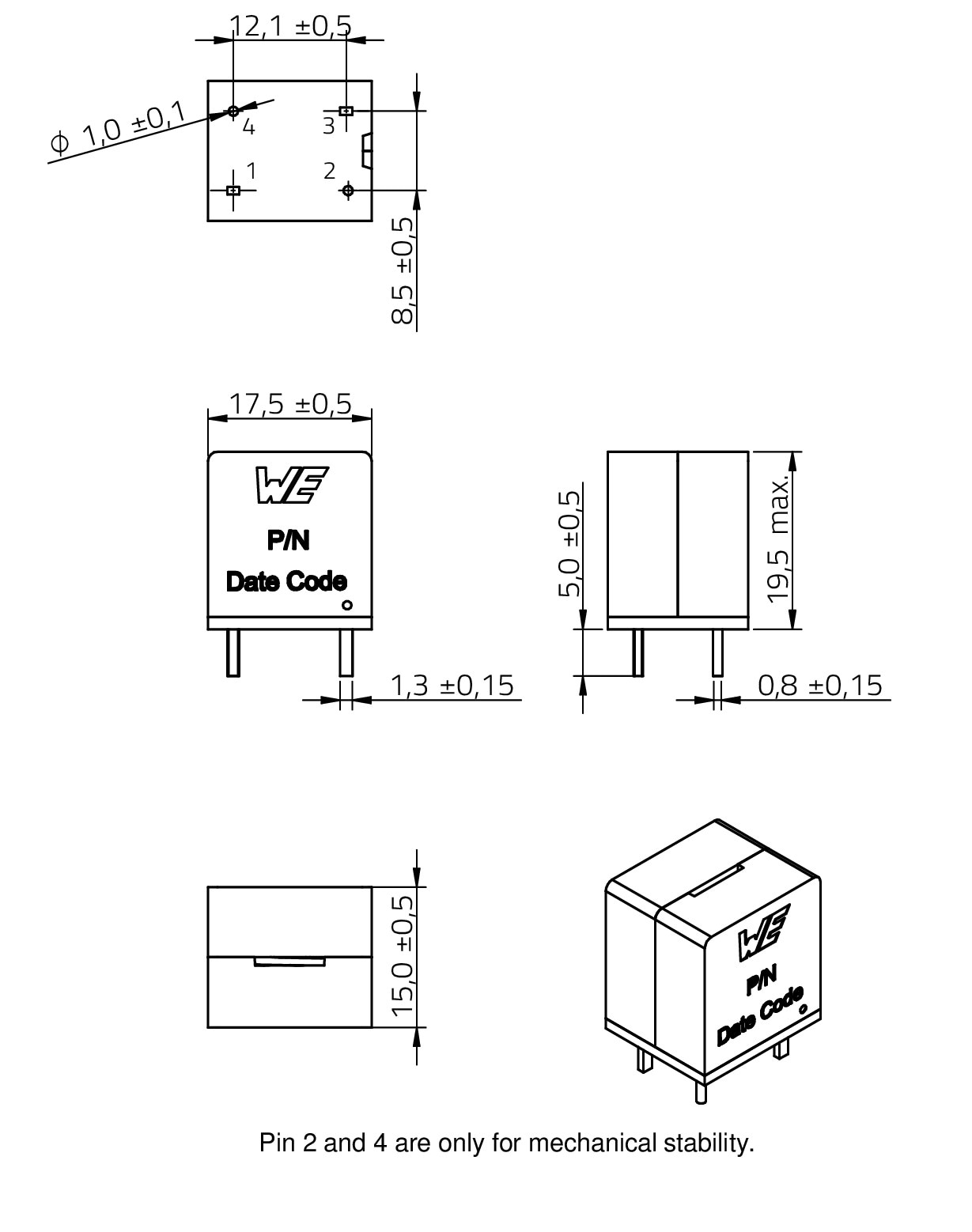

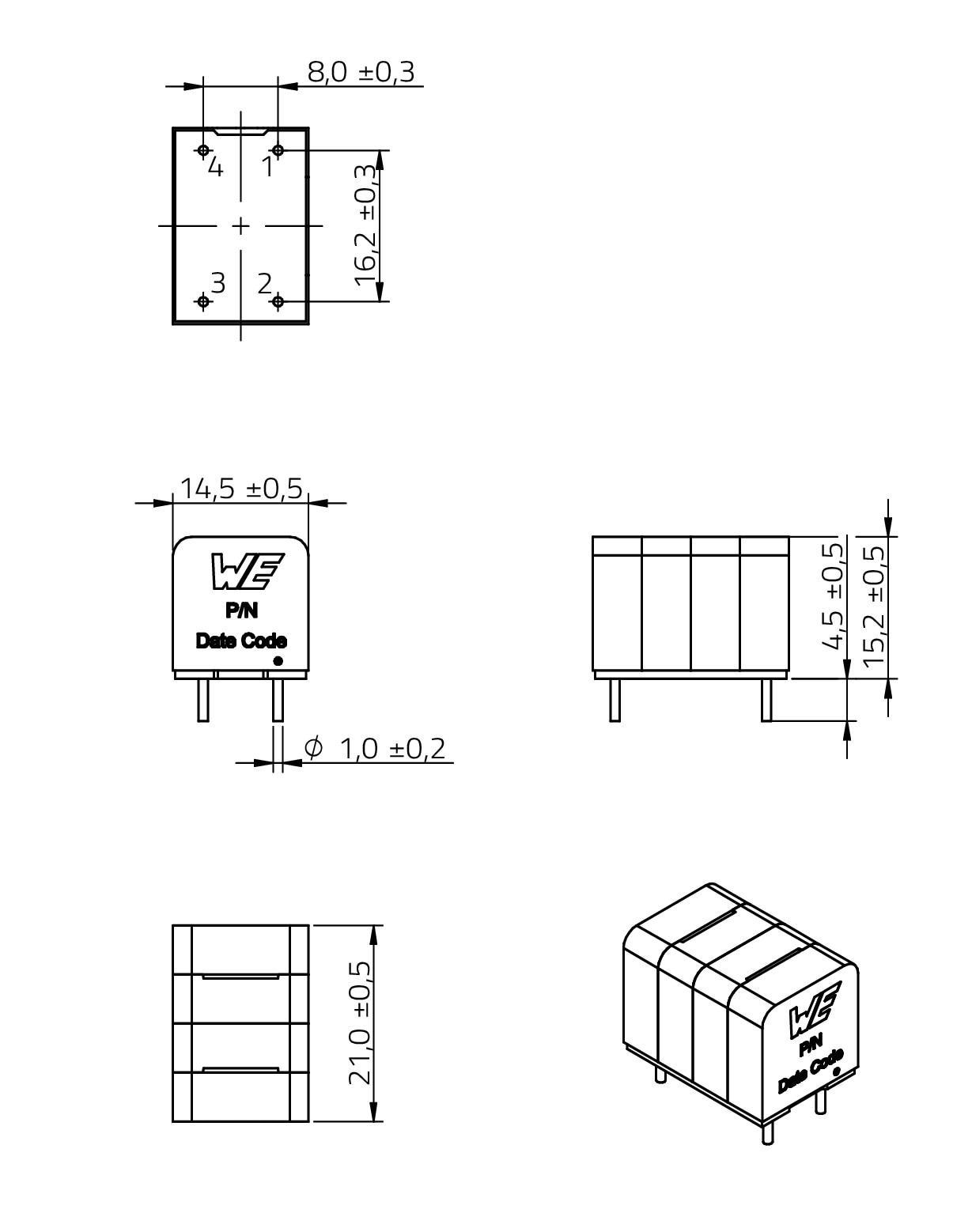

| Size | Dimensions | L (mm) | W (mm) | H (mm) | |
|---|---|---|---|---|---|
1415 | 14 | 15.5 | 16 | ||
1480 | 14 | 8 | 16 | ||
1521 | 14.5 | 21 | 15.2 | ||
1715 | 17.5 | 15 | 19.5 | ||
3119 | 31 | 19 | 35 |
LTSpice files
Characteristics
- 2-in-1 designs with low magnetic coupling
- Low core losses
- Very low RDC
- High saturation currents
- Operating temperature: -40°C to +125°C
Applications
- Class D audio amplifiers
- Digital amplifiers
Application Notes
Products
All
1415
1480
1521
1715
3119
Filter by
show in
article in 5 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | L(µH) | Tol. L | IR(A) | ISAT(A) | fres(MHz) | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|---|
74441521082 | SPEC8.2 µH, ±20%, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Inductance±20% | Rated Current10 A | Saturation Current17.5 A | Self Resonant Frequency16 MHz | –Check availability | ||
7444011715082 | SPEC8.2 µH, ±20%, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Inductance±20% | Rated Current10 A | Saturation Current34 A | Self Resonant Frequency21 MHz | –Check availability | ||
7444013119082 | SPEC8.2 µH, ±20%, 19 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Inductance±20% | Rated Current19 A | Saturation Current52 A | Self Resonant Frequency16 MHz | –Check availability | ||
7444211415082 | SPEC8.2 µH, ±20%, 6.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Inductance±20% | Rated Current6.7 A | Saturation Current16 A | Self Resonant Frequency20 MHz | –Check availability | ||
7444011480082 | SPEC8.2 µH, ±20%, 8.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Inductance±20% | Rated Current8.5 A | Saturation Current16 A | Self Resonant Frequency19 MHz | –Check availability | ||
74441521100 | SPEC10 µH, ±20%, 9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Inductance±20% | Rated Current9 A | Saturation Current13.5 A | Self Resonant Frequency14 MHz | –Check availability | ||
7444011715100 | SPEC10 µH, ±20%, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Inductance±20% | Rated Current10 A | Saturation Current28 A | Self Resonant Frequency19 MHz | –Check availability | ||
7444013119100 | SPEC10 µH, ±20%, 11 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Inductance±20% | Rated Current11 A | Saturation Current58 A | Self Resonant Frequency13 MHz | –Check availability | ||
7444211415100 | SPEC10 µH, ±20%, 6.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Inductance±20% | Rated Current6.7 A | Saturation Current12.5 A | Self Resonant Frequency18 MHz | –Check availability | ||
7444011480100 | SPEC10 µH, ±20%, 8.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Inductance±20% | Rated Current8.5 A | Saturation Current13.5 A | Self Resonant Frequency18 MHz | –Check availability | ||
74441521150 | SPEC15 µH, ±20%, 8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Inductance±20% | Rated Current8 A | Saturation Current10 A | Self Resonant Frequency13 MHz | –Check availability | ||
7444011715150 | SPEC15 µH, ±20%, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Inductance±20% | Rated Current10 A | Saturation Current18 A | Self Resonant Frequency14 MHz | –Check availability | ||
7444013119150 | SPEC15 µH, ±20%, 11 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Inductance±20% | Rated Current11 A | Saturation Current41 A | Self Resonant Frequency11 MHz | –Check availability | ||
7444211415150 | SPEC15 µH, ±20%, 5.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Inductance±20% | Rated Current5.8 A | Saturation Current9.5 A | Self Resonant Frequency13 MHz | –Check availability | ||
7444011480150 | SPEC15 µH, ±20%, 8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Inductance±20% | Rated Current8 A | Saturation Current9.5 A | Self Resonant Frequency13 MHz | –Check availability | ||
74441521220 | SPEC22 µH, ±20%, 7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Inductance±20% | Rated Current7 A | Saturation Current7 A | Self Resonant Frequency9 MHz | –Check availability | ||
7444011715220 | SPEC22 µH, ±20%, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Inductance±20% | Rated Current10 A | Saturation Current12 A | Self Resonant Frequency11 MHz | –Check availability | ||
7444013119220 | SPEC22 µH, ±20%, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Inductance±20% | Rated Current10 A | Saturation Current33 A | Self Resonant Frequency9 MHz | –Check availability | ||
7444211415220 | SPEC22 µH, ±20%, 5.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Inductance±20% | Rated Current5.7 A | Saturation Current7 A | Self Resonant Frequency10 MHz | –Check availability | ||
7444011480220 | SPEC22 µH, ±20%, 8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Inductance±20% | Rated Current8 A | Saturation Current6.5 A | Self Resonant Frequency9 MHz | –Check availability |
