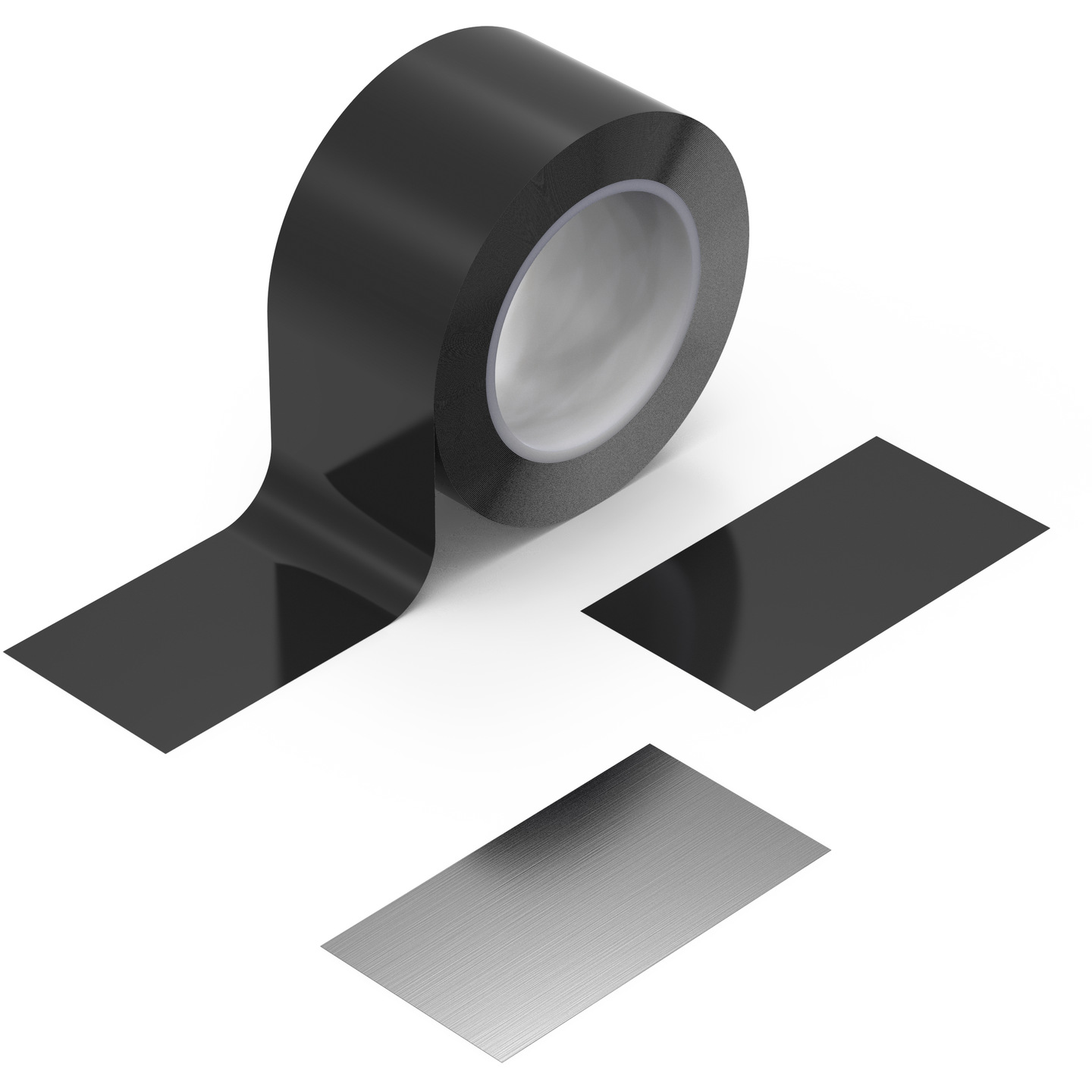

WE-FNCS Flexible Nanocrystalline Sheets

Characteristics

Customizable: Length, width, thickness, shape and permeability
Extremely flexible and thin
Easy placement and handling thanks to standard adhesive backing
High surface resistance
Easy to process
Maximum dimensions available: Length: 100 m (on roll), width: 65 mm (as the standard parts), thickness: 0.3 mm (12 nanocrystalline layers stacked)
Custom designs under request
Operating temperature: -40ºC up to 85ºC (please refer to specific datasheet)

Applications

Cost-effective solution as an alternative to mu-metal alloys for low frequency (LF) magnetic field applications
Power transformers, common-mode chokes, and EMI filters operating in low to medium frequency ranges
Low frequency magnetic fields shielding
DC/DC converters
Hall sensor protection against EMI
Inverters, switching power supplies, and energy storage systems requiring efficient magnetic performance
Wireless power systems

Products

All

Sheet

Roll

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Simulation	Downloads	Status	µʹ @ 128 kHz	L(mm)	W(mm)	H(mm)	Samples
353000	1000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353000_3d (rev1).pdf \| 15.7 KB IGS 353000 (rev1).igs \| 100.4 KB STP 353000 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability1000	Length120 mm	Width65 mm	Height0.06 mm
353001	1000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353001_3d (rev1).pdf \| 15.7 KB IGS 353001 (rev1).igs \| 100.4 KB STP 353001 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability1000	Length120 mm	Width65 mm	Height0.09 mm
353002	1000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353002_3d (rev1).pdf \| 15.7 KB IGS 353002 (rev1).igs \| 100.5 KB STP 353002 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability1000	Length120 mm	Width65 mm	Height0.13 mm
353100	1000, 15000 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353100_3d (rev1).pdf \| 3.8 MB IGS 353100 (rev1).igs \| 18.4 MB STP 353100 (rev1).stp \| 4.3 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability1000	Length15000 mm	Width65 mm	Height0.06 mm
353010	2000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353010_3d (rev1).pdf \| 15.7 KB IGS 353010 (rev1).igs \| 100.4 KB STP 353010 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability2000	Length120 mm	Width65 mm	Height0.06 mm
353011	2000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353011_3d (rev1).pdf \| 15.7 KB IGS 353011 (rev1).igs \| 100.4 KB STP 353011 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability2000	Length120 mm	Width65 mm	Height0.09 mm
353012	2000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353012_3d (rev1).pdf \| 15.7 KB IGS 353012 (rev1).igs \| 100.5 KB STP 353012 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability2000	Length120 mm	Width65 mm	Height0.13 mm
353110	2000, 15000 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353110_3d (rev1).pdf \| 3.8 MB IGS 353110 (rev1).igs \| 18.4 MB STP 353110 (rev1).stp \| 4.3 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability2000	Length15000 mm	Width65 mm	Height0.06 mm
353020	10000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353020_3d (rev1).pdf \| 15.7 KB IGS 353020 (rev1).igs \| 100.4 KB STP 353020 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability10000	Length120 mm	Width65 mm	Height0.06 mm
353021	10000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353021_3d (rev1).pdf \| 15.7 KB IGS 353021 (rev1).igs \| 100.4 KB STP 353021 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability10000	Length120 mm	Width65 mm	Height0.09 mm
353022	10000, 120 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353022_3d (rev1).pdf \| 15.7 KB IGS 353022 (rev1).igs \| 100.5 KB STP 353022 (rev1).stp \| 32.4 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability10000	Length120 mm	Width65 mm	Height0.13 mm
353120	10000, 15000 mm, 65 mm	Simulation	Downloads3 files CAD files ZIP 3D 353120_3d (rev1).pdf \| 3.8 MB IGS 353120 (rev1).igs \| 18.4 MB STP 353120 (rev1).stp \| 4.3 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Complex Permeability10000	Length15000 mm	Width65 mm	Height0.06 mm
