WE-FCAC FLAT

Characteristics

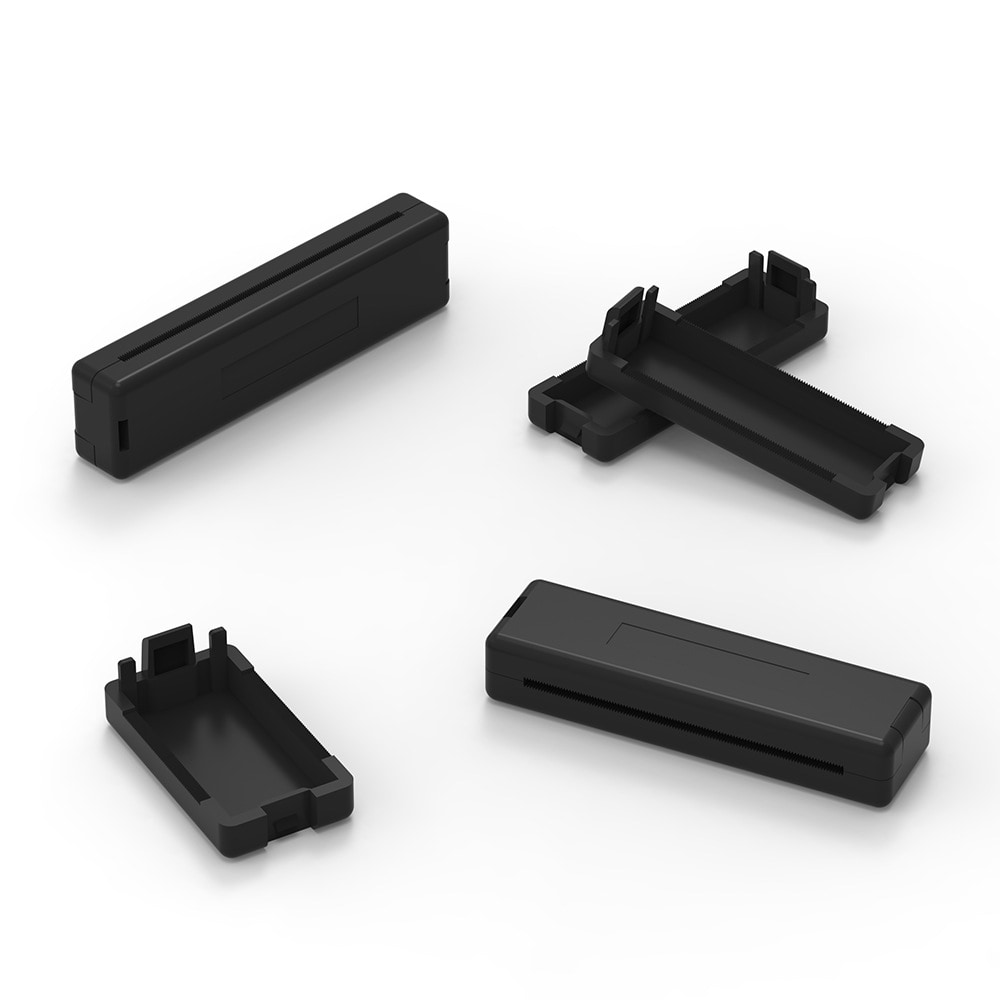

Protects the ferrite and fixes automatically around the flat cable
Material: ABS black
Custom made mountings on request

Applications

Easy fixation for flat cores on ribbon cables
Usable for different cable pole numbers

Products

Filter article data

show article in 0 product lines

article in 0 product lines

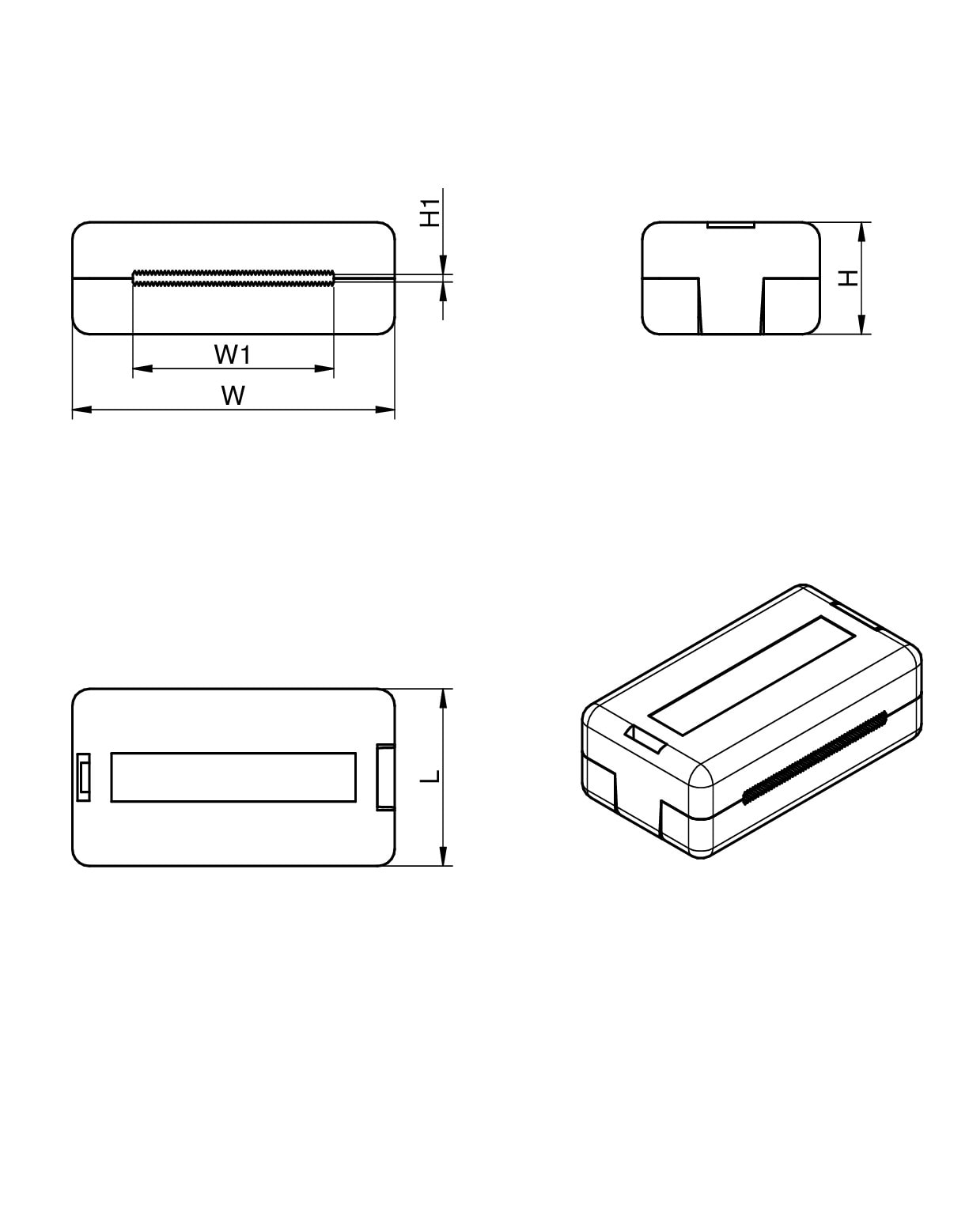

	Order Code	Datasheet	Downloads	Status	Number of Poles	L(mm)	W(mm)	W1(mm)	H(mm)	H₁(mm)	Suitable for	Samples
	74277002	16, 19 mm, 34.5 mm	Downloads2 files CAD files ZIP IGS 74277002 (rev1).igs \| 2.1 MB STP 74277002 (rev1).stp \| 692.5 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Poles16	Length19 mm	Width34.5 mm	Width21.5 mm	Height12 mm	Height0.8 mm	Suitable for 7427224
	74277001	26, 16 mm, 46.5 mm	Downloads2 files CAD files ZIP IGS 74277001 (rev1).igs \| 3.1 MB STP 74277001 (rev1).stp \| 1008.6 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Poles26	Length16 mm	Width46.5 mm	Width34.3 mm	Height10.6 mm	Height0.8 mm	Suitable for 7427210 7427211 7427212 7427213 7427217 7427222 7427223
	74277003	34, 16 mm, 56.6 mm	Downloads2 files CAD files ZIP IGS 74277003 (rev1).igs \| 3.8 MB STP 74277003 (rev1).stp \| 1.2 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Poles34	Length16 mm	Width56.6 mm	Width44.4 mm	Height10.4 mm	Height0.8 mm	Suitable for 7427214 7427218
	74277007	40, 16 mm, 64.2 mm	Downloads2 files CAD files ZIP IGS 74277007 (rev1).igs \| 4.5 MB STP 74277007 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Poles40	Length16 mm	Width64.2 mm	Width53.3 mm	Height10.2 mm	Height0.8 mm	Suitable for 7427216

Comments

Custom made mountings on request!

Learn more
