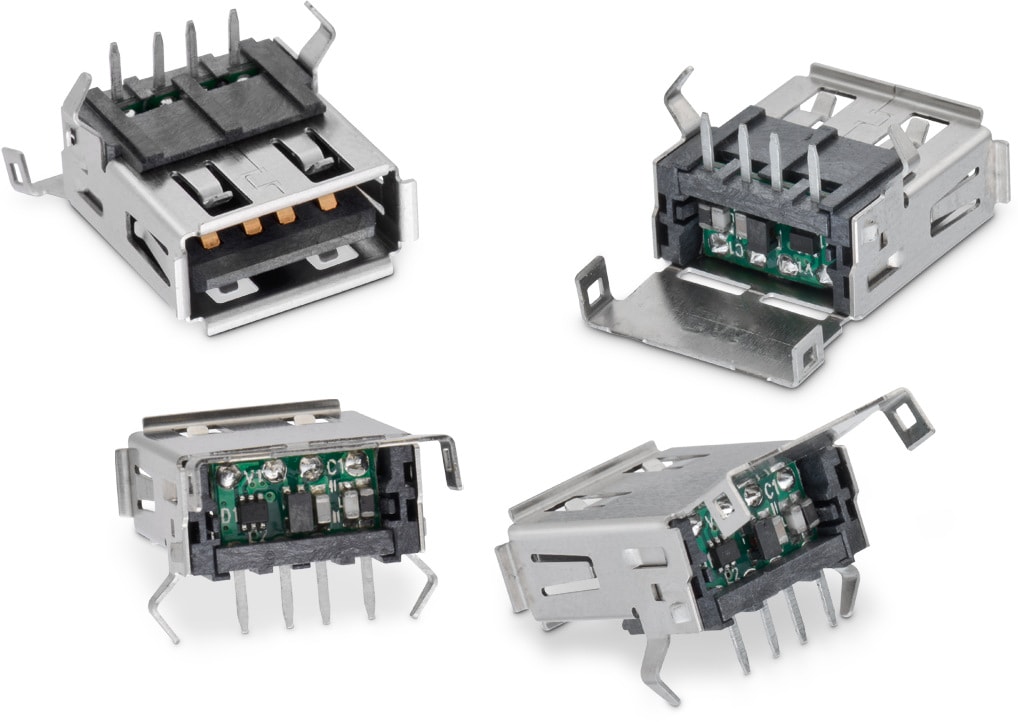

WE-EPLE USB 2.0 A Connector

Characteristics

• USB 2.0 High Speed up to 480 MBit/s
• ESD Protection of data channels and VDD
• Common Mode Noise Rejection
• VDD Differential Mode Noise Rejection
• Common mode attenuation for data lines
• Provides ESD protection for each channel to
  IEC 61000-4-2 (ESD) ±15 kV (air), ±8 kV (contact)
  IEC 61000-4-4 (EFT) (5/50 ns) 20 A (I/O), 40 A VDD
  IEC 61000-4-5 (Lightning) 6 A (8/20 µs)
• Ultra low capacitance: 2 pF typical
• Fast turn on and low clamping voltage
