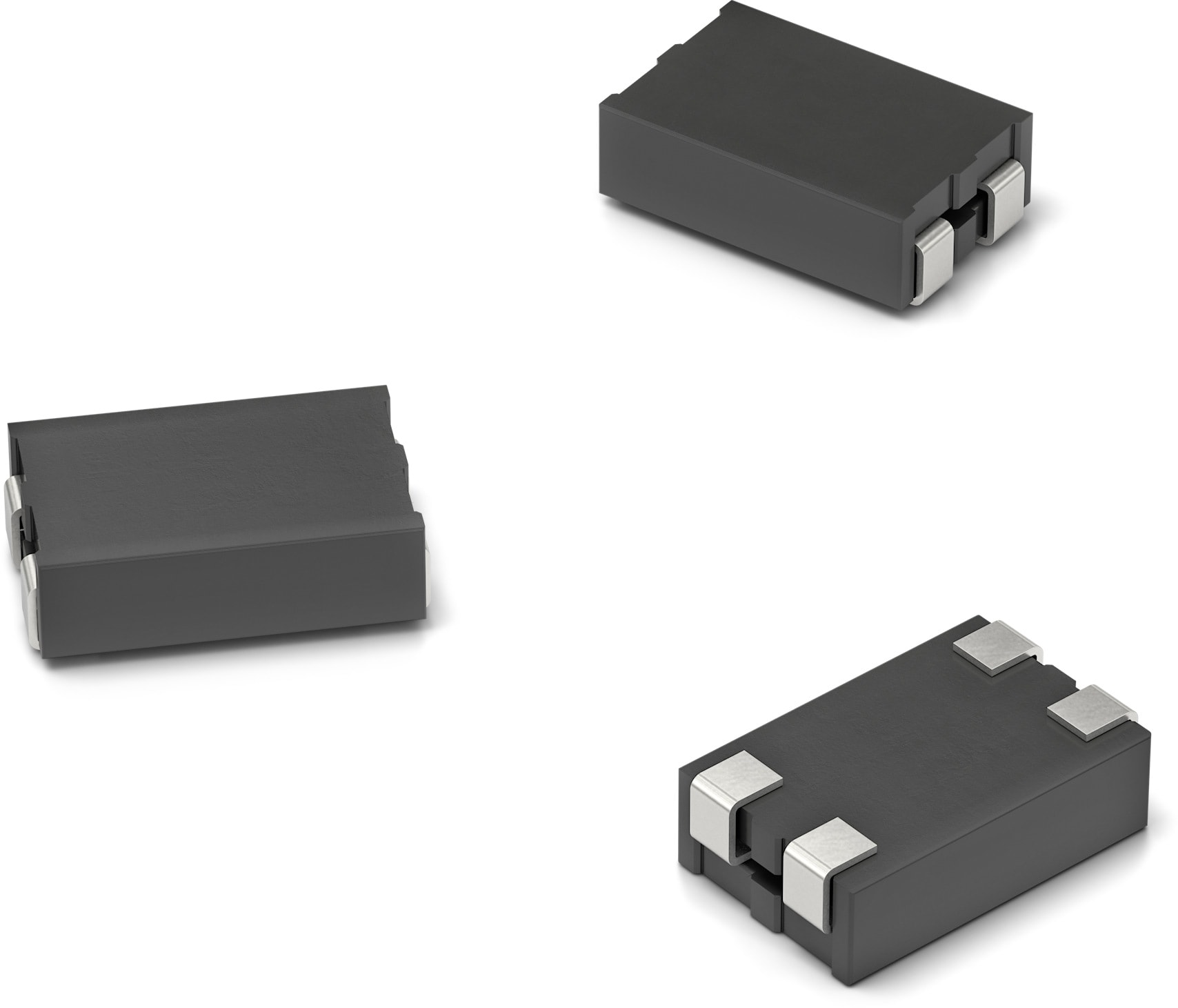

WE-CMS SMT Bead Array

Size	Dimensions	L (mm)	W (mm)	H (mm)	Fl (mm)
4856		5.6	4.8	3.2	1.5
9056		8.9	5.6	3.2	1.5
9085		9.3	8.5	4.8	1.5

LTSpice files

LT
LTSpice_WE-CMS (rev24a).zip
|
1.8 KB

Characteristics

Maximum current capability up to 21 A
Low DC resistance
Impedance up to 200 Ω
Operating temperature: –40 ºC to +125 ºC

Applications

Power supply systems
Symmetric data lines
Power electronics

Products

All

4856

9056

9085

Filter article data

show article in 3 product lines

article in 3 product lines

Order Code	Datasheet	Simulation	Downloads	Status	Z @ 100 MHz(Ω)	I_R(A)	R_{DC max.}(mΩ)	Z @ 25 MHz(Ω)	Design Kit	Samples
7427520	30 Ω, 17 A, 3 mΩ	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-CMS (rev22c).IntLib \| 97.5 KB CDS Cadence_WE-CMS (rev22a).zip \| 383.1 KB EAG Eagle_WE-CMS (rev19a).lbr \| 20.9 KB KIC KiCad_WE-CMS (rev25b).zip \| 130.2 KB ZUK Cadstar_WE-CMS (rev21a).zip \| 6.1 KB CAD files ZIP IGS 7427520 (rev1).igs \| 459.2 KB STP 7427520 (rev1).stp \| 175.6 KB Electric models ZIP PSP PSpice_WE-CMS (rev24a).zip \| 4.1 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz30 Ω	Rated Current17 A	DC Resistance3 mΩ	Impedance @ 25 MHz20 Ω	Design Kit 742793
7427521	52 Ω, 19 A, 3 mΩ	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-CMS (rev22c).IntLib \| 97.5 KB CDS Cadence_WE-CMS (rev22a).zip \| 383.1 KB EAG Eagle_WE-CMS (rev19a).lbr \| 20.9 KB KIC KiCad_WE-CMS (rev25b).zip \| 130.2 KB ZUK Cadstar_WE-CMS (rev21a).zip \| 6.1 KB CAD files ZIP IGS 7427521 (rev1).igs \| 596.7 KB STP 7427521 (rev1).stp \| 188 KB Electric models ZIP PSP PSpice_WE-CMS (rev24a).zip \| 4.1 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz52 Ω	Rated Current19 A	DC Resistance3 mΩ	Impedance @ 25 MHz34 Ω	Design Kit 742791 742793
7427523	83 Ω, 21 A, 3 mΩ	Simulation	Downloads8 files EDA models: Components ZIP ALT WE-CMS (rev22c).IntLib \| 97.5 KB CDS Cadence_WE-CMS (rev22a).zip \| 383.1 KB EAG Eagle_WE-CMS (rev19a).lbr \| 20.9 KB KIC KiCad_WE-CMS (rev25b).zip \| 130.2 KB ZUK Cadstar_WE-CMS (rev21a).zip \| 6.1 KB CAD files ZIP IGS Download_IGS_WE-CMS-9085-7427523 (rev1).igs \| 611.3 KB STP Download_STP_WE-CMS-9085-7427523 (rev1).stp \| 119.4 KB Electric models ZIP PSP PSpice_WE-CMS (rev24a).zip \| 4.1 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz83 Ω	Rated Current21 A	DC Resistance3 mΩ	Impedance @ 25 MHz54 Ω	Design Kit –
