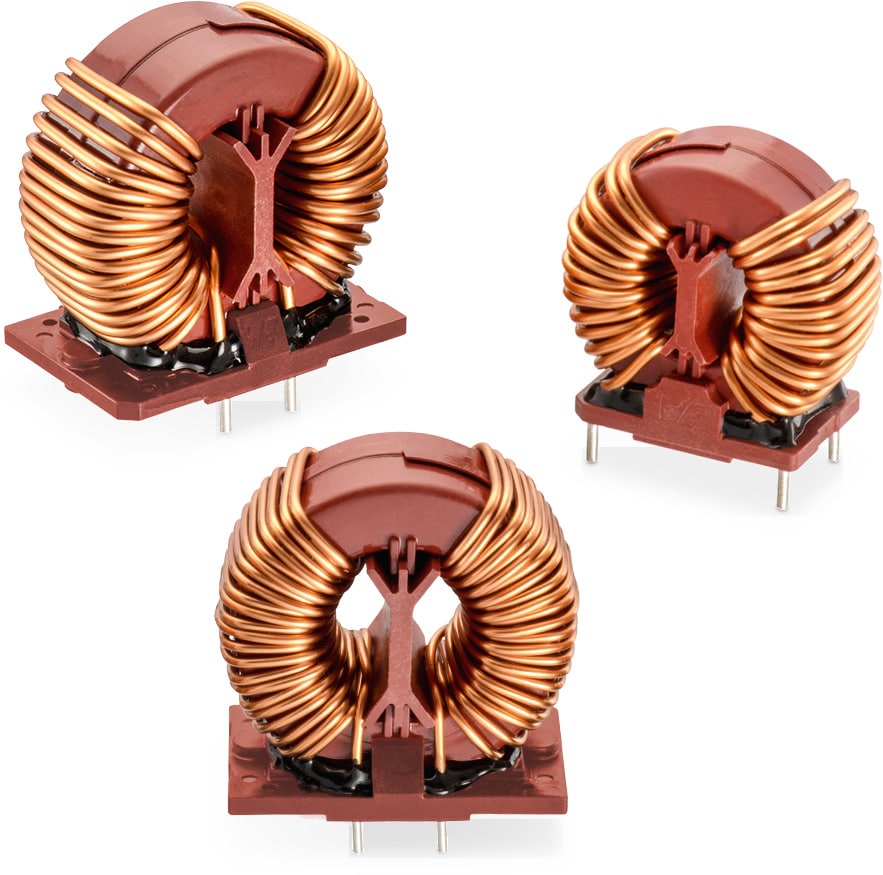

WE-CMB HV Common Mode Power Line Choke

Size	Dimensions	W (mm)	H (mm)	Material	Mount
Type XL		23	39.5	MnZn	THT
Type XXL		28	44.5	MnZn	THT

LTSpice files

LT
LTSpice_WE-CMBHV (rev22a).zip
|
3 KB

Characteristics

Application up to 760 VAC
High permeability MnZn core material
Improved insulation through plastic case and winding spacer
Design according to EN 60938-2
Air and creepage distances ≥ 7 mm
Same land pattern like our CMB Series size XL and CMBNC Series XXL
Up to 22 A rated current
Up to 38 dB attenuation
Suppression frequency range: 5 kHz to 5 MHz
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21

Applications

Power electronics
Power line in- and output filter
Radio interference suppression in motors
Suppression for common mode noise

Application Notes

SN023 Conducted emissions test
PDF

Products

All

Type XL

Type XXL

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Simulation	Downloads	Status	I_R(A)	L₁(mH)	R_{DC max.}(mΩ)	V_R(V (AC))	V_T(V (AC))	Material	L(mm)	W(mm)	H(mm)	Mount	Samples
744830007215	21.5 A, 0.7 mH, 3.8 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744830007215 (rev1).igs \| 8.3 MB STP Download_STP_744830007215 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744830007215 (rev20a).s4p \| 309.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current21.5 A	Inductance [1]0.7 mH	DC Resistance [1]3.8 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length42.5 mm	Width23 mm	Height39.5 mm	MountTHT
744830010185	18.5 A, 1 mH, 5.5 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744830010185 (rev1).igs \| 8.3 MB STP Download_STP_744830010185 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744830010185 (rev20a).s4p \| 309.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current18.5 A	Inductance [1]1 mH	DC Resistance [1]5.5 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length41.5 mm	Width23 mm	Height39.5 mm	MountTHT
744830017132	13.2 A, 1.7 mH, 10 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744830017132 (rev1).igs \| 8.3 MB STP Download_STP_744830017132 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744830017132 (rev20a).s4p \| 308.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current13.2 A	Inductance [1]1.7 mH	DC Resistance [1]10 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length40 mm	Width23 mm	Height39.5 mm	MountTHT
744830025103	10.3 A, 2.5 mH, 18 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744830025103 (rev1).igs \| 8.3 MB STP Download_STP_744830025103 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744830025103 (rev20a).s4p \| 309.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current10.3 A	Inductance [1]2.5 mH	DC Resistance [1]18 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length39.5 mm	Width23 mm	Height39.5 mm	MountTHT
744830039080	8 A, 3.9 mH, 31 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744830039080 (rev1).igs \| 8.3 MB STP Download_STP_744830039080 (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744830039080 (rev20a).s4p \| 309.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current8 A	Inductance [1]3.9 mH	DC Resistance [1]31 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length39.5 mm	Width23 mm	Height39.5 mm	MountTHT
744831010205	20.5 A, 1 mH, 5.5 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744831010205 (rev1).igs \| 11.9 MB STP Download_STP_744831010205 (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744831010205 (rev20a).s4p \| 309 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current20.5 A	Inductance [1]1 mH	DC Resistance [1]5.5 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length46.5 mm	Width28 mm	Height44.5 mm	MountTHT
744831016164	16.4 A, 1.6 mH, 8.5 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744831016164 (rev1).igs \| 11.9 MB STP Download_STP_744831016164 (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744831016164 (rev20a).s4p \| 308.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current16.4 A	Inductance [1]1.6 mH	DC Resistance [1]8.5 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length46.5 mm	Width28 mm	Height44.5 mm	MountTHT
744831020133	13.3 A, 2 mH, 13 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744831020133 (rev1).igs \| 11.9 MB STP Download_STP_744831020133 (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744831020133 (rev20a).s4p \| 308.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current13.3 A	Inductance [1]2 mH	DC Resistance [1]13 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length45.5 mm	Width28 mm	Height44.5 mm	MountTHT
744831034090	9 A, 3.4 mH, 27 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744831034090 (rev1).igs \| 11.9 MB STP Download_STP_744831034090 (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744831034090 (rev20a).s4p \| 309.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current9 A	Inductance [1]3.4 mH	DC Resistance [1]27 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length44.5 mm	Width28 mm	Height44.5 mm	MountTHT
744831047068	6.8 A, 4.7 mH, 44 mΩ	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-CMB HV (rev22b).IntLib \| 5.2 MB CDS Cadence_WE-CMB_HV (rev25a).zip \| 29.6 MB EAG Eagle_WE-CMB-HV (rev19a).lbr KIC KiCad_WE-CMBHV (rev25b).zip \| 54.4 MB ZUK Cadstar_WE-CMBHV (rev19a).zip \| 9.2 KB CAD files ZIP IGS Download_IGS_744831047068 (rev1).igs \| 11.9 MB STP Download_STP_744831047068 (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WE-CMBHV (rev22a).zip \| 5.9 KB S S-Parameter_744831047068 (rev20a).s4p \| 309.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current6.8 A	Inductance [1]4.7 mH	DC Resistance [1]44 mΩ	Rated Voltage760 V (AC)	Insulation Test Voltage3000 V (AC)	MaterialMnZn	Length44.5 mm	Width28 mm	Height44.5 mm	MountTHT
