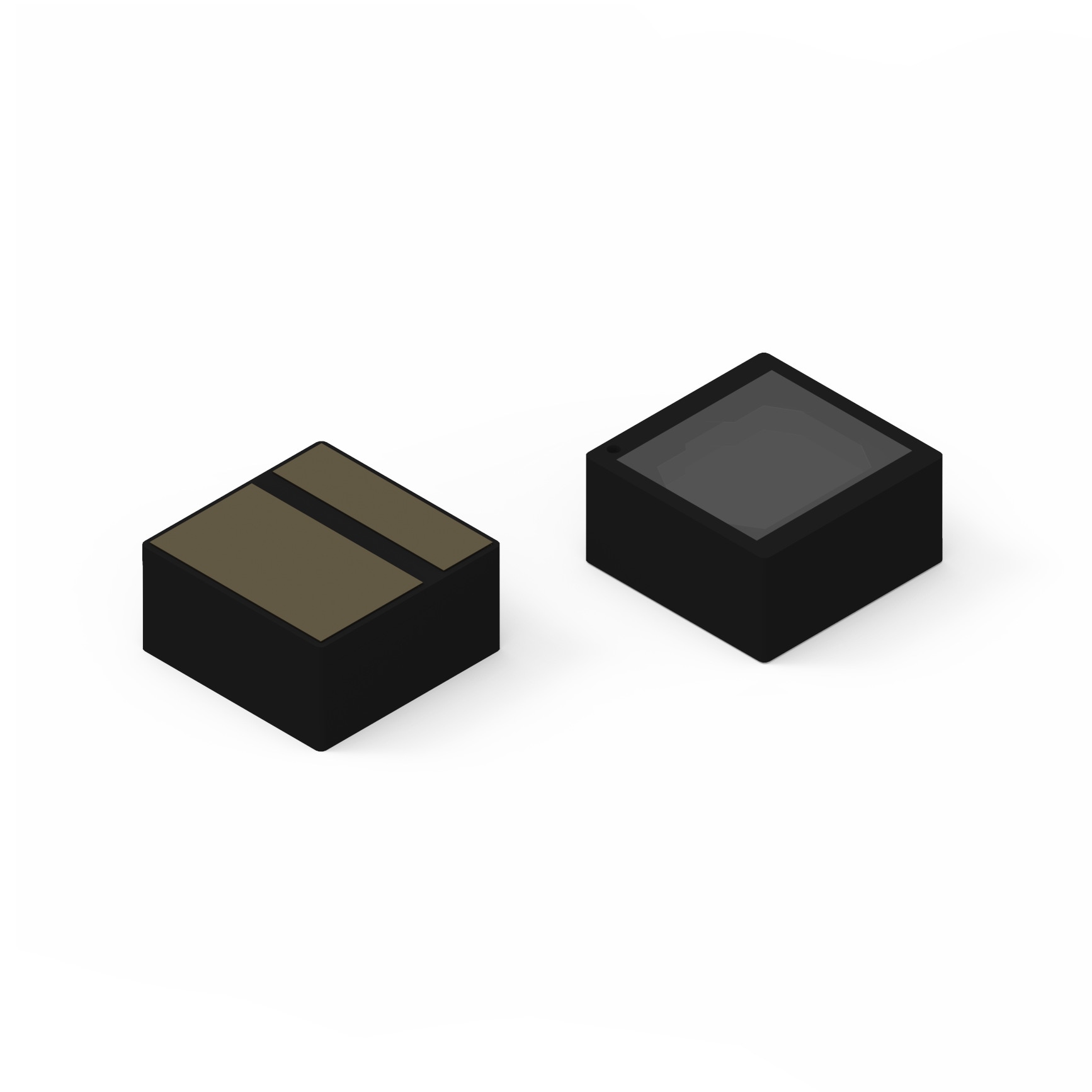

WL-VCSL Vertical Cavity Surface Emitting Laser

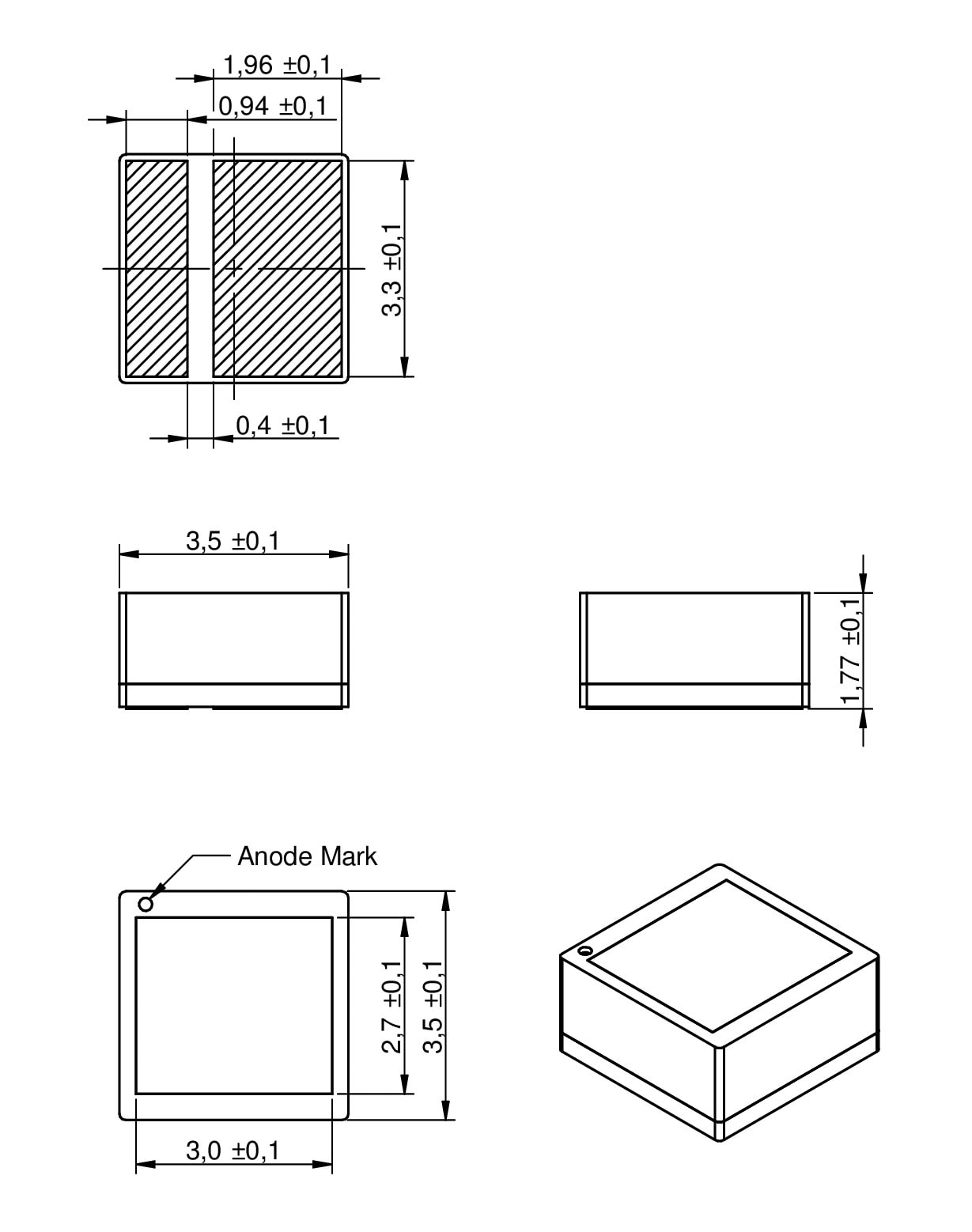

Size	Dimensions	L (mm)	W (mm)	H (mm)
Size 3535		3.5	3.5	1.8

LTSpice files

LT
LTSpice_WL-VCSL (rev22a).zip
|
1.9 KB

Characteristics

High optical power
Homogeneous radiation patterns
60° x 45°
110° x 85°
Wavelength: 850 nm / 940 nm

Applications

Biometrical recognition
LiDAR
3D recognition
Time of flight
Autonomous robotics
Autonomous industry

Products

Size 3535

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Downloads	Status	λ_{Peak typ.}(nm)	Φ_{e typ.}(mW)	V_{F typ.}(V)	2θ_{50%,X typ.}(°)	2θ_{50%,Y typ.}(°)	SamplesAvailability & Sample
159353850A6300	SPEC850 nm, 2100 mW, 2.1 V	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WL-VCSL (rev22b).IntLib \| 47 KB CDS Cadence_WL-VCSL (rev25a).zip \| 83.5 KB EAG Eagle_WL-VCSL (rev22a).lbr \| 15.2 KB KIC KiCad_WL-VCSL (rev26a).zip \| 27.8 KB CAD files ZIP IGS IGS_WL-VCSL_3535 (rev1).igs \| 410.7 KB STP STP_WL-VCSL_3535 (rev1).stp \| 111.1 KB Electric models ZIP PSP PSpice_WL-VCSL (rev22a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]850 nm	Radiant Flux [typ.]2100 mW	Forward Voltage [typ.]2.1 V	Viewing Angle (X-Axis) [typ.]60 °	Viewing Angle (Y-Axis) [typ.]45 °	–Check availability
159353850B1300	SPEC850 nm, 2100 mW, 2.1 V	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WL-VCSL (rev22b).IntLib \| 47 KB CDS Cadence_WL-VCSL (rev25a).zip \| 83.5 KB EAG Eagle_WL-VCSL (rev22a).lbr \| 15.2 KB KIC KiCad_WL-VCSL (rev26a).zip \| 27.8 KB CAD files ZIP IGS IGS_WL-VCSL_3535 (rev1).igs \| 410.7 KB STP STP_WL-VCSL_3535 (rev1).stp \| 111.1 KB Electric models ZIP PSP PSpice_WL-VCSL (rev22a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]850 nm	Radiant Flux [typ.]2100 mW	Forward Voltage [typ.]2.1 V	Viewing Angle (X-Axis) [typ.]110 °	Viewing Angle (Y-Axis) [typ.]85 °	–Check availability
159353940B1300	SPEC940 nm, 1800 mW, 2 V	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WL-VCSL (rev22b).IntLib \| 47 KB CDS Cadence_WL-VCSL (rev25a).zip \| 83.5 KB EAG Eagle_WL-VCSL (rev22a).lbr \| 15.2 KB KIC KiCad_WL-VCSL (rev26a).zip \| 27.8 KB CAD files ZIP IGS IGS_WL-VCSL_3535 (rev1).igs \| 410.7 KB STP STP_WL-VCSL_3535 (rev1).stp \| 111.1 KB Electric models ZIP PSP PSpice_WL-VCSL (rev22a).zip \| 3.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]940 nm	Radiant Flux [typ.]1800 mW	Forward Voltage [typ.]2 V	Viewing Angle (X-Axis) [typ.]110 °	Viewing Angle (Y-Axis) [typ.]85 °	–Check availability
159353940A6300	SPEC940 nm, 1900 mW, 2 V	Availability –	Downloads26 files EDA models: Components ZIP ALT Altium_WL-VCSL (rev22b).IntLib \| 47 KB CDS Cadence_WL-VCSL (rev25a).zip \| 83.5 KB EAG Eagle_WL-VCSL (rev22a).lbr \| 15.2 KB KIC KiCad_WL-VCSL (rev26a).zip \| 27.8 KB CAD files ZIP IGS IGS_WL-VCSL_3535 (rev1).igs \| 410.7 KB STP STP_WL-VCSL_3535 (rev1).stp \| 111.1 KB Electric models ZIP PSP PSpice_WL-VCSL (rev22a).zip \| 3.2 KB RAY files ASA ASAP-and-APEX_dis_159353940A6300_5M (rev1p0).zip \| 121.2 MB COD CodeV_ray_159353940A6300_5M (rev1p0).zip \| 121.2 MB FRE Fred_dat_159353940A6300_5M (rev1p0).zip \| 121.2 MB FRE Fred_txt_159353940A6300_5M (rev1p0).zip \| 188.7 MB LIG LightTools_ray_159353940A6300_5M (rev1p0).zip \| 121.2 MB LIG LightTools_txt_159353940A6300_5M (rev1p0).zip \| 188.7 MB LUC LucidShape_ray_159353940A6300_5M (rev1p0).zip \| 121.2 MB LUC LucidShape_txt_159353940A6300_5M (rev1p0).zip \| 188.7 MB OPT OpTaliX_dis_159353940A6300_5M (rev1p0).zip \| 121.2 MB OPT OpTaliX_txt_159353940A6300_5M (rev1p0).zip \| 188.7 MB OPT OptiCAD_dat_159353940A6300_5M (rev1p0).zip \| 121.2 MB OPT OptiCAD_txt_159353940A6300_5M (rev1p0).zip \| 188.7 MB RIR Photopia_rir_159353940A6300_5M (rev1p0).zip \| 121.2 MB SIM Simulux_ray_159353940A6300_5M (rev1p0).zip \| 121.2 MB SPE Speos_ray_159353940A6300_5M (rev1p0).zip \| 125.3 MB SRC Lucaray-maker_src_159353940A6300_5M (rev1p0).zip \| 121.2 MB TRA TracePro_txt_159353940A6300_5M (rev1p0).zip \| 188.7 MB ZEM ZemaxBin_dat_159353940A6300_5M (rev1p0).zip \| 121.2 MB ZEM Zemax_dat_159353940A6300_5M (rev1p0).zip \| 188.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]940 nm	Radiant Flux [typ.]1900 mW	Forward Voltage [typ.]2 V	Viewing Angle (X-Axis) [typ.]60 °	Viewing Angle (Y-Axis) [typ.]45 °	–Check availability
