WR-ADPT TNC to TNC

EXTENDED
WR-ADPT TNC to TNC

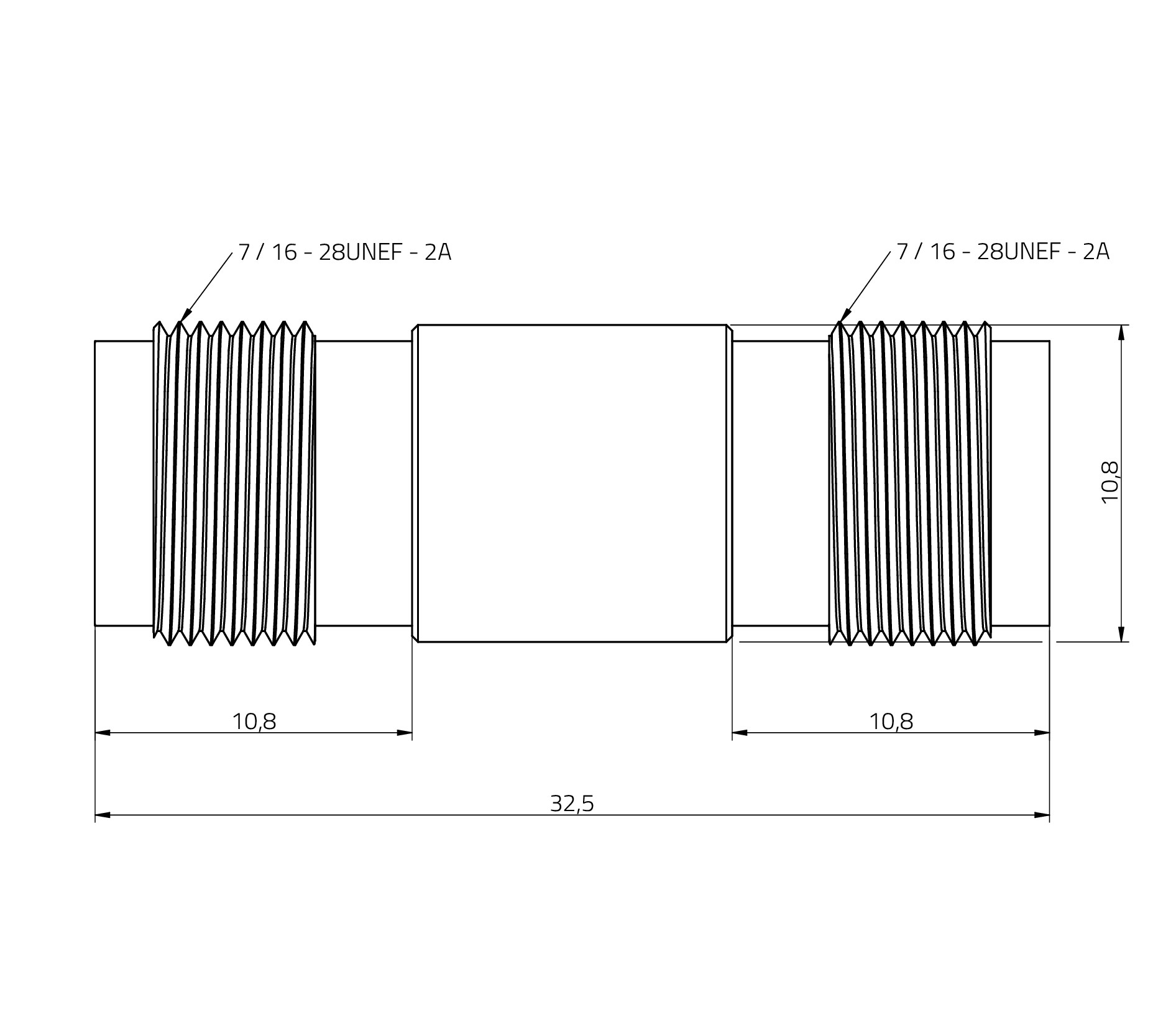

SizeDimen­sions
EXT.TNC Straight Jack ┃TNC Straight Jack

Characteristics

  • Interface: MIL-STD-348
  • Mating Cycle: 200 Cycles
  • Impedance: 50Ω
  • Plating: Nickel and Gold

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • High power machinery
  • Outdoor or humidity environment

Products

TNC Straight Jack ┃TNC Straight Jack
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Gender 1
Connector Type 2
Gender 2
f
Operating Temperature
Samples
WR-ADPT TNC to TNC
64470170111000
TNC, Jack, TNC
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Connector Type 1TNC
Gender 1Jack
Connector Type 2TNC
Gender 2Jack
Frequency RangeDC~4 GHz
Operating Temperature -65 °C up to +165 °C

Mates with

WR-TNC TNC PCB Connectors
