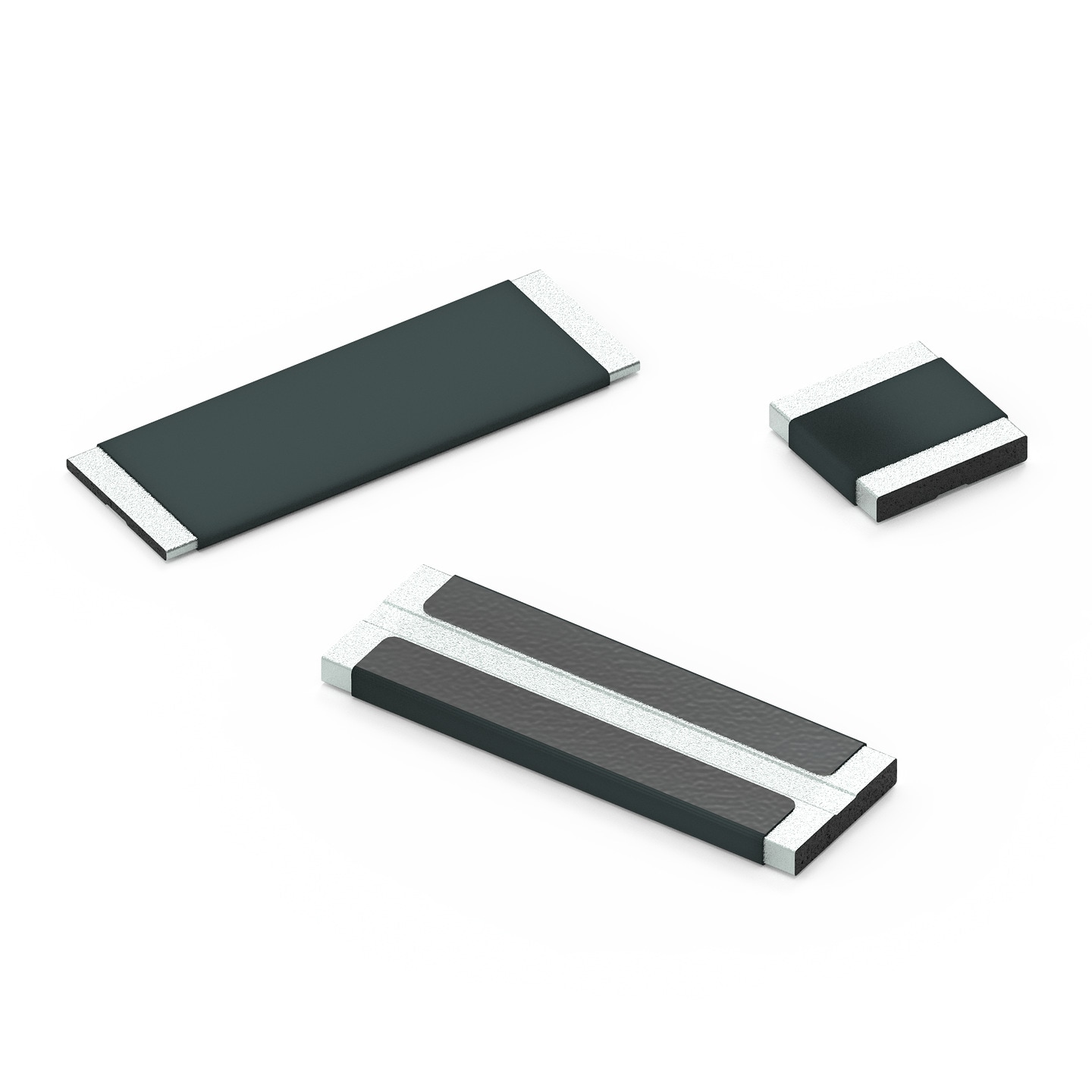

WE-TGFG Graphite Foam Gasket

Characteristics

Customizable shape, dimensions and profile
Versatile solution - combines gap filling & heat spreading properties
Electrically insulating
Silicone-free alternative to conventional gap fillers
Do you wish an individual offer for WE-TGFG? Request now! Request for customized components WE-TGFG

Applications

Applications where the use of silicone is restricted
Power supplies
High speed systems
Compact designs

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	L(mm)	W(mm)	H(mm)	κ(W/(m*K))	Samples
407150015115	15 mm, 15 mm, 11.5 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTGFG_407150015115 (rev1).igs \| 562.3 KB STP STP_TmTGFG_407150015115 (rev1).stp \| 213.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length15 mm	Width15 mm	Height11.5 mm	Thermal Conductivity400 W/(m*K)
407150015200	15 mm, 15 mm, 20 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTGFG_407150015200 (rev1).igs \| 560.3 KB STP STP_TmTGFG_407150015200 (rev1).stp \| 213.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length15 mm	Width15 mm	Height20 mm	Thermal Conductivity400 W/(m*K)
407150015050	15 mm, 15 mm, 5 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTGFG_407150015050 (rev1).igs \| 560.1 KB STP STP_TmTGFG_407150015050 (rev1).stp \| 213.2 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length15 mm	Width15 mm	Height5 mm	Thermal Conductivity400 W/(m*K)
407150015030	15 mm, 15 mm, 3 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTGFG_407150015030 (rev1).igs \| 562.6 KB STP STP_TmTGFG_407150015030 (rev1).stp \| 213.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length15 mm	Width15 mm	Height3 mm	Thermal Conductivity400 W/(m*K)
407160016150	16 mm, 16 mm, 15 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTGFG_407160016150 (rev1).igs \| 557 KB STP STP_TmTGFG_407160016150 (rev1).stp \| 213.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length16 mm	Width16 mm	Height15 mm	Thermal Conductivity400 W/(m*K)
407150045015	45 mm, 15 mm, 1.5 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTFGF_407150045015 (rev1).igs \| 565.7 KB STP STP_TmTGFG_407150045015 (rev1).stp \| 213.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length45 mm	Width15 mm	Height1.5 mm	Thermal Conductivity400 W/(m*K)
407200045020	45 mm, 20 mm, 2 mm	Downloads3 files EDA models: Components ZIP ANS ANSYS_WE-TGFG (rev22a).a3dcomp \| 289.3 KB CAD files ZIP IGS IGS_TmTGFG_407200045020 (rev1).igs \| 566.4 KB STP STP_TmTGFG_407200045020 (rev1).stp \| 213.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length45 mm	Width20 mm	Height2 mm	Thermal Conductivity400 W/(m*K)

Sample Kit

Sample Kit Heat Spreading Solutions

Learn more
