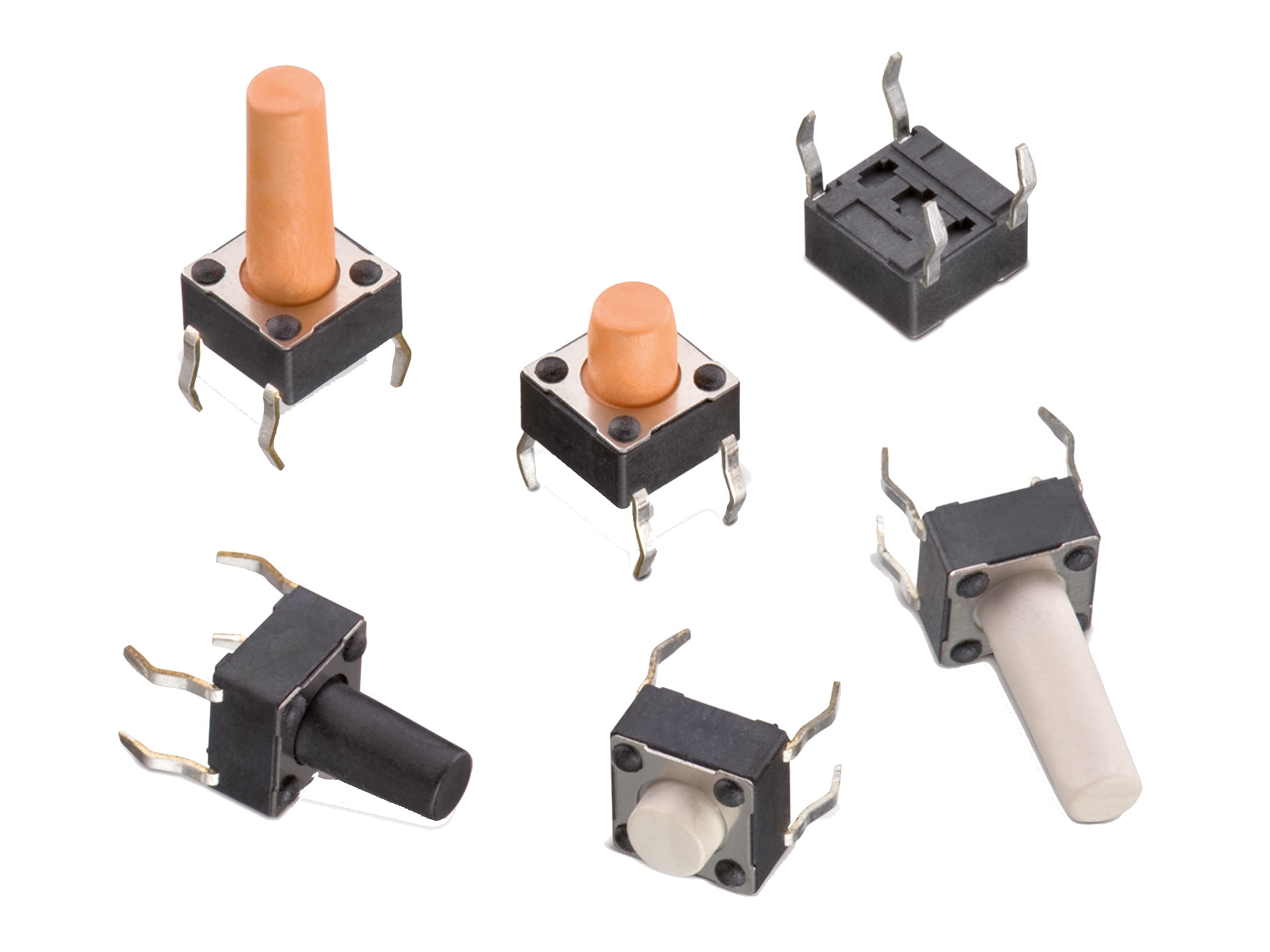

WS-TATV THT Tact Switch 6x6 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	PPA
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g; 360 g
Electrical Life	200000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Bulk

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process
430186043716	4.3 mm, 160 g, 1000000 Cycles	Downloads4 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430186043716 (rev1).igs \| 1.1 MB STP 430186043716 (rev1).stp \| 394.9 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height4.3 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
430156043726	4.3 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156043726 (rev1).igs \| 1.1 MB STP 430156043726 (rev1).stp \| 394.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height4.3 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
430156043736	4.3 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156043736 (rev1).igs \| 1.1 MB STP 430156043736 (rev1).stp \| 394.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height4.3 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
430186050716	5 mm, 160 g, 1000000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430186050716 (rev1).igs \| 1.1 MB STP 430186050716 (rev1).stp \| 394.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
430156050726	5 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156050726 (rev1).igs \| 1.1 MB STP 430156050726 (rev1).stp \| 394.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
430156050736	5 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156050736 (rev1).igs \| 1.1 MB STP 430156050736 (rev1).stp \| 394.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
430186070716	7 mm, 160 g, 1000000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430186070716 (rev1).igs \| 1.1 MB STP 430186070716 (rev1).stp \| 513.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height7 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
430156070726	7 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156070726 (rev1).igs \| 1.1 MB STP 430156070726 (rev1).stp \| 513.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height7 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
430156070736	7 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156070736 (rev1).igs \| 1.1 MB STP 430156070736 (rev1).stp \| 513.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height7 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
430186095716	9.5 mm, 160 g, 1000000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430186095716 (rev1).igs \| 1.3 MB STP 430186095716 (rev1).stp \| 513.5 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height9.5 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
430156095726	9.5 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156095726 (rev1).igs \| 1.3 MB STP 430156095726 (rev1).stp \| 513.5 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height9.5 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
430156095736	9.5 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS 430156095736 (rev1).igs \| 1.3 MB STP 430156095736 (rev1).stp \| 513.5 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height9.5 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
430186130716	13 mm, 160 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS IGS_4301x61307x6 (rev1).igs \| 1.1 MB STP STP_4301x61307x6 (rev1).stp \| 512.7 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height13 mm	Operation Force160 g	Electrical Life200000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
430156130726	13 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS IGS_4301x61307x6 (rev1).igs \| 1.1 MB STP STP_4301x61307x6 (rev1).stp \| 512.7 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height13 mm	Operation Force260 g	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
430156130736	13 mm, 360 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TATV (rev24a).IntLib \| 541 KB CDS Cadence_WS-TATV (rev24a).zip \| 2.2 MB EAG Eagle_WS-TATV (rev24a).lbr \| 88.7 KB CAD files ZIP IGS IGS_4301x61307x6 (rev1).igs \| 1.1 MB STP STP_4301x61307x6 (rev1).stp \| 512.7 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height13 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
