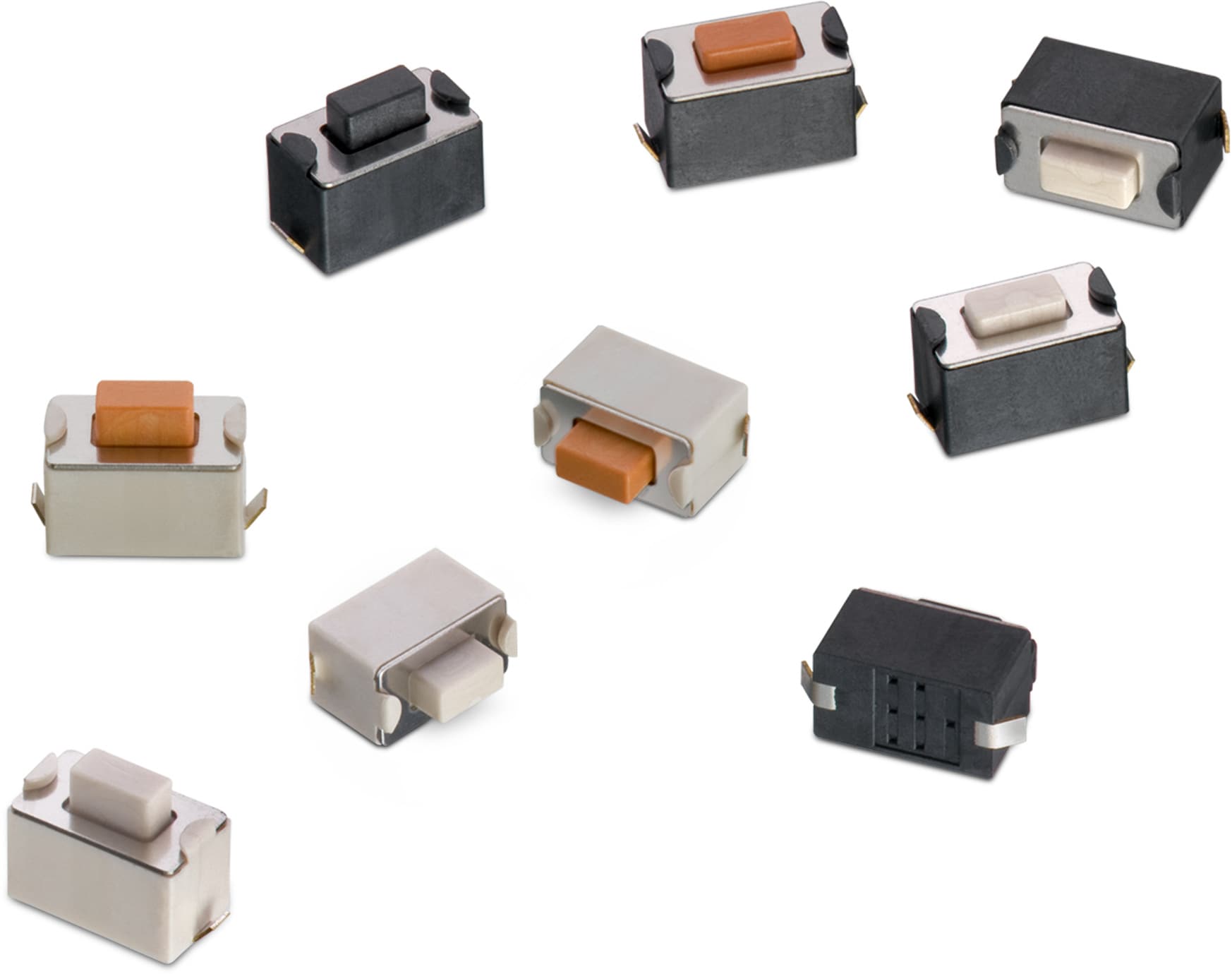

WS-TASV J-Bend SMT Tact Switch 6.0x3.5 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g; 360 g
Electrical Life	30000 Cycles; 50000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process
434123043816	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS 434123043816 (rev1).igs \| 570.1 KB STP 434123043816 (rev1).stp \| 203.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height4.3 mm	Operation Force160 g	Electrical Life50000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
434113043826	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS 434113043826 (rev1).igs \| 570.1 KB STP 434113043826 (rev1).stp \| 203.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height4.3 mm	Operation Force260 g	Electrical Life30000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
434123043836	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS 434123043836 (rev1).igs \| 570.1 KB STP 434123043836 (rev1).stp \| 203.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height4.3 mm	Operation Force360 g	Electrical Life50000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified
434123050816	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS 434123050816 (rev1).igs \| 651.6 KB STP 434123050816 (rev1).stp \| 184.8 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5 mm	Operation Force160 g	Electrical Life50000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified
434113050826	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS 434113050826 (rev1).igs \| 651.6 KB STP 434113050826 (rev1).stp \| 184.8 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5 mm	Operation Force260 g	Electrical Life30000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified
434123050836	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS 434123050836 (rev1).igs \| 651.6 KB STP 434123050836 (rev1).stp \| 184.8 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height5 mm	Operation Force360 g	Electrical Life50000 Cycles	Actuator ColorSalmon	WashableNo	Vaporphase processnot specified

#TimetoSwitch

Tact Switches

#TimetoSwitch

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test. Polyimide tape or silicone rubber protect the switch even in tough environments. The switch range includes various high quality solutions like dip, rotary, detector, micro, slide, rocker switches and encoder. Available from stock. Samples free of charge.

Product Benefits:

IP67
Long lifetime
High durability
Corrosion resistant metal elements
Full load life cycle test
Tight tolerance due to automated production

Characteristics

The corrosion resistance of all metallic components was tested by a 48-hour salt-spray test.

The snap dome is made of stainless steel to ensure high reliability and reduced friction. The indicated switching cycles have been tested under full load.

Polyimide film provides protection against environmental influences and silicone inserts are used for harsh industrial environments.

The plastic material withstands five times reflow and has been tested for flammability according to UL.

Automated production reduces mechanical deviations and ensures high consistency of mechanical parameters.
