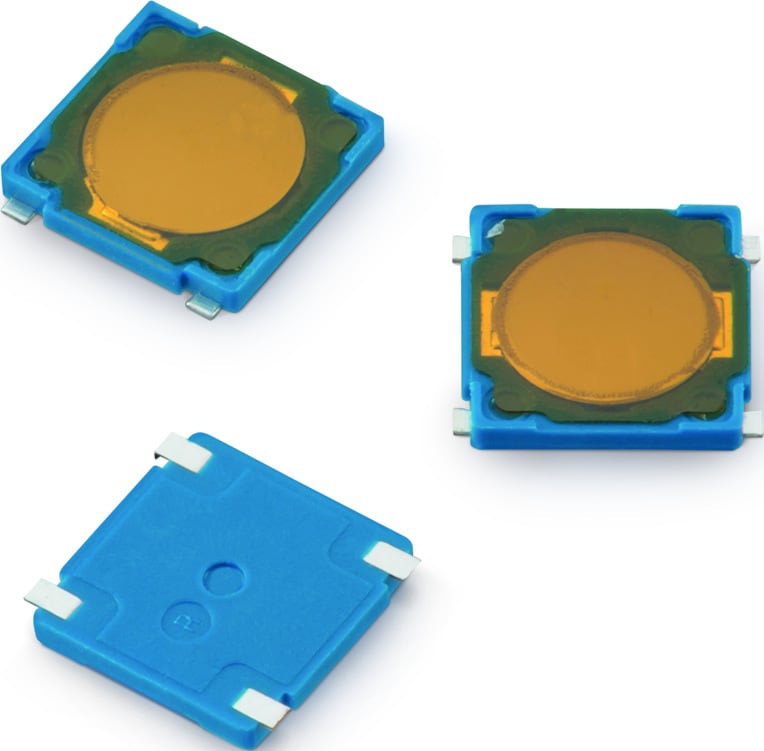

WS-TASV SMT Tact Switch 4.5x4.5 mm with height 0.55mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No
Ingress Protection Code	None

Material Properties
Frame Material	PA9T
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g
Electrical Life	200000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Design Kit	Samples
	430151005826	0.55 mm, 260 g, 200000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS IGS_4301x10058x6 (rev1).igs \| 661.4 KB STP STP_4301x10058x6 (rev1).stp \| 154.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height0.55 mm	Operation Force260 g	Electrical Life200000 Cycles	Design Kit 499001
	430181005816	0.55 mm, 160 g, 1000000 Cycles	Downloads5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB CAD files ZIP IGS IGS_4301x10058x6 (rev1).igs \| 661.4 KB STP STP_4301x10058x6 (rev1).stp \| 154.6 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height0.55 mm	Operation Force160 g	Electrical Life1000000 Cycles	Design Kit 499001
