OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupAssemblyProduct groupSpacersProduct seriesWA-SNSN Miniature Snap-In Spacer Snap Locking on both ends

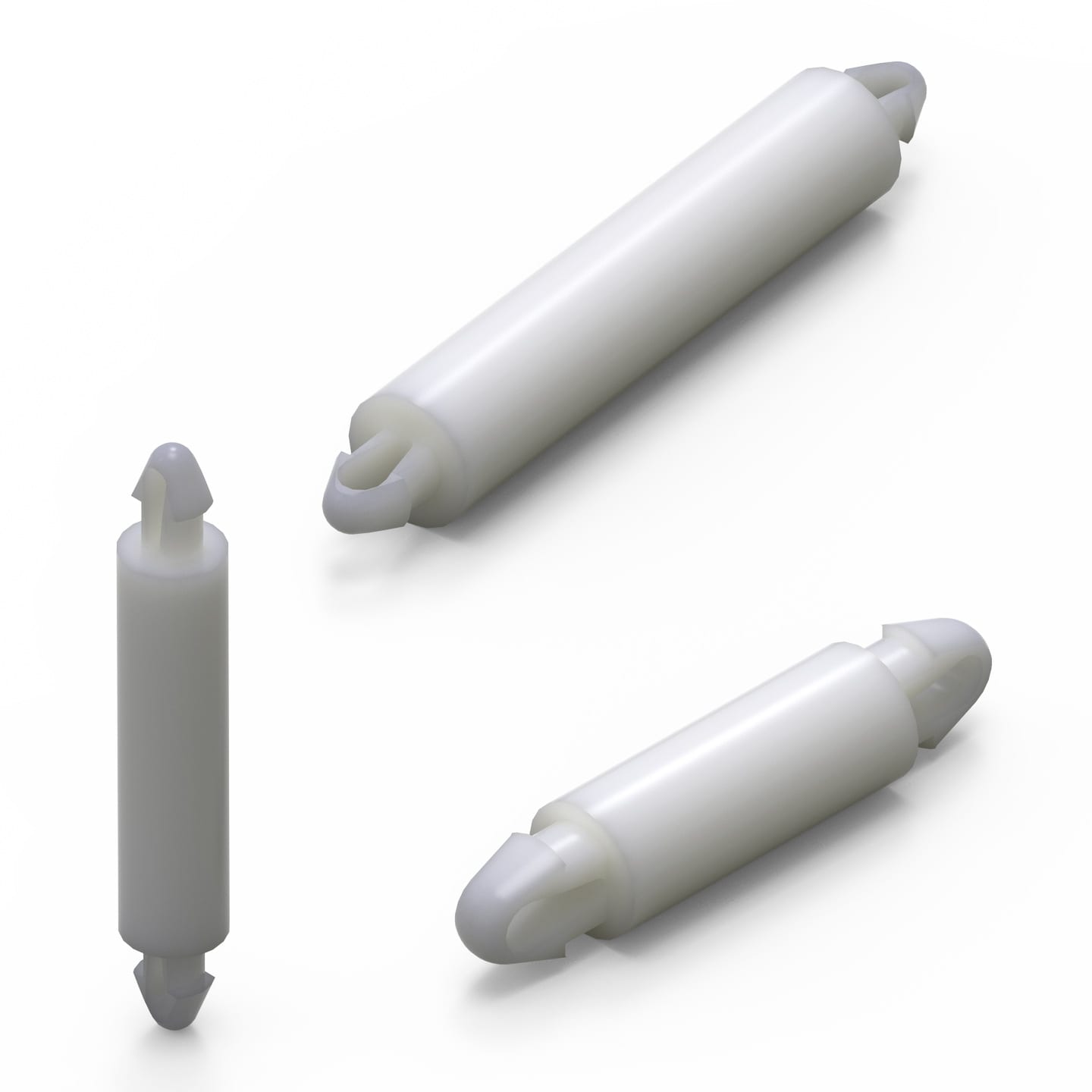

WA-SNSN Miniature Snap-In Spacer Snap Locking on both ends

Applications

  • Snap-in feature on both ends for easy fixation.
General Information
Operating Temperature-30 °C up to +85 °C
MaterialNylon 66
ColorNatural
Flammability RatingUL94 V-2
Storage Conditions (in original packaging)< 40 °C ; < 75 % RH
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsL
(mm)
f
(mm)
Board Samples
709670020SPEC
3 files 2 2.5
709654200SPEC
3 files 2 3.5
709650500SPEC
3 files 2.2 2700990
709650600SPEC
3 files 3 2
709670030SPEC
3 files 3 2.5
709654300SPEC
3 files 3 3.5
709670035SPEC
3 files 3.5 2.5
709651000SPEC
3 files 4 2
709670040SPEC
3 files 4 2.5700990
709655400SPEC
3 files 4 3.5
709651500SPEC
3 files 5 2
709670050SPEC
3 files 5 2.5
709655500SPEC
3 files 5 3.5
709652000SPEC
3 files 6 2700990
709670060SPEC
3 files 6 2.5
709656000SPEC
3 files 6 3.5700990
709652500SPEC
3 files 6.5 2
709670070SPEC
3 files 7 2.5
709657000SPEC
3 files 7 3.5
709653000SPEC
3 files 8 2
709670080SPEC
3 files 8 2.5
709655000SPEC
3 files 8 3.5700990
709670090SPEC
3 files 9 2.5
709670100SPEC
3 files 10 2.5700990
709657100SPEC
3 files 10 3.5
709653500SPEC
2 files 10.5 2
709670110SPEC
3 files 11 2.5
709670120SPEC
3 files 12 2.5
709657120SPEC
3 files 12 3.5
709654000SPEC
3 files 12.5 2700990
709650000SPEC
3 files 14 2
709670140SPEC
3 files 14 2.5
709657140SPEC
3 files 14 3.5
709658000SPEC
3 files 16 3.5
709670160SPEC
3 files 16 2.5
709659000SPEC
3 files 18 3.5700990
709670180SPEC
3 files 18 2.5
709670200SPEC
3 files 20 2.5
709659200SPEC
3 files 20 3.5
709659220SPEC
3 files 22 3.5
709670220SPEC
3 files 22 2.5
Order Code Data­sheet
709670020SPEC
709654200SPEC
709650500SPEC
709650600SPEC
709670030SPEC
709654300SPEC
709670035SPEC
709651000SPEC
709670040SPEC
709655400SPEC
709651500SPEC
709670050SPEC
709655500SPEC
709652000SPEC
709670060SPEC
709656000SPEC
709652500SPEC
709670070SPEC
709657000SPEC
709653000SPEC
709670080SPEC
709655000SPEC
709670090SPEC
709670100SPEC
709657100SPEC
709653500SPEC
709670110SPEC
709670120SPEC
709657120SPEC
709654000SPEC
709650000SPEC
709670140SPEC
709657140SPEC
709658000SPEC
709670160SPEC
709659000SPEC
709670180SPEC
709670200SPEC
709659200SPEC
709659220SPEC
709670220SPEC
Samples
Order Code Data­sheet DownloadsL
(mm)
f
(mm)
Board Samples

Assortments

Articles from this product series can be found in the following assortments:
