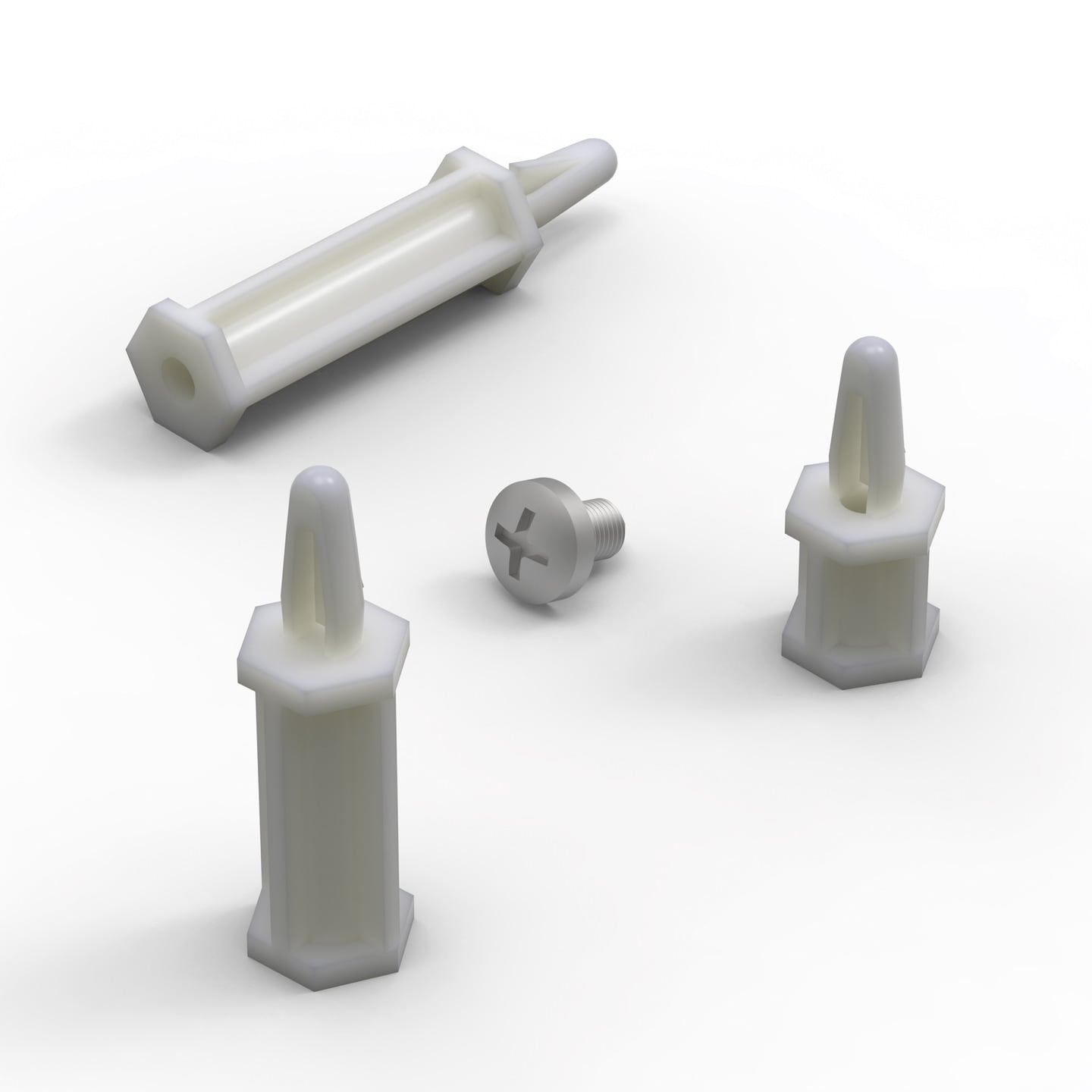

WA-SNSH Snap-In Spacer Screw Mount

Applications

Fix the panel with a self-tapping screw (Order Code 70995ST33) to the spacer.
Snap-in side for a 4 mm bore hole to assemble the mating board.

General Information
Operating Temperature	-30 °C up to +85 °C; -55 °C up to +150 °C
Storage Conditions (in original packaging)	up to 40 °C; < 75 % rH
Material	PA66; Steel
Color	Natural
Flammability Rating	UL94 V-2

Packaging Properties
Packaging	Bag; Carton

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	L(mm)	f(mm)	Board	Design Kit	Samples
	709951000	6.4 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709951000 (rev1).pdf \| 56.3 KB IGS Downloads_IGS_709951000 (rev1).igs \| 396.8 KB STP Downloads_STEP_709951000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length6.4 mm	Drilling in Panel4 mm	Board 700990	Design Kit 700999
	709952000	9.6 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709952000 (rev1).pdf \| 48.6 KB IGS Downloads_IGS_709952000 (rev1).igs \| 409.3 KB STP Downloads_STEP_709952000 (rev1).stp \| 78.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length9.6 mm	Drilling in Panel4 mm	Board –	Design Kit –
	709953000	12.7 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709953000 (rev1).pdf \| 51.3 KB IGS Downloads_IGS_709953000 (rev1).igs \| 397.7 KB STP Downloads_STEP_709953000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length12.7 mm	Drilling in Panel4 mm	Board –	Design Kit –
	709954000	14 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709954000 (rev1).pdf \| 51.3 KB IGS Downloads_IGS_709954000 (rev1).igs \| 396.5 KB STP Downloads_STEP_709954000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length14 mm	Drilling in Panel4 mm	Board 700990	Design Kit 700999
	709955000	16 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709955000 (rev1).pdf \| 48 KB IGS Downloads_IGS_709955000 (rev1).igs \| 395.7 KB STP Downloads_STEP_709955000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length16 mm	Drilling in Panel4 mm	Board –	Design Kit –
	709956000	19.2 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709956000 (rev1).pdf \| 47.3 KB IGS Downloads_IGS_709956000 (rev1).igs \| 397.4 KB STP Downloads_STEP_709956000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length19.2 mm	Drilling in Panel4 mm	Board –	Design Kit –
	709957000	22.4 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709957000 (rev1).pdf \| 47.3 KB IGS Downloads_IGS_709957000 (rev1).igs \| 396.8 KB STP Downloads_STEP_709957000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length22.4 mm	Drilling in Panel4 mm	Board –	Design Kit 700999
	709958000	25.6 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709958000 (rev1).pdf \| 44.3 KB IGS Downloads_IGS_709958000 (rev1).igs \| 397.3 KB STP Downloads_STEP_709958000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length25.6 mm	Drilling in Panel4 mm	Board –	Design Kit –
	709959000	29 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_709959000 (rev1).pdf \| 44.3 KB IGS Downloads_IGS_709959000 (rev1).igs \| 396.6 KB STP Downloads_STEP_709959000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length29 mm	Drilling in Panel4 mm	Board –	Design Kit –
	70995ST33	–, –	Downloads3 files CAD files ZIP 3D 3D_AsSNSH_70995ST33 (rev1).pdf \| 61 KB IGS IGS_AsSNSH_70995ST33 (rev1).igs \| 165.4 KB STP STP_AsSNSH_70995ST33 (rev1).stp \| 36.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	–	–	Board –	Design Kit 700999

Assortments

Articles from this product series can be found in the following assortments:

Board ASSEMBLY Spacer

Design Kit Assembly Technology - Plastic
