WA-SMSSR SMT Steel Spacer fixed w. snap rivet

Applications

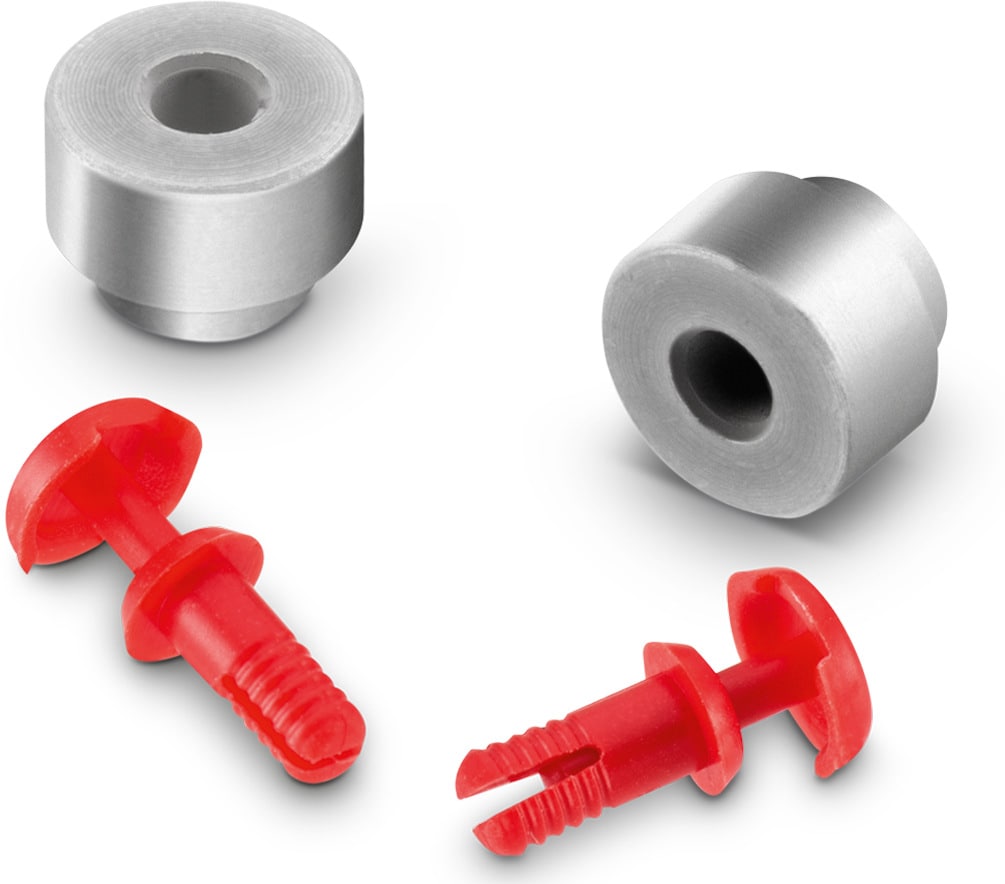

SMT Spacer with Snap Rivet for quick and easy mounting of PCBs without tools
Screwless connections for fast mounting
For distances from 2 to 10 mm
Only qualified with Snap Rivet 7009776

General Information
Operating Temperature	-30 °C up to +85 °C; -55 °C up to +150 °C
Material	PA66; Steel
Color	Red
Surface	Tin
Flammability Rating	UL94 V-0

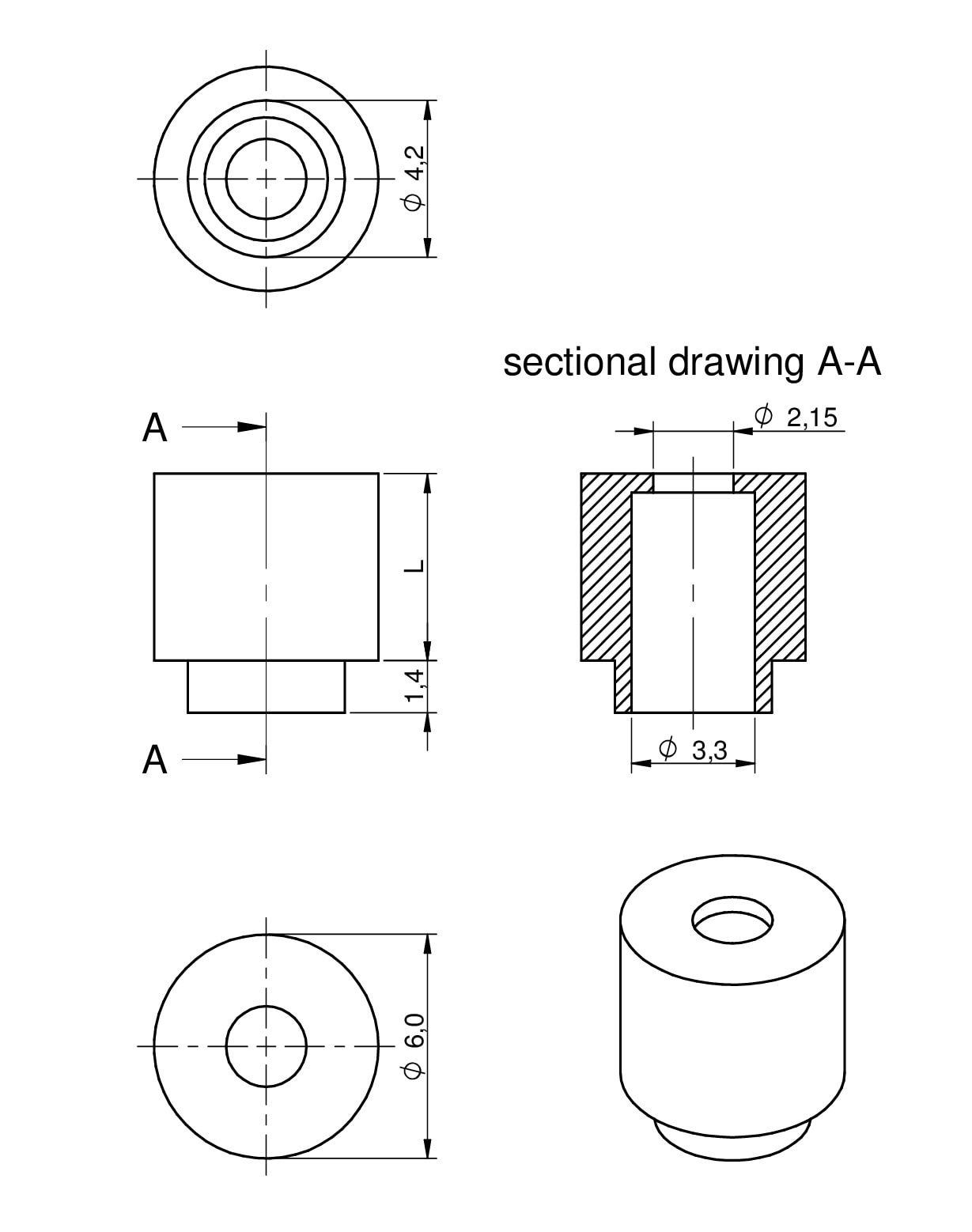

Ø f	2.15 mm; 2.5 mm

Products

Order Code	Datasheet	Downloads	Status	L (mm)	Ø f (mm)	Ø ID (mm)	Ø OD (mm)	Color	Packaging	Qty.	Design Kit
9776020960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	5 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP IGS Downloads_IGS_9776020960R (rev1).igs \| 65.2 KB STP Downloads_STEP_9776020960R (rev1).stp \| 15.1 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.15	4.2	6	–	Tape and Reel	1050	–
9776025960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776025960R (rev1).pdf \| 36.7 KB IGS Downloads_IGS_9776025960R (rev1).igs \| 65.7 KB STP Downloads_STEP_9776025960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	2.15	4.2	6	–	Tape and Reel	950	–
9776030960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776030960R (rev1).pdf \| 36.3 KB IGS Downloads_IGS_9776030960R (rev1).igs \| 65.7 KB STP Downloads_STEP_9776030960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.15	4.2	6	–	Tape and Reel	800	–
9776040960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776040960R (rev1).pdf \| 35.7 KB IGS Downloads_IGS_9776040960R (rev1).igs \| 65.5 KB STP Downloads_STEP_9776040960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.15	4.2	6	–	Tape and Reel	650	–
9776050960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776050960R (rev1).pdf \| 34.9 KB IGS Downloads_IGS_9776050960R (rev1).igs \| 65.4 KB STP Downloads_STEP_9776050960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	2.15	4.2	6	–	Tape and Reel	650	–
9776060960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776060960R (rev1).pdf \| 34.3 KB IGS Downloads_IGS_9776060960R (rev1).igs \| 65.5 KB STP Downloads_STEP_9776060960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.15	4.2	6	–	Tape and Reel	450	–
9776070960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776070960R (rev1).pdf \| 33.7 KB IGS Downloads_IGS_9776070960R (rev1).igs \| 65.5 KB STP Downloads_STEP_9776070960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	2.15	4.2	6	–	Tape and Reel	450	–
7009776	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 7009776_3D (rev1).pdf \| 325.5 KB IGS 7009776 (rev1).igs \| 891.1 KB STP 7009776 (rev1).stp \| 218.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.95	2.5	2.1	4	Red	Bulk	1000	700970 977990
9776080960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776080960R (rev1).pdf \| 32.9 KB IGS Downloads_IGS_9776080960R (rev1).igs \| 65.5 KB STP Downloads_STEP_9776080960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.15	4.2	6	–	Tape and Reel	450	–
9776090960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776090960R (rev1).pdf \| 32.5 KB IGS Downloads_IGS_9776090960R (rev1).igs \| 65.5 KB STP Downloads_STEP_9776090960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	2.15	4.2	6	–	Tape and Reel	300	–
9776100960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WA-SMSSR (rev22a).IntLib \| 102.5 KB CDS CADENCE_WA-SMSSR (rev19a).zip \| 591.2 KB EAG Eagle_WA-SMSSR (rev21b).lbr \| 133.9 KB CAD files ZIP 3D 3D_9776100960R (rev1).pdf \| 31.9 KB IGS Downloads_IGS_9776100960R (rev1).igs \| 65 KB STP Downloads_IGS_9776100960R (rev1).stp \| 15.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.15	4.2	6	–	Tape and Reel	300	–

Order Code	Datasheet
9776020960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776025960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776030960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776040960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776050960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776060960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776070960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
7009776	SPEC
9776080960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776090960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document
9776100960R	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/09/2025 SPEC Datasheet valid from 18/09/2025 PCN PCN document

Samples

Order Code	Datasheet	Downloads	Status	L (mm)	Ø f (mm)	Ø ID (mm)	Ø OD (mm)	Color	Packaging	Qty.	Design Kit	Samples

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.
