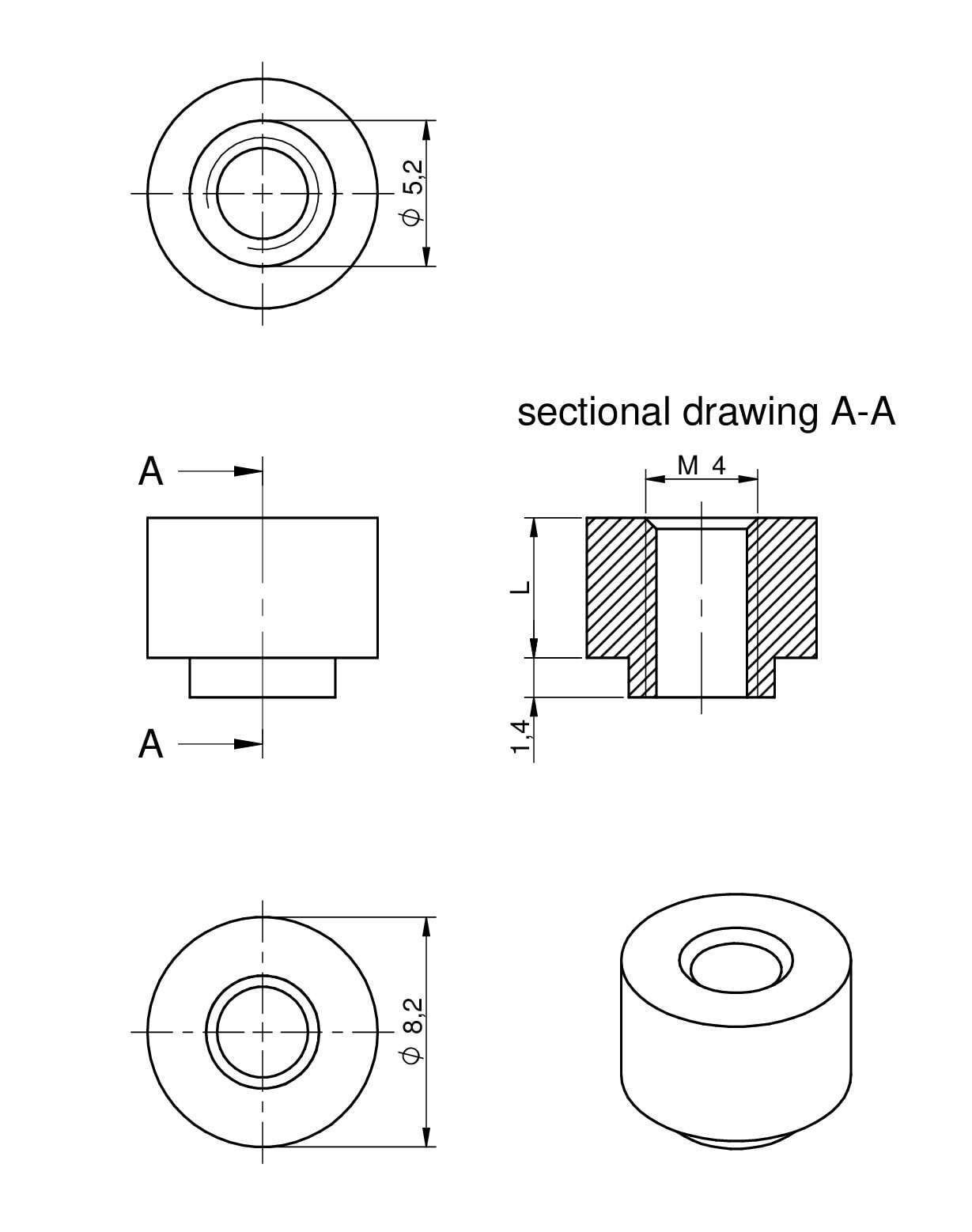

WA-SMSI Steel Spacer with internal Thread M4

Applications

Assembling of PCBs to housing and to other PCBs
For distances from 1 to 10 mm
Fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
T_i	M4
Solder Cream Thickness	150 µm
Tightening Torque	1.2 N*m

Products

Order Code	Datasheet	Downloads	Status	L (mm)	T_i	Ø ID (mm)	Ø OD (mm)	Packaging	Qty.
9774010482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774010482 (rev1).pdf \| 37.1 KB IGS Download_IGS_9774010482 (rev1).igs \| 59.5 KB STP Download_STP_9774010482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	M4	5.2	8.2	Tape and Reel	1500
9774020482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774020482 (rev1).pdf \| 36.9 KB IGS Download_IGS_9774020482 (rev1).igs \| 59.5 KB STP Download_STP_9774020482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	M4	5.2	8.2	Tape and Reel	1100
9774030482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774030482 (rev1).pdf \| 36.3 KB IGS Download_IGS_9774030482 (rev1).igs \| 59.5 KB STP Download_STP_9774030482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	M4	5.2	8.2	Tape and Reel	900
9774040482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774040482 (rev1).pdf \| 36.3 KB IGS Download_IGS_9774040482 (rev1).igs \| 59.5 KB STP Download_STP_9774040482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	M4	5.2	8.2	Tape and Reel	700
9774050482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774050482 (rev1).pdf \| 35.4 KB IGS Download_IGS_9774050482 (rev1).igs \| 59.5 KB STP Download_STP_9774050482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	M4	5.2	8.2	Tape and Reel	600
9774060482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774060482 (rev1).pdf \| 35 KB IGS Download_IGS_9774060482 (rev1).igs \| 59.5 KB STP Download_STP_9774060482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	M4	5.2	8.2	Tape and Reel	500
9774070482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774070482 (rev1).pdf \| 34.3 KB IGS Download_IGS_9774070482 (rev1).igs \| 59.5 KB STP Download_STP_9774070482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	M4	5.2	8.2	Tape and Reel	450
9774080482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774080482 (rev1).pdf \| 33.8 KB IGS Download_IGS_9774080482 (rev1).igs \| 59.5 KB STP Download_STP_9774080482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	M4	5.2	8.2	Tape and Reel	400
9774090482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774090482 (rev1).pdf \| 33.7 KB IGS Download_IGS_9774090482 (rev1).igs \| 59.2 KB STP Download_STP_9774090482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	M4	5.2	8.2	Tape and Reel	350
9774100482R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSI (rev22a).IntLib \| 400.5 KB CDS Cadence_WA-SMSI (rev21a).zip \| 3.2 MB EAG Eagle_WA-SMSI (rev21a).lbr \| 956.6 KB CAD files ZIP 3D 3D_9774100482 (rev1).pdf \| 33.2 KB IGS Download_IGS_9774100482 (rev1).igs \| 58.9 KB STP Download_STP_9774100482 (rev1).stp \| 13.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	M4	5.2	8.2	Tape and Reel	300

Order Code	Datasheet
9774010482R	SPEC
9774020482R	SPEC
9774030482R	SPEC
9774040482R	SPEC
9774050482R	SPEC
9774060482R	SPEC
9774070482R	SPEC
9774080482R	SPEC
9774090482R	SPEC
9774100482R	SPEC

Samples

Order Code	Datasheet	Downloads	Status	L (mm)	T_i	Ø ID (mm)	Ø OD (mm)	Packaging	Qty.	Samples

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.

Fast and precise process
Instant removable kapton foil
Strong holding forces and torques
Highest process reliability
