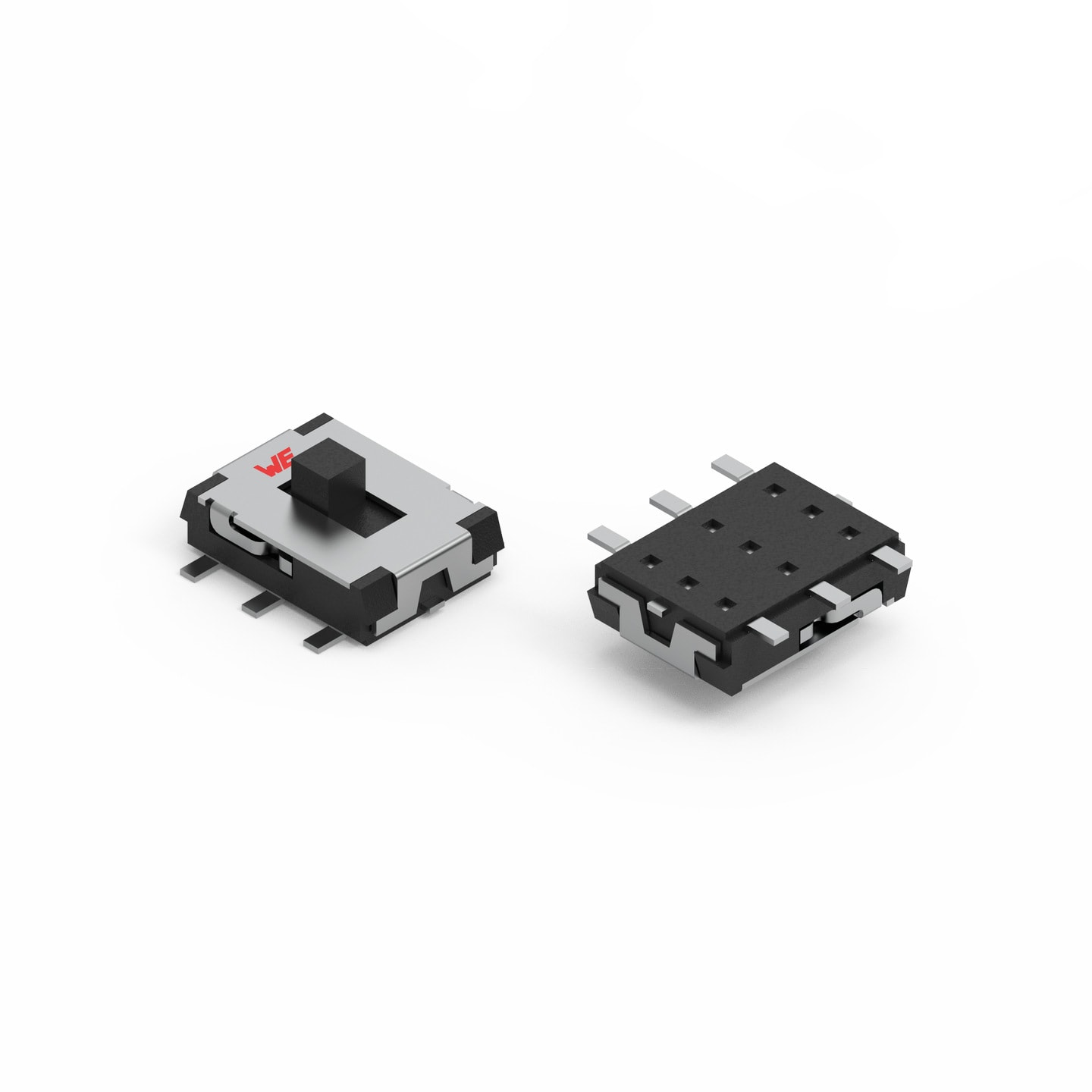

WS-SLSV SMT Mini Slide Switch, Same Side Connection 7.65 x 5.5 mm | Electromechanical Components | Würth Elektronik Product Catalog

WS-SLSV SMT Mini Slide Switch, Same Side Connection 7.65 x 5.5 mm. Electrical Life 20000 steps. Withstanding Voltage 500 V (AC).

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Frame Material	PA6T
Frame Flammability Rating	UL94 V-0
Frame Color	Black
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Actuator Color	Black
Contact Material	Copper Alloy
Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	300 mA
V_R	6 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Electrical Life	20000 Steps
Connection Type	Same Side Connection

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Operation Force(g)	Schematic	Packaging	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	452403012014	SPEC350 g, DPDT, Tape and Reel	Availability –	Downloads7 files ALT Altium_WS-SLSV (rev24b).IntLib \| 199.5 KB CDS Cadence_WS-SLSV (rev24b).zip \| 1010.3 KB EAG Eagle_WS-SLSV (rev24b).lbr \| 27.4 KB KIC KiCad_WS-SLSV (rev26b).zip \| 215.7 KB 3D 3D_452403012014 (rev1).pdf \| 51.8 KB IGS Download_IGS_452403012014 (rev1).igs \| 1.6 MB STP Download_STP_452403012014 (rev1).stp \| 453.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Operation Force350 g	SchematicDPDT	PackagingTape and Reel	Design Kit 499001	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
