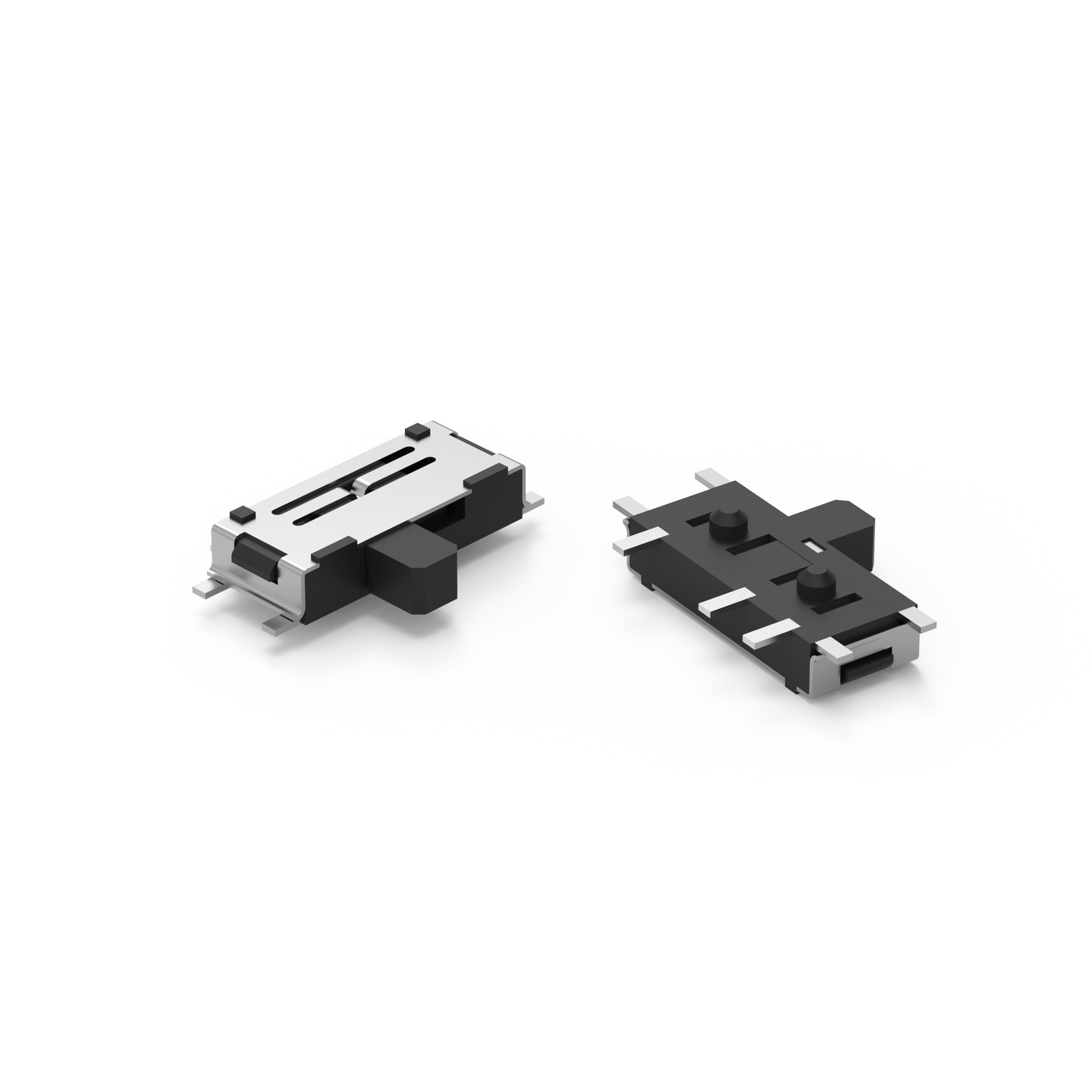

WS-SLSU Mini Slide Switch, Same Side Connection Side Push 6.7x2.7 mm. Electrical Life 10000 steps. Withstanding Voltage 250 V (AC).

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Frame Color	Black
Actuator Material	PA46
Actuator Flammability Rating	UL94 HB
Actuator Color	Black
Contact Material	Copper Alloy
Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	300 mA
V_R	5 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	10000 Steps
Connection Type	Same Side Connection

Products

	Order Code	Datasheet	Downloads	Status	Operation Force (g)	Schematic	Packaging	Design Kit	Samples
	450404015514	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-SLSU (rev22a).IntLib \| 249 KB CDS Cadence_WS-SLSU (rev20a).zip \| 941.9 KB EAG Eagle_WS-SLSU (rev20b).lbr \| 19.4 KB CAD files ZIP 3D 3D_450404015514 (rev1).pdf \| 70.8 KB IGS Download_IGS_450404015514 (rev1).igs \| 875.1 KB STP Download_STP_450404015514 (rev1).stp \| 760.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	240	SPDT	Tape and Reel	499001

	Order Code	Datasheet
	450404015514	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Operation Force (g)	Schematic	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
