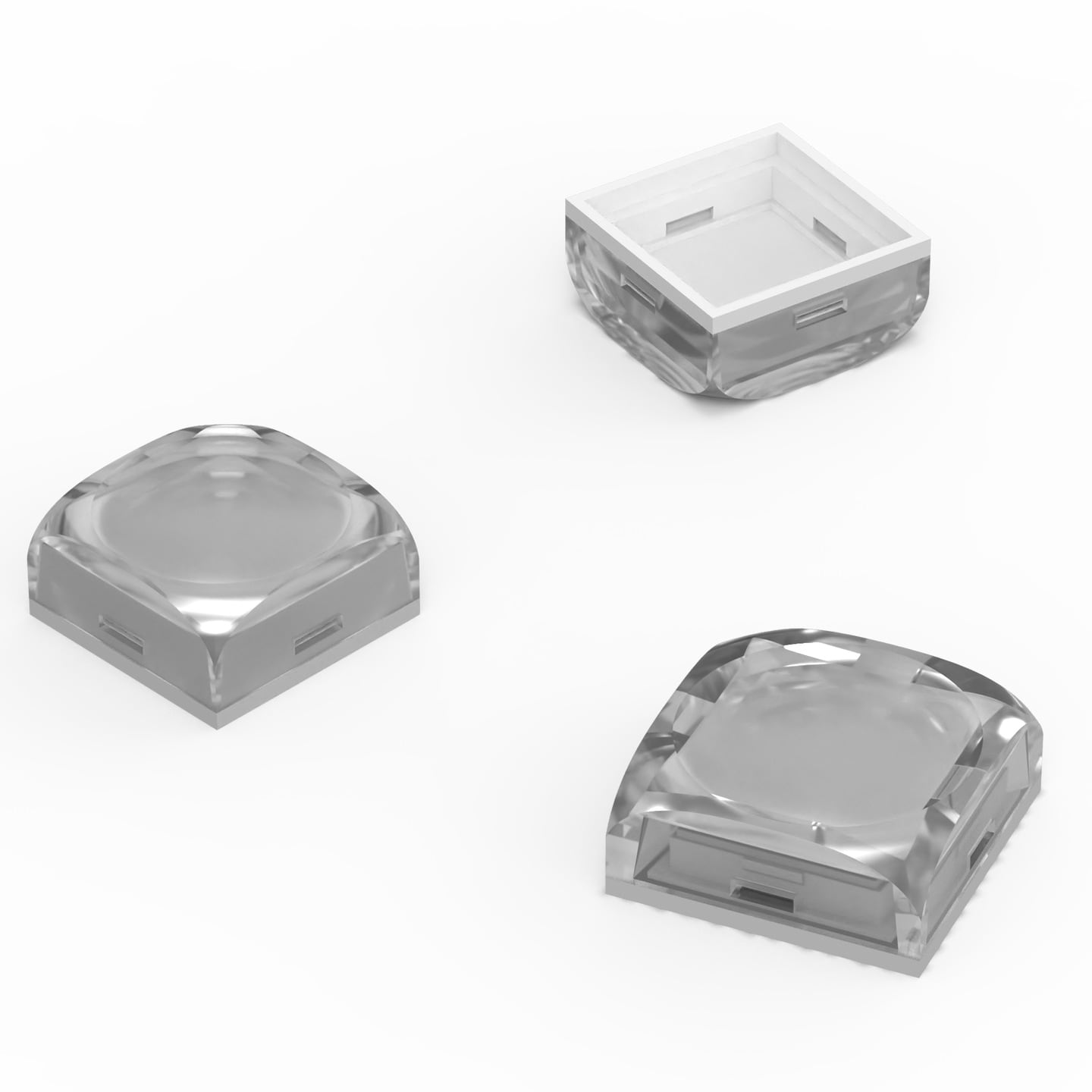

WS-PBTL Caps for THT Illuminated Push Button Switch 15 x 15 mm & 17.4 x 17.4 mm

Material Properties
Base Color	Transparent
Diffuser Plate Flammability Rating	UL94 HB

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tray

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Base Color	Samples
	714659001100	Transparent	Downloads2 files CAD files ZIP IGS 714659001100 (rev1).igs \| 535.7 KB STP 714659001100 (rev1).stp \| 193.6 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Base ColorTransparent
	714659001210	Transparent	Downloads2 files CAD files ZIP IGS Download_IGS_714659001210 (rev1).igs \| 550.1 KB STP Download_STP_714659001210 (rev1).stp \| 198.1 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Base ColorTransparent

Suitable for

WS-PBTL THT Illuminated Push Button Switch 15 x 15 mm

WS-PBTL THT RGB Illuminated Push Button Switch 15 x 15 mm
