Ophelia-I & EV-Kits

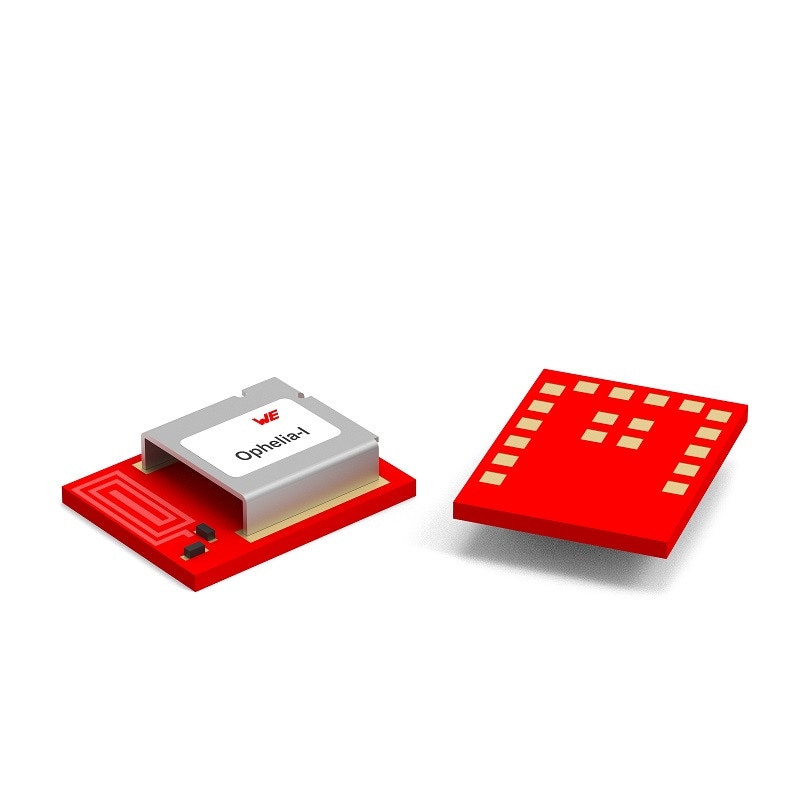

Radio Module 2.4 GHz without firmware

Ophelia-I & EV-Kits

Characteristics

  • No firmware preflashed: Bluetooth Low Energy and Proprietary protocols supported
  • The AppNote ANR030 provides further helpful information on firmware development
  • Based on Nordic Seminconductor SoC nRF52805
  • 64 MHz Arm Cortex-M4 processor

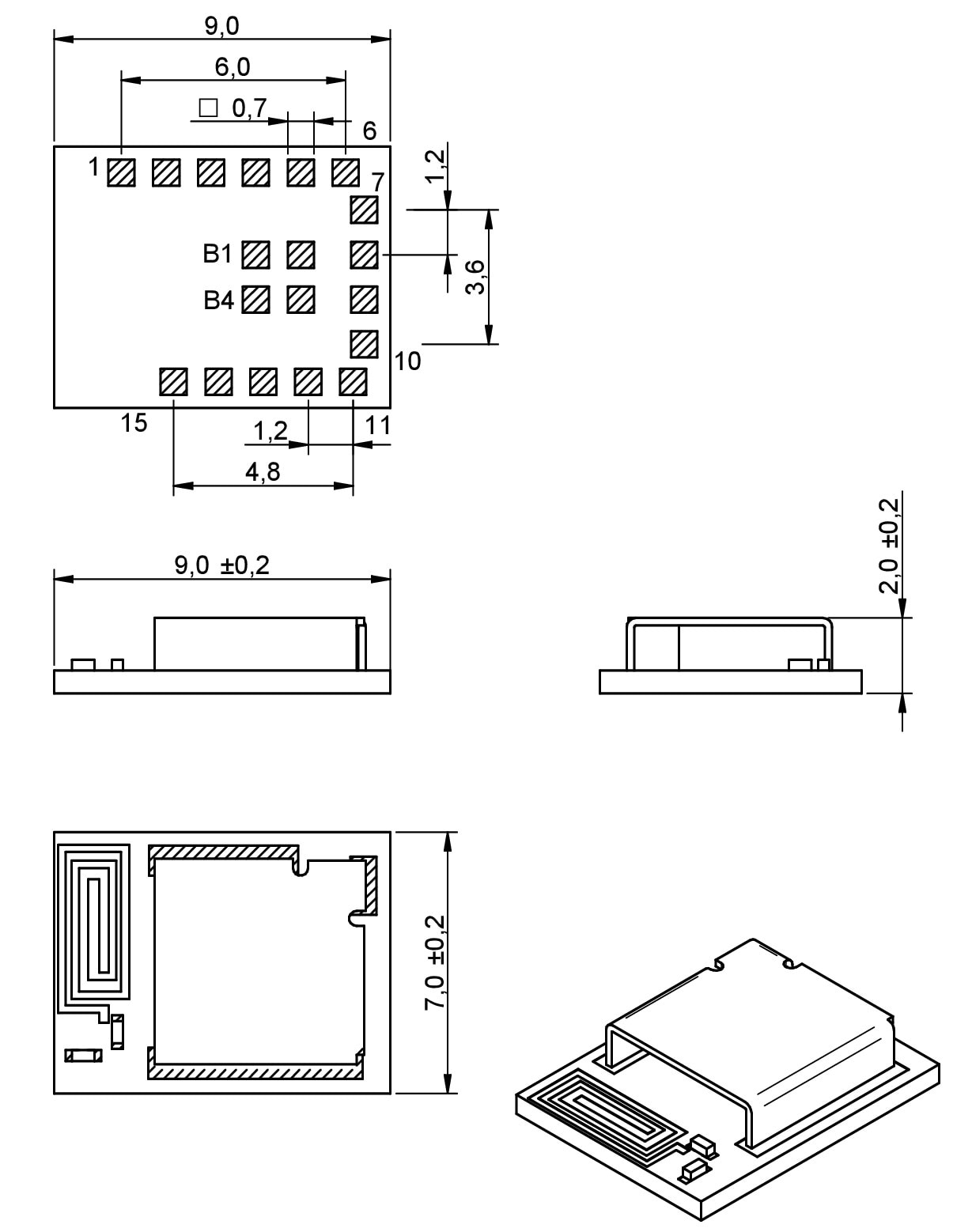

  • Miniaturized design: 7 x 9 x 2 mm
  • Smart antenna configuration (2-in-1 module)
  • UART, SPI, I2C, ADC interfaces
  • 192 kB flash memory, 24 kB RAM
  • Up to 4 dBm output power
  • 0.3 µA sleep current (system off mode)
  • 10 configurable GPIOs
  • High throughput mode
  • Same hardware platform available as Bluetooth 5.1 module [Proteus-e]()

Application Notes

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

All
Ophelia-I
EV-Kits
Reset all
Filter article data
Filter by
Delete all
 show  article in 2 product lines
 article in 2 product lines
Reset all
Order Code
Data­sheet
Man­ual
Downloads
Status
Description
Frequency Range(MHz)
dLoS(m)
PTx, e.r.p.(dBm)
Rxsens, e.r.p.(dBm)
PTx, 50 Ω(dBm)
Rxsens, 50 Ω(dBm)
VDD min.(V)
VDD max.(V)
Rb max.(kbps)
ANTConn
Radio Module
Evaluation Kit
Samples
2612019022001
EV-Kit Ophelia-I, –, ––
Man­ual
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionEV-Kit Ophelia-I
–
–
–
–
–
–
–
–
–
–
Radio Module
2612011022000
Evaluation Kit –
2612011022000
SPEC
Man­ual
Downloads4 files

EDA models: Components ZIP

CAD files ZIP

Download all 4 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionOphelia-I
Frequency Range 2360 - 2500
Line of Sight Range350 m
Output Power e.r.p.-4 dBm
RX sensitivity e.r.p.-85 dBm
Output Power 50 Ohm4 dBm
RX Sensitivity 50 Ohm-93 dBm
Operating Supply Voltage Min.1.8 V
Operating Supply Voltage Max.3.6 V
RF Bitrate max.2000 kbps
Antenna Connector TypeRF connector pad for external antenna and internal PCB antenna
Radio Module –
Evaluation Kit
2612019022001

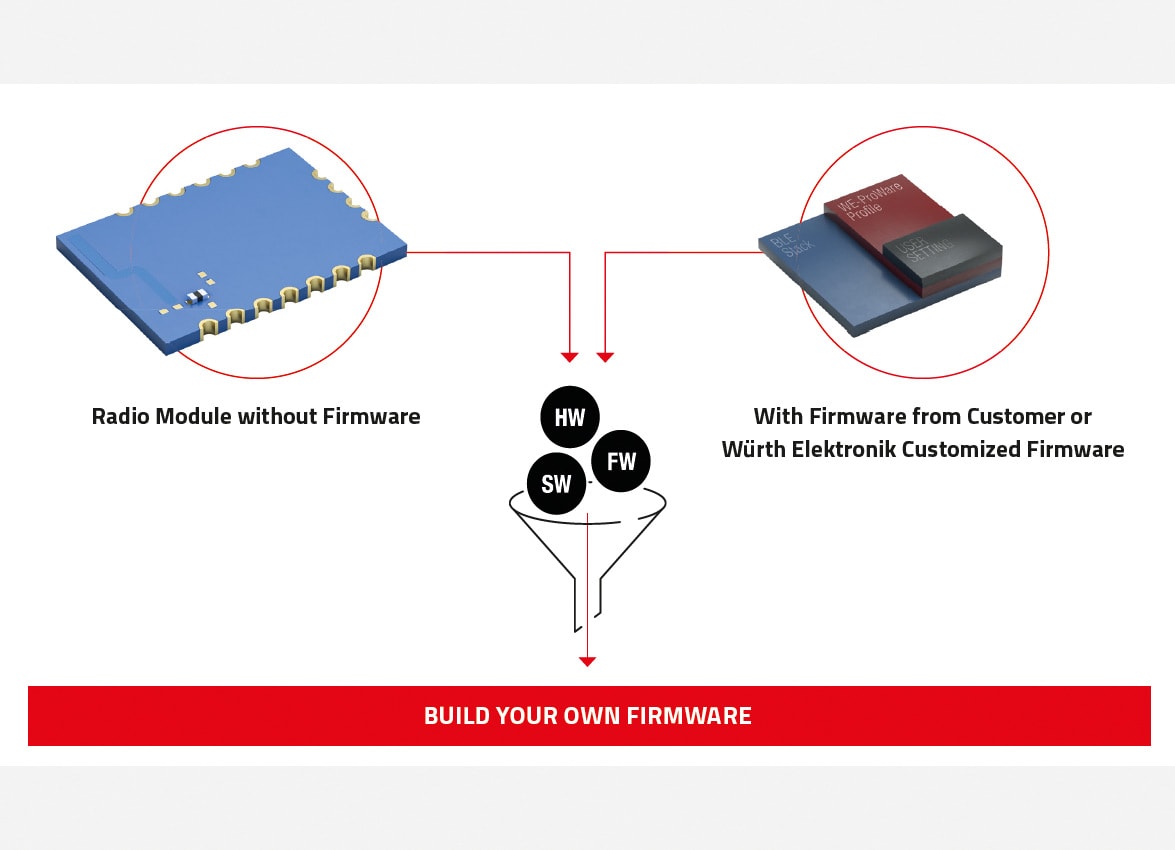

Build Your Own Firmware

A custom firmware:

  • Can be developed using the SDK's and resources are provided by the SoC manufacturer. In case of Ophelia-I and Proteus it's either the nRF5 SDK or nRF connect SDK by Nordic Semiconductors.
  • Defines the functional characteristics and specifications of the radio module
  • Can be optimized to the specific application, such as allowing hostless operation

Compared to that Proteus-e, Ophelia's twin, is based on the same hardware but coming with a Bluetooth® 5.1 firmware. Proteus preinstalled firmware comes with some advantages regarding the reduction in development effort and risc for the customer. Considering the task to add a radio communication to the application, the resources required for firmware development or for module's certification are neglegtable. And thanks to the Wireless Connectivity SDK using the API of any wireless module from Würth Elektronik with your host IC is an easy task for developers.

If you have your custom firmware ready for either of our module hardware platforms, we can take care of the flashing and produce your custom module in the quantity you need.

How to develop a Firmware on Ophelia-I

Installation<br>Use the nRF Connect Tool for installation
Installation
Use the nRF Connect Tool for installation
Creation<br>Copy one of the various sample applications as a starting point for an own firmware
Creation
Copy one of the various sample applications as a starting point for an own firmware
Building<br>Create your own application
Building
Create your own application
Flashing<br>Flash and rund the firmware on the hardware. Keep the Würth Elektronik "Custom Service" in mind
Flashing
Flash and rund the firmware on the hardware. Keep the Würth Elektronik "Custom Service" in mind
Debugging<br>Debugging the firmware on the hardware
Debugging
Debugging the firmware on the hardware
