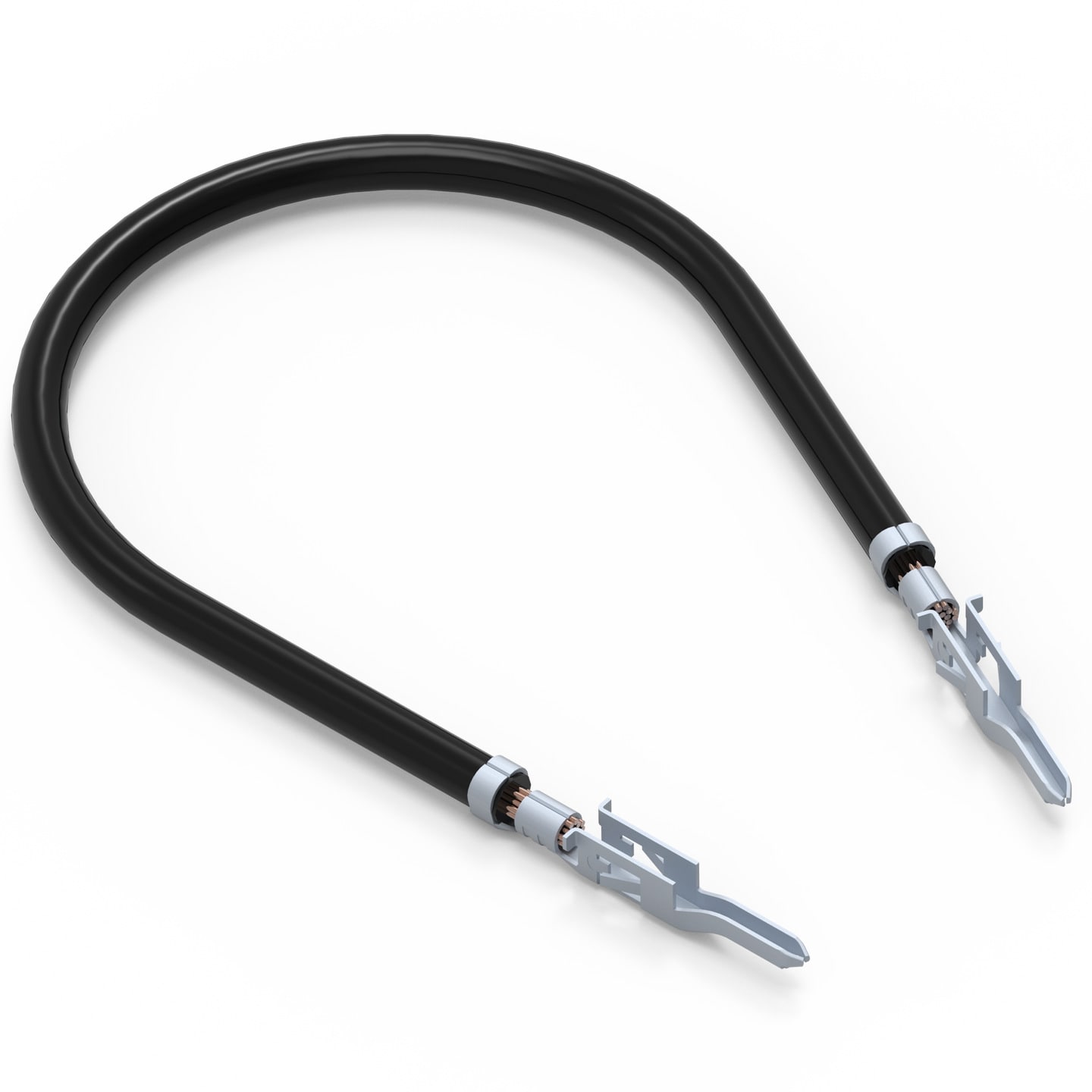

WR-MPC4 Male Pre-crimped wire

Material Properties
Color	Black

Wire Properties
Stranded Wire Section (AWG)	16 (AWG); 18 (AWG); 22 (AWG); 26 (AWG)
Stranded Wire Section (Metric)	0.129 (mm²); 0.326 (mm²); 0.823 (mm²); 1.31 (mm²)
Packaging	Bag

General Information
Operating Temperature	-20 °C up to +80 °C
Compliance	RoHS
Gender	Male

Products

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	L (mm)	PCB/Cable/Panel	Type	Packaging	Samples
649049022030	SPEC	3 files CAD files ZIP 3D 649049022030_3D (rev1).pdf \| 434.9 KB IGS 649049022030 (rev1).igs \| 3.8 MB STP 649049022030 (rev1).stp \| 983.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	22 (AWG)	0.326 (mm²)	300	Cable	Pre-crimped Cable	Bag
649849816030	SPEC	3 files CAD files ZIP 3D 649849816030_3D (rev1).pdf \| 447.8 KB IGS 649849816030 (rev1).igs \| 4 MB STP 649849816030 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	16 (AWG)	1.31 (mm²)	300	Cable	Pre-crimped Cable	Bag
649949918030	SPEC	3 files CAD files ZIP 3D 649949918030_3D (rev1).pdf \| 426.3 KB IGS 649949918030 (rev1).igs \| 3.8 MB STP 649949918030 (rev1).stp \| 1021.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	18 (AWG)	0.823 (mm²)	300	Cable	Pre-crimped Cable	Bag
649800116015	SPEC	3 files CAD files ZIP 3D 649800116015_3D (rev1).pdf \| 235 KB IGS 649800116015 (rev1).igs \| 2 MB STP 649800116015 (rev1).stp \| 527.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	16 (AWG)	1.31 (mm²)	150	Cable	Pre-crimped Cable	Bag
649000126015	SPEC	3 files CAD files ZIP 3D 649000126015_3D (rev1).pdf \| 229.7 KB IGS 649000126015 (rev1).igs \| 1.9 MB STP 649000126015 (rev1).stp \| 482.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	26 (AWG)	0.129 (mm²)	150	Cable	Pre-crimped Cable	Bag

Order Code	Datasheet
649049022030	SPEC
649849816030	SPEC
649949918030	SPEC
649800116015	SPEC
649000126015	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	L (mm)	PCB/Cable/Panel	Type	Packaging	Samples

Suitable for

WR-MPC4 4.20 mm Male Dual Row Plug w. Panel Mounting Ears

WR-MPC4 4.20 mm Male Single Row Plug w. Panel Mounting Ears
