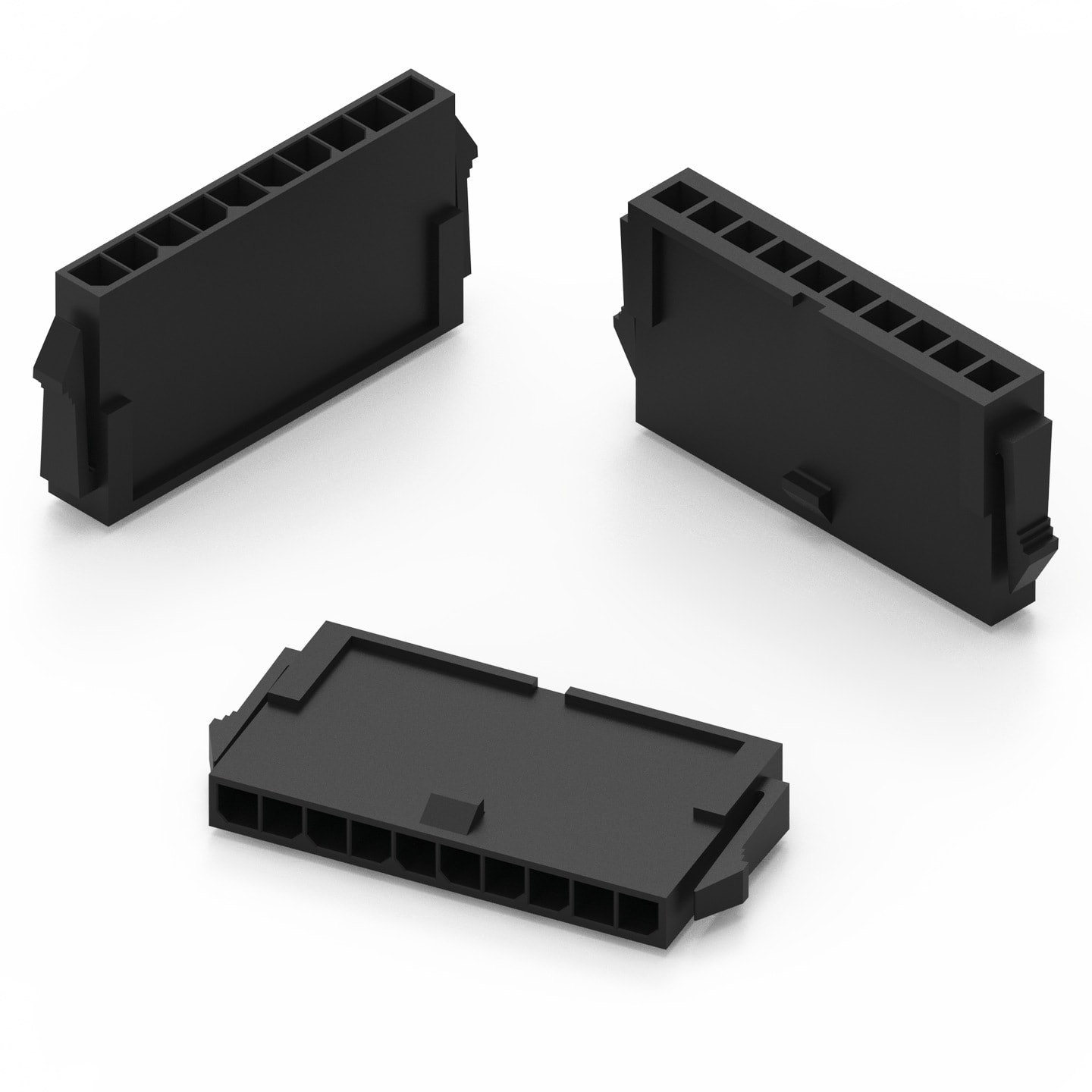

WR-MPC3 3.00 mm Male Plug Housing Single Row with Panel Mounting Ears

General Informations
Pitch	3 mm
Rows	Single
Type	Plug Housing
Operating Temperature	-25 °C up to +105 °C

Electrical Properties
Withstanding Voltage	1500 V (AC)

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Material Properties
Insulator Material	PA66
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0

Products

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Packaging	Design Kit	Samples
66200211822	SPEC	3 files CAD files ZIP 3D 66200211822 (rev1).pdf \| 54 KB IGS 66200211822 (rev1).iges \| 872.3 KB STP 66200211822 (rev1).stp \| 193.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3	Male	Plug Housing	Single	Bag	662001
66200311822	SPEC	3 files CAD files ZIP 3D 66200311822 (rev1).pdf \| 67 KB IGS 66200311822 (rev1).iges \| 1.1 MB STP 66200311822 (rev1).stp \| 254.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	3	Male	Plug Housing	Single	Bag	662001
66200411822	SPEC	3 files CAD files ZIP 3D 66200411822 (rev1).pdf \| 79.9 KB IGS 66200411822 (rev1).iges \| 1.4 MB STP 66200411822 (rev1).stp \| 316.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3	Male	Plug Housing	Single	Bag	662001
66200511822	SPEC	3 files CAD files ZIP 3D 66200511822 (rev1).pdf \| 93.5 KB IGS 66200511822 (rev1).iges \| 1.6 MB STP 66200511822 (rev1).stp \| 372.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	3	Male	Plug Housing	Single	Bag	662001
66200611822	SPEC	3 files CAD files ZIP 3D 66200611822 (rev1).pdf \| 109.7 KB IGS 66200611822 (rev1).iges \| 1.9 MB STP 66200611822 (rev1).stp \| 436.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	3	Male	Plug Housing	Single	Bag	662001
66200711822	SPEC	3 files CAD files ZIP 3D 66200711822 (rev1).pdf \| 123.7 KB IGS 66200711822 (rev1).iges \| 2.1 MB STP 66200711822 (rev1).stp \| 499.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	3	Male	Plug Housing	Single	Bag	662001
66200811822	SPEC	3 files CAD files ZIP 3D 66200811822 (rev1).pdf \| 136.6 KB IGS 66200811822 (rev1).iges \| 2.4 MB STP 66200811822 (rev1).stp \| 557.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	3	Male	Plug Housing	Single	Bag	662001
66200911822	SPEC	3 files CAD files ZIP 3D 66200911822 (rev1).pdf \| 151.3 KB IGS 66200911822 (rev1).iges \| 2.7 MB STP 66200911822 (rev1).stp \| 630.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	3	Male	Plug Housing	Single	Bag	662001
66201011822	SPEC	3 files CAD files ZIP 3D 66201011822 (rev1).pdf \| 164 KB IGS 66201011822 (rev1).iges \| 2.9 MB STP 66201011822 (rev1).stp \| 698 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3	Male	Plug Housing	Single	Bag	662001
66201111822	SPEC	3 files CAD files ZIP 3D 66201111822 (rev1).pdf \| 178.8 KB IGS 66201111822 (rev1).iges \| 3.2 MB STP 66201111822 (rev1).stp \| 755.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	3	Male	Plug Housing	Single	Bag	662001
66201211822	SPEC	3 files CAD files ZIP 3D 66201211822 (rev1).pdf \| 191.2 KB IGS 66201211822 (rev1).iges \| 3.4 MB STP 66201211822 (rev1).stp \| 816.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	3	Male	Plug Housing	Single	Bag	662001

Order Code	Datasheet
66200211822	SPEC
66200311822	SPEC
66200411822	SPEC
66200511822	SPEC
66200611822	SPEC
66200711822	SPEC
66200811822	SPEC
66200911822	SPEC
66201011822	SPEC
66201111822	SPEC
66201211822	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Packaging	Design Kit	Samples

Use with

WR-MPC3 Male Pre-crimped wire

WR-MPC3 3.00 mm Male Crimp Terminal - Tin

Tools

WR-MPC3 3.00 mm Manual Crimping Tool

WR-MPC3 3.00 mm Manual Extraction Tool

WR-MPC3 3.00 mm Manual Insulation Stripper

WR-MPC3 3.00 mm Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
