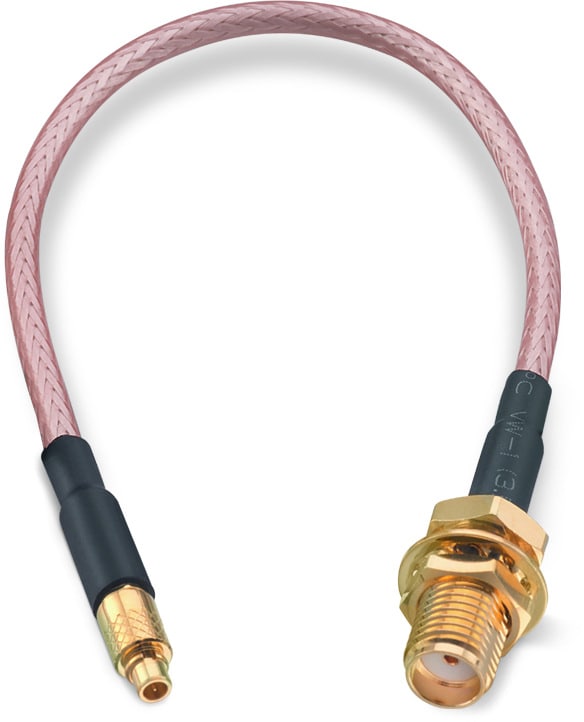

WR-CXASY SMA Jack Straight to MMCX Plug Straight / RG-316/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Jack Straight to MMCX Plug Straight / RG-316/U Flexible Cable / 152.4 mm length
Material Properties
CableRG-316/U
General Information
Operating Temperature-55 °C up to +155 °C
Cable TypeFlexible
Cable ShieldingBraid
Connector Type 1SMA
Connector Type 2MMCX
Gender 1Jack
Gender 2Plug
Orientation Type 1Straight
Orientation Type 2Straight
Mechanical Properties
Min. Bend Radius12.7 mm
