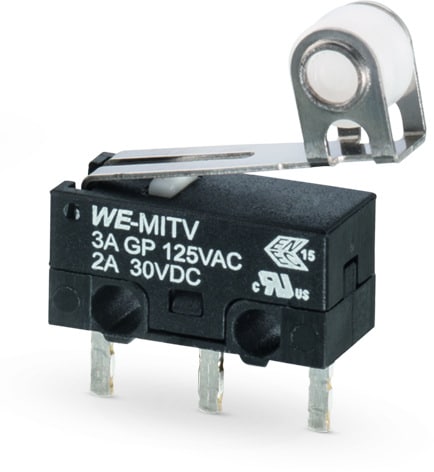

WS-MITV THT Terminal with Roller Lever Micro Switch, 12.8 x 5.8 mm

WS-MITV THT Terminal with Roller Lever Micro Switch, 12.8 x 5.8 mm
Material Properties
Actuator MaterialPBT
Actuator Flammability RatingUL94 V-0
Frame MaterialPBT
Frame Flammability RatingUL94 V-0
Moveable Contact MaterialSilver
Stationary Contact MaterialSilver
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Electrical Properties
Contact Resistance Initial30 mΩ
Contact Resistance After Life Test1 Ω
RISO100 MΩ
Mechanical Properties
Electrical Life10000 Cycles
SchematicSPDT
Over travel0.55 mm
Movement Differential0.5 mm
General Information
Operating Temperature-40 °C up to +85 °C
Packaging Properties
PackagingTray
Certification
UL ApprovalE483308
ENEC 15 ApprovalENEC-03305

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Operation Force(g)
Operating Position(mm)
Design Kit
SamplesAvailability & Sample
WS-MITV THT Terminal with Roller Lever Micro Switch, 12.8 x 5.8 mm
463093370402
SPEC80 g, 13 mm
Availability
–
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Operation Force80 g
Operating Position13 mm
Design Kit
499001
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
