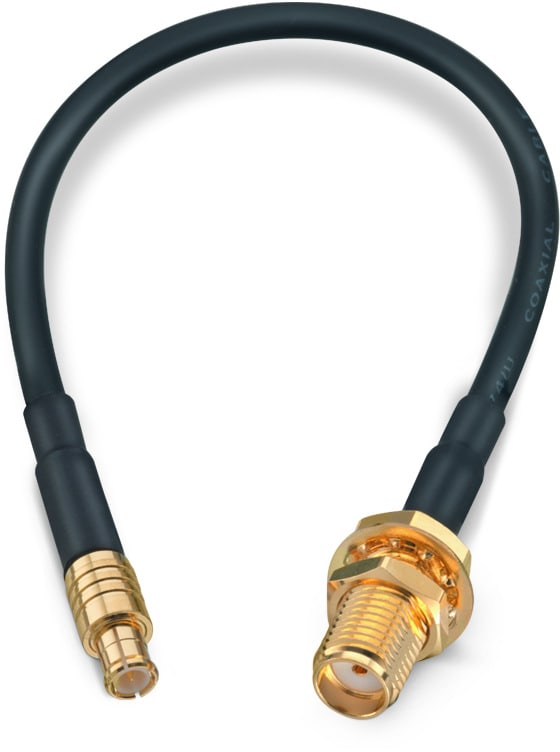

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length
Material Properties
CableRG-174/U
General Information
Operating Temperature-20 °C up to +80 °C
Cable TypeFlexible
Cable ShieldingBraid
Connector Type 1SMA
Connector Type 2MCX
Gender 1Jack
Gender 2Plug
Orientation Type 1Straight
Orientation Type 2Straight
Mechanical Properties
Min. Bend Radius30 mm

Didn't find the right cable? Configure and request directly

Products

Order Code Data­sheet Downloads Statusf Samples
65503206515303SPEC
3 files

CAD files
ZIP

Download all 3 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. DC~1 GHz
Order Code Data­sheet
65503206515303SPEC
Samples
