WA-HST Heat Shrink Tube, +135°C / 2:1 on Small Reels

WA-HST Heat Shrink Tube, +135°C / 2:1 on Small Reels

Applications

  • Excellent to cover irregular shapes and elements
  • Strong resistance to common liquids and solvents

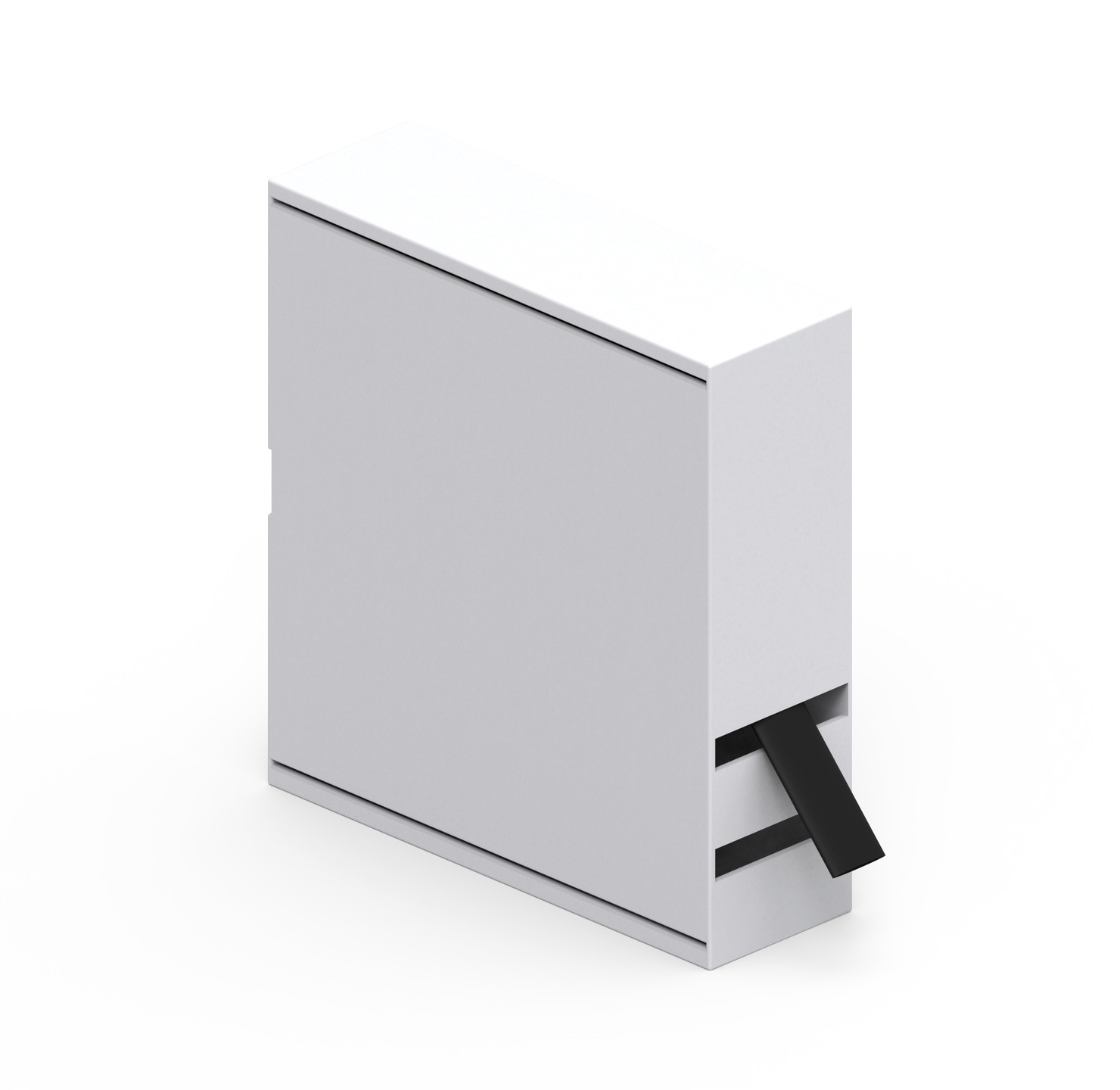

  • Small reels in a carton box for easy handling
General Information
ColorBlack
Rate of Shrinking2:1
Shrink Temperature+90 °C up to +200 °C
Operating Temperature-55 °C up to +135 °C
Withstanding Voltage20 kV/mm
Specific Flow Resistance1012
MaterialPolyolefin, flame retardant

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Qty.
Ø ID before shrinkage(mm)
Ø ID after shrinkage(mm)
t max. after shrinking(mm)
Rate of Shrinking
Modification of Length after Shrinking
Withstanding Voltage(kV/mm)
Samples
7718012
1, 1.2 mm, 0.6 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage1.2 mm
Inner Diameter after shrinkage0.6 mm
t max. after shrinking0.41 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718016
1, 1.6 mm, 0.8 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage1.6 mm
Inner Diameter after shrinkage0.8 mm
t max. after shrinking0.43 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718024
1, 2.4 mm, 1.2 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage2.4 mm
Inner Diameter after shrinkage1.2 mm
t max. after shrinking0.51 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718032
1, 3.2 mm, 1.6 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage3.2 mm
Inner Diameter after shrinkage1.6 mm
t max. after shrinking0.51 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718048
1, 4.8 mm, 2.4 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage4.8 mm
Inner Diameter after shrinkage2.4 mm
t max. after shrinking0.51 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718064
1, 6.4 mm, 3.2 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage6.4 mm
Inner Diameter after shrinkage3.2 mm
t max. after shrinking0.64 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718095
1, 9.5 mm, 4.8 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage9.5 mm
Inner Diameter after shrinkage4.8 mm
t max. after shrinking0.64 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718127
1, 12.7 mm, 6.4 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage12.7 mm
Inner Diameter after shrinkage6.4 mm
t max. after shrinking0.64 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718190
1, 19 mm, 9.5 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage19 mm
Inner Diameter after shrinkage9.5 mm
t max. after shrinking0.76 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718254
1, 25.4 mm, 12.7 mm
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Packaging Unit1
Inner Diameter before shrinkage25.4 mm
Inner Diameter after shrinkage12.7 mm
t max. after shrinking0.89 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718381
1, 38.1 mm, 19 mm
Downloads–
Status NRNDi| Production is active. Product is not recommended for new design. Expected lifetime: 2-5 years.
Packaging Unit1
Inner Diameter before shrinkage38.1 mm
Inner Diameter after shrinkage19 mm
t max. after shrinking1.02 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm
7718508
1, 50.8 mm, 25.4 mm
Downloads–
Status NRNDi| Production is active. Product is not recommended for new design. Expected lifetime: 2-5 years.
Packaging Unit1
Inner Diameter before shrinkage50.8 mm
Inner Diameter after shrinkage25.4 mm
t max. after shrinking1.14 mm
Rate of Shrinking2:1
Modification of Length after Shrinking±5%
Withstanding Voltage20 kV/mm

Use with

WA-CLUG Tubular Cable Lugs
