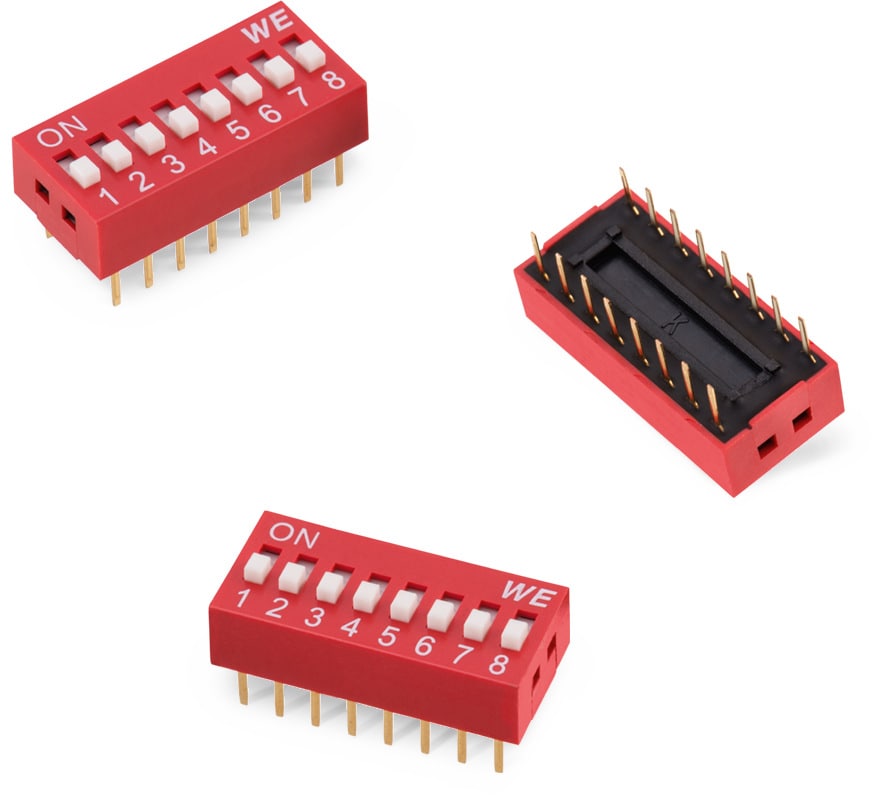

WS-DITV Compact THT with Raised Actuator 2.54 mm | Electromechanical Components | Würth Elektronik Product Catalog

WS-DITV Compact THT with Raised Actuator 2.54 mm

Material Properties
Cover Material	PBT
Cover Flammability Rating	UL94 V-0
Base Material	PBT
Base Flammability Rating	UL94 V-0
Actuator Material	PBT
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	800 g
Electrical Life	2000 Cycles
Actuator Type	Raise Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tube

Products

Filter article data

show article in 0 product lines

article in 0 product lines

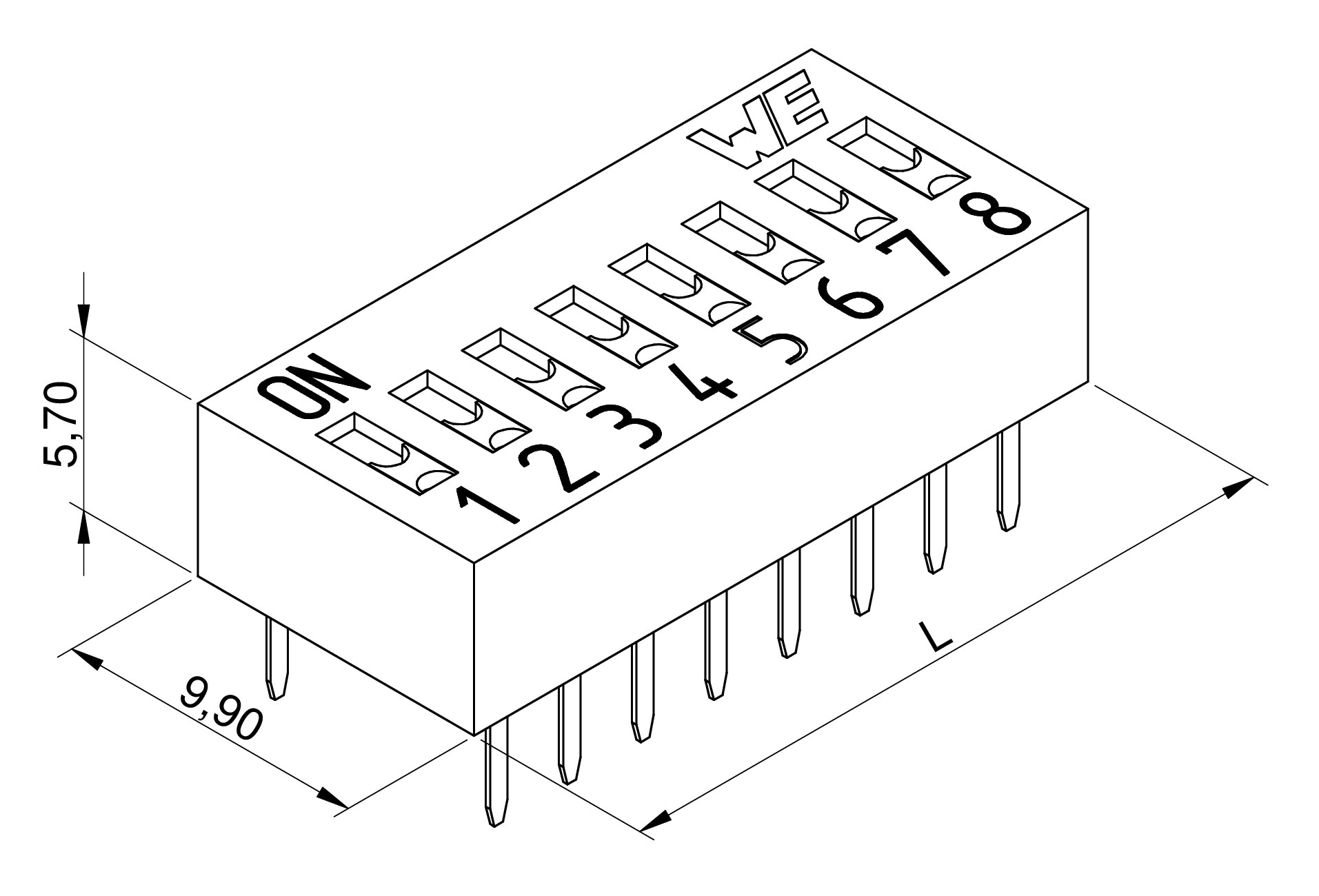

	Order Code	Datasheet	Downloads	Status	Poles	L(mm)	Vaporphase process	Design Kit	SamplesAvailability & Sample
	418117270901	SPEC1, 3.84 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270901 (rev1).pdf \| 53.1 KB IGS 418117270901 (rev1).igs \| 626.9 KB STP 418117270901 (rev1).stp \| 180.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles1	Length3.84 mm	Vaporphase processnot specified	Design Kit –	–Check availability
	418117270902	SPEC2, 6.08 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270902 (rev1).pdf \| 67.3 KB IGS 418117270902 (rev1).igs \| 803.4 KB STP 418117270902 (rev1).stp \| 232.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles2	Length6.08 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
	418117270903	SPEC3, 8.92 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_WS-DITV_418117270903 (rev1).pdf \| 84.2 KB IGS 418117270903 (rev1).igs \| 997.5 KB STP 418117270903 (rev1).stp \| 294.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles3	Length8.92 mm	Vaporphase processnot specified	Design Kit –	–Check availability
	418117270904	SPEC4, 11.16 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270904 (rev1).pdf \| 101 KB IGS 418117270904 (rev1).igs \| 1.3 MB STP 418117270904 (rev1).stp \| 393.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles4	Length11.16 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
	418117270905	SPEC5, 13.7 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270905 (rev1).pdf \| 112.7 KB IGS 418117270905 (rev1).igs \| 1.5 MB STP 418117270905 (rev1).stp \| 450.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles5	Length13.7 mm	Vaporphase processnot specified	Design Kit –	–Check availability
	418117270906	SPEC6, 16.24 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270906 (rev1).pdf \| 129.1 KB IGS 418117270906 (rev1).igs \| 1.7 MB STP 418117270906 (rev1).stp \| 508.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles6	Length16.24 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
	418117270907	SPEC7, 19.08 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270907 (rev1).pdf \| 136.4 KB IGS 418117270907 (rev1).igs \| 1.8 MB STP 418117270907 (rev1).stp \| 555.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles7	Length19.08 mm	Vaporphase processnot specified	Design Kit –	–Check availability
	418117270908	SPEC8, 21.32 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270908 (rev1).pdf \| 154.2 KB IGS 418117270908 (rev1).igs \| 2 MB STP 418117270908 (rev1).stp \| 617.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles8	Length21.32 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
	418117270909	SPEC9, 24.16 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270909 (rev1).pdf \| 168 KB IGS 418117270909 (rev1).igs \| 2.2 MB STP 418117270909 (rev1).stp \| 674.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles9	Length24.16 mm	Vaporphase processnot specified	Design Kit –	–Check availability
	418117270910	SPEC10, 26.4 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270910 (rev1).pdf \| 183.1 KB IGS 418117270910 (rev1).igs \| 2.3 MB STP 418117270910 (rev1).stp \| 737.3 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles10	Length26.4 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
	418117270912	SPEC12, 31.48 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB KIC KiCad_WS-DITV (rev26b).zip \| 6.7 MB CAD files ZIP 3D 3D_418117270912 (rev1).pdf \| 204.2 KB IGS 418117270912 (rev1).igs \| 2.7 MB STP 418117270912 (rev1).stp \| 870.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles12	Length31.48 mm	Vaporphase processnot specified	Design Kit –	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
