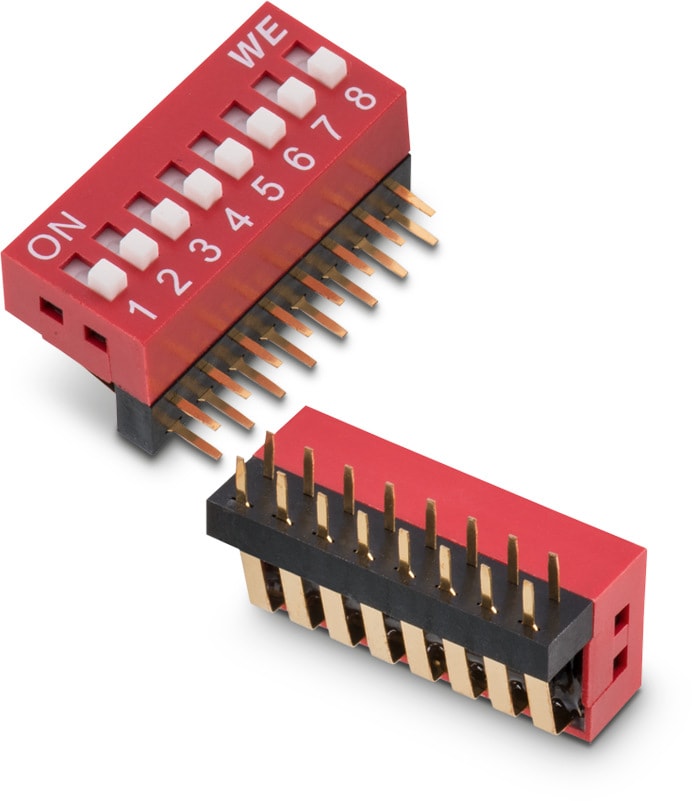

WS-DITU Compact THT Right Angled with Raised Actuator 2.54 mm

Material Properties
Cover Material	PBT
Cover Flammability Rating	UL94 V-0
Base Material	PBT
Base Flammability Rating	UL94 V-0
Actuator Material	PBT
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	800 g
Electrical Life	2000 Cycles
Actuator Type	Raise Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tube

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Poles	L(mm)	Vaporphase process	Design Kit	SamplesAvailability & Sample
418217270902A	SPEC2, 6.08 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB KIC KiCad_WS-DITU (rev26b).zip \| 1.8 MB CAD files ZIP 3D 418217270902A_V2 (rev1).pdf \| 126.9 KB IGS 418217270902A_V2 (rev1).iges \| 2 MB STP 418217270902A_V2 (rev1).stp \| 853 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles2	Length6.08 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
418217270903A	SPEC3, 8.92 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB KIC KiCad_WS-DITU (rev26b).zip \| 1.8 MB CAD files ZIP 3D 418217270903A_V2 (rev1).pdf \| 164.2 KB IGS 418217270903A_V2 (rev1).igs \| 2.5 MB STP 418217270903A_V2 (rev1).stp \| 1 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles3	Length8.92 mm	Vaporphase processnot specified	Design Kit –	–Check availability
418217270904A	SPEC4, 11.16 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB KIC KiCad_WS-DITU (rev26b).zip \| 1.8 MB CAD files ZIP 3D 418217270904A_V2 (rev1).pdf \| 192.9 KB IGS 418217270904A_V2 (rev1).iges \| 3 MB STP 418217270904A_V2 (rev1).stp \| 1.3 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles4	Length11.16 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
418217270906A	SPEC6, 16.24 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB KIC KiCad_WS-DITU (rev26b).zip \| 1.8 MB CAD files ZIP 3D 418217270906A_V2 (rev1).pdf \| 251.3 KB IGS 418217270906A_V2 (rev1).iges \| 3.9 MB STP 418217270906A_V2 (rev1).stp \| 1.7 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles6	Length16.24 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
418217270908A	SPEC8, 21.32 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB KIC KiCad_WS-DITU (rev26b).zip \| 1.8 MB CAD files ZIP 3D 418217270908A_V2 (rev1).pdf \| 300.7 KB IGS 418217270908A_V2 (rev1).iges \| 4.7 MB STP 418217270908A_V2 (rev1).stp \| 2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles8	Length21.32 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
418217270910A	SPEC10, 26.4 mm, not specified	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB KIC KiCad_WS-DITU (rev26b).zip \| 1.8 MB CAD files ZIP 3D 418217270910A_V2 (rev1).pdf \| 363.5 KB IGS 418217270910A_V2 (rev1).iges \| 5.6 MB STP 418217270910A_V2 (rev1).stp \| 2.4 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles10	Length26.4 mm	Vaporphase processnot specified	Design Kit 499001	–Check availability
